General information
2
The SINAMICS V90 drives are available in two variants, 400 V variant and 200 V variant.
The 200 V variant is available in four frame sizes: FSA, FSB, FSC, and FSD. Frame sizes A,
B, and C are used on the single phase or three phase power network while frame size D is
used on the three phase power network only.
The 400 V variant is also available in four frame sizes: FSAA, FSA, FSB, and FSC. All the
frame sizes are used on three phase power network only.
2.1
Scope of delivery
2.1.1
Drive components

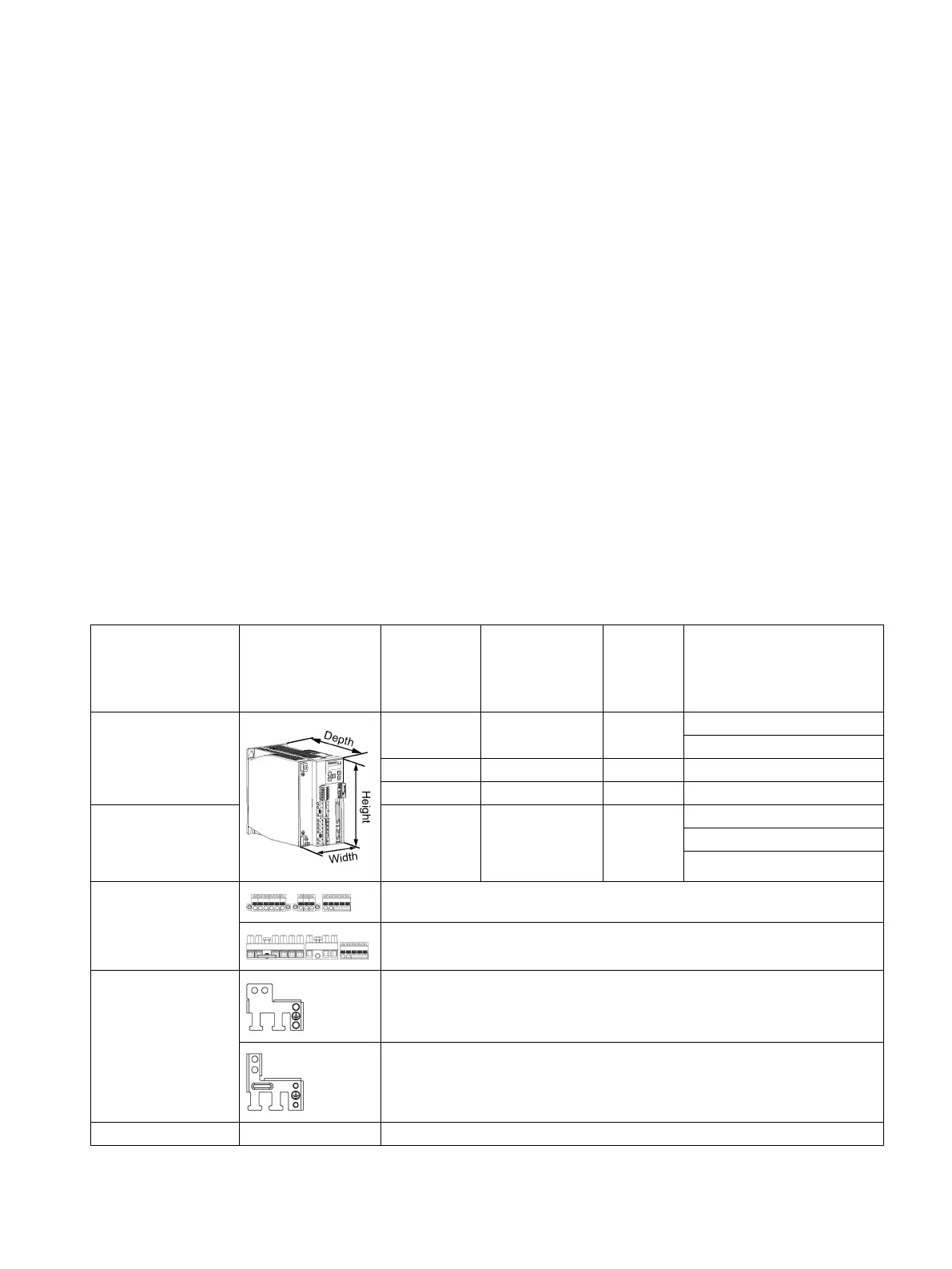

Components in SINAMICS V90 200 V variant drive package
Component
Illustration
Rated power
(kW)
Outline dimen-
sion
(Width x Height x
Depth, mm)
Frame
size
Article number
SINAMICS V90,
single/three-phase,
200 V
0.1/0.2 45 x 170 x 170 FSA
6SL3210-5FB10-1UA2
6SL3210-5FB10-2UA2
0.4
55 x 170 x 170
FSB
6SL3210-5FB10-4UA1
0.75
80 x 170 x 195
FSC
6SL3210-5FB10-8UA0
SINAMICS V90,
three-phase, 200 V
1.0/1.5/2.0 95 x 170 x 195 FSD
6SL3210-5FB11-0UA1
6SL3210-5FB11-5UA0
6SL3210-5FB12-0UA0
Connectors
For FSA and FSB
For FSC and FSD
Shielding plate For FSA and FSB
For FSC and FSD
User documentation
Information Guide
English-Chinese bilingual version

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
