Siemens SINAMICS V90 User Manual

General information
2.5 Accessories
SINAMICS V90, SIMOTICS S-1FL6
48 Operating Instructions, 04/2019, A5E36037884-007

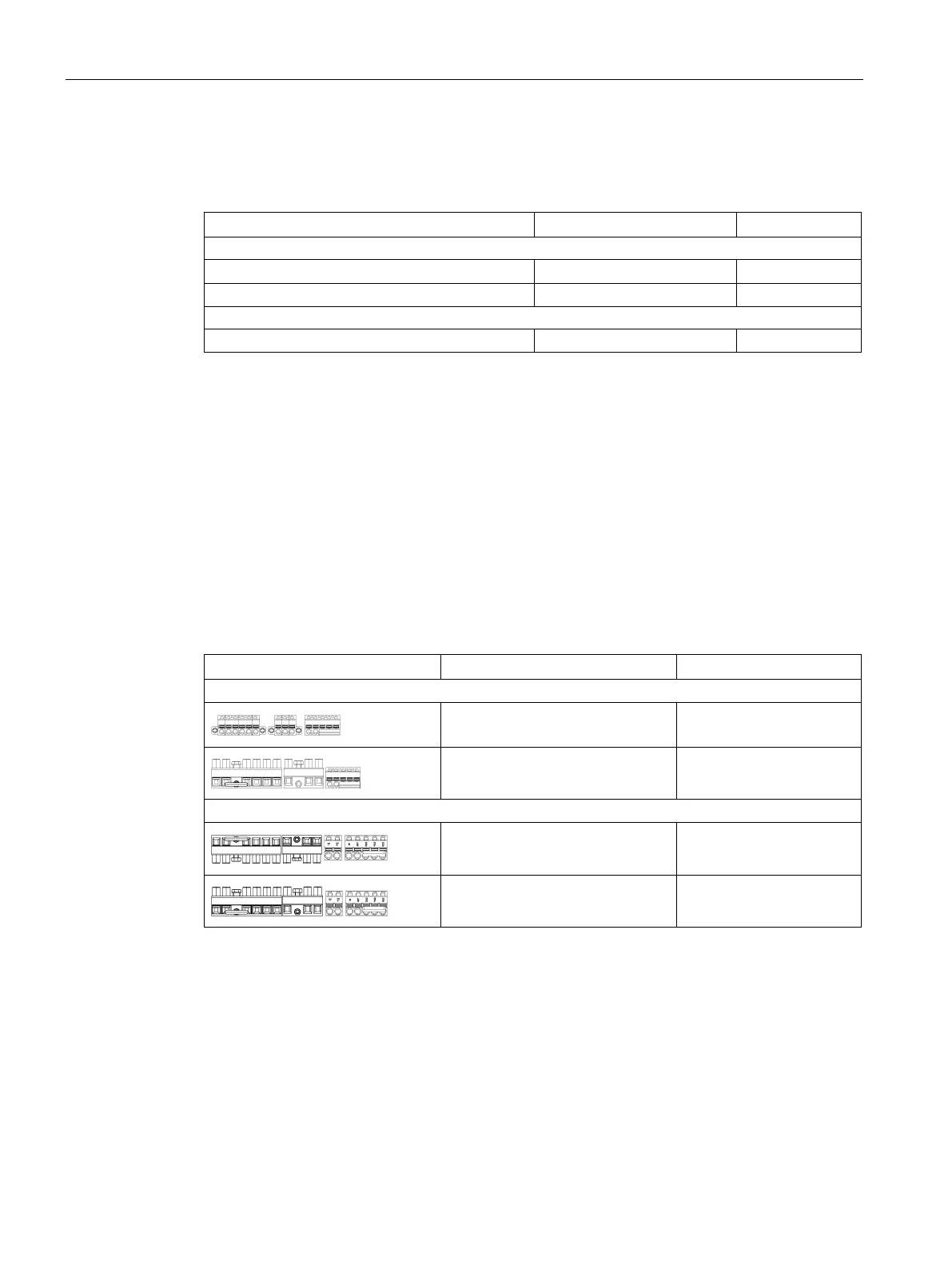

2.5.2
Setpoint cables and connectors
The cable is used to connect the drive to a controller
Name
Article number
Length (m)
Option 1
Setpoint connector (50 pins) 6SL3260-2NA00-0VA0 -
Setpoint cable (50 pins)
6SL3260-4NA00-1VB0
1
Option 2
Setpoint cable with terminal block (50 pins)
1)
6SL3260-4NA00-1VA5
0.5
1)
Make sure that you connect a terminal block according to the pin definitions of interface X8 on the
existing SINAMICS V90 servo drive.
The wire color of the setpoint cable exposed side and X8 pin definitions, see Section
“Control/status interface - X8 (Page 119)”.
2.5.3
Connectors used on the drive front panel
If you need a new connector that used on the drive front panel, you can order a connector kit
from Siemens.
Connector kits
Illustration
Used for (SINAMICS servo drive)
Article number
200 V variant
FSA, FSB 6SL3200-0WT02-0AA0
FSC, FSD 6SL3200-0WT03-0AA0
400 V variant
FSAA 6SL3200-0WT00-0AA0
FSA 6SL3200-0WT01-0AA0
1)
You can obtain the connectors for SINAMICS V90 400V servo drives of FSB and FSC from the
connector kits for SINAMICS V90 400V servo drives of FSAA or FSA.

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
