Siemens SINUMERIK 808D Operating Guide

Operating and Programming — Milling Page 10 808D
Switch On
and
Referencing
s
Step 3
After completing the referencing
procedure for all axes, the refer-
enced symbol is displayed next to
the axis identifier.
End
After returning to JOG mode, use
the axis traversing keys to move the
machine manually.
The machine can now be operated
in JOG mode.
During normal operation (JOG),the
referenced symbol is not shown on
the screen.
After power on, the machine must first
be referenced!

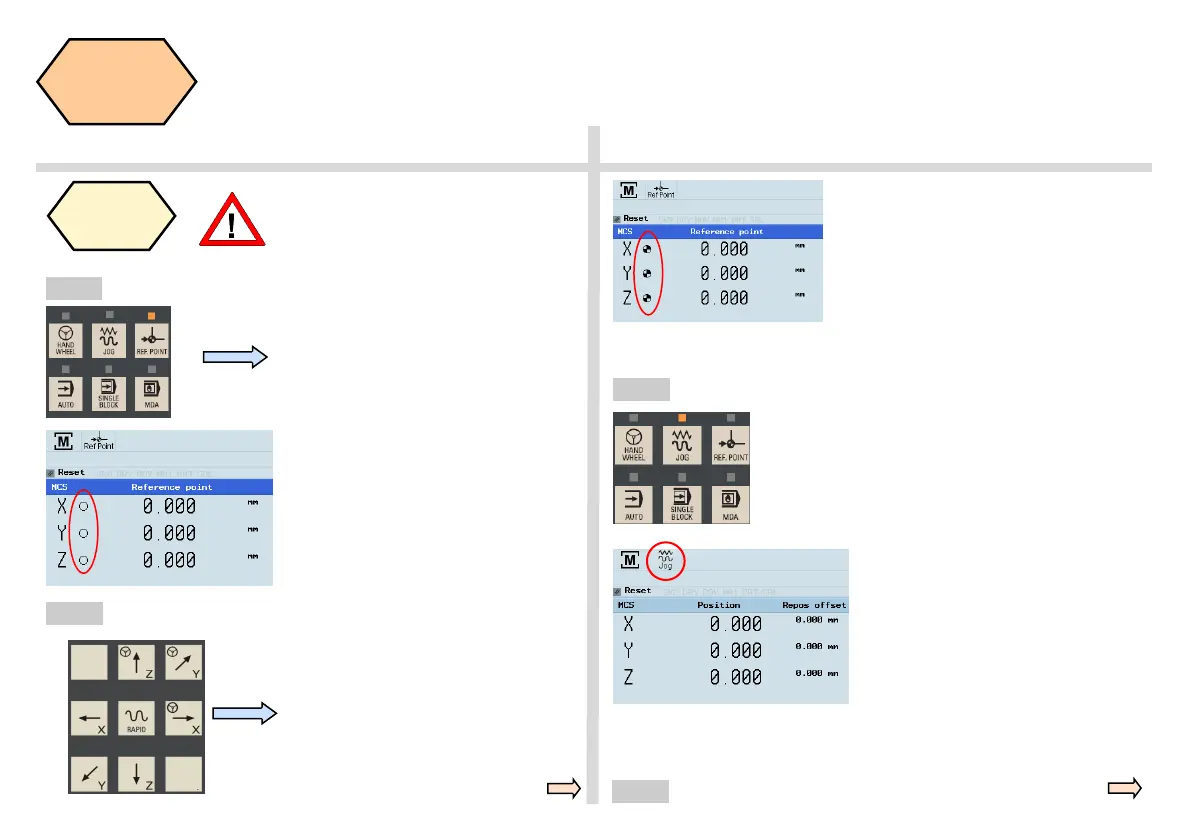

Step 1
After power on, the machine will be
in the reference point approach
mode (default).
If the axis is not referenced, the non-
referenced symbol (circle) is dis-
played between the axis identifier
and the value.
Step 2
The axes are referenced with the
corresponding axis traversing keys.
The traversing direction and keys
are specified by the machine manu-
facturer.
Reference
the
machine
SEQUENCE
