Siemens SINUMERIK 808D Operating Guide

Operating and Programming — Milling Page 58 808D
Test
Program
s

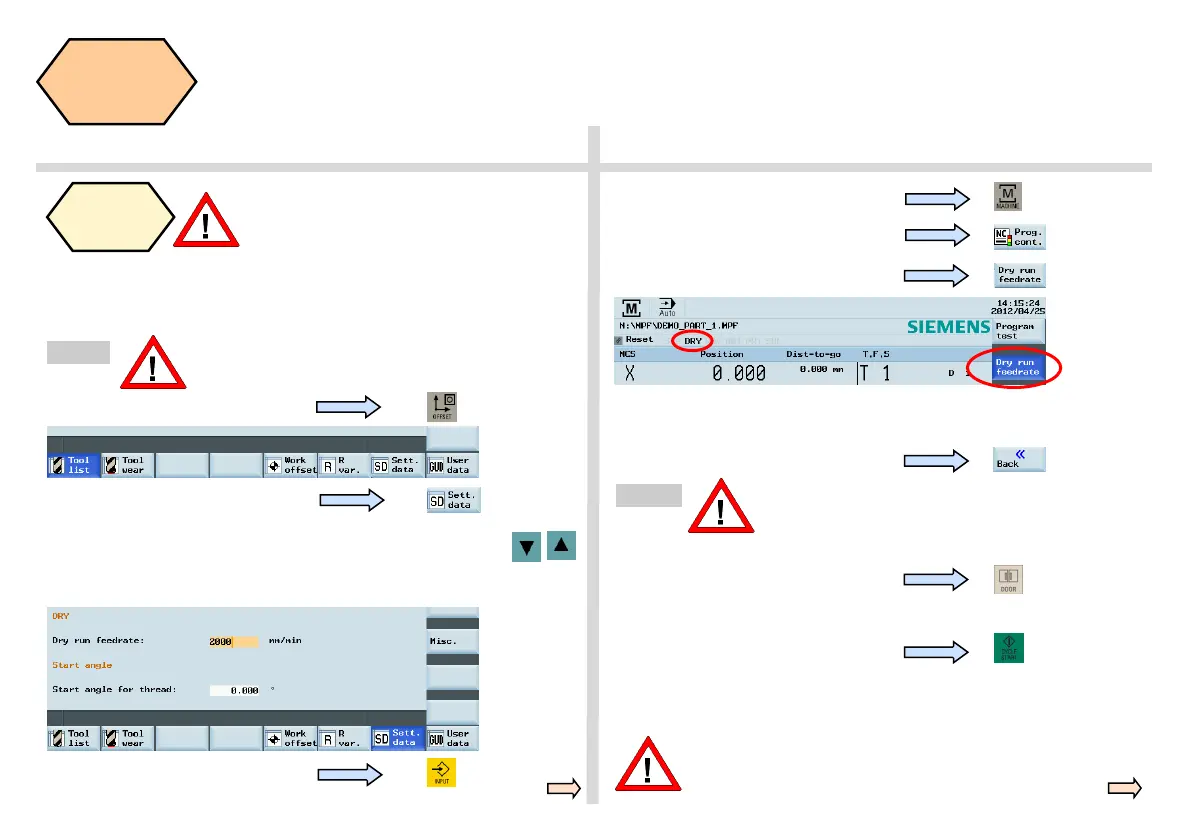

SEQUENCE
Step 1
The data in the “Dry run feedrate” must first be set
and checked!
Press the “Offset” key on the PPU.
Press the “Sett. data” SK on the PPU.
Use the traversing key to move to the required position. The
position is now highlighted.
Enter the required feedrate in mm/min, enter “2000 ” in the example.
Press the “Input” key of the PPU.
Press the “Machine” key on the PPU.
Press the “Prog. cont.” SK on the PPU.
Make sure the feedrate override on the MCP is 0%.
Press “Door” on the MCP to close the
door of the machine. (If you don’t use
this function, just close the door in the
machine manually.)
Turn the feedrate override gradually to
the required value.
Press “CYCLE START” on the MCP to
execute the program.
Note: The “DRY” symbol is shown and the “Dry run feedrate” SK is
highlighted in blue.
Press the “Back” SK on the PPU.
Before executing the “Dry Run”, please
change the offset value appropriately for
the real workpiece size in order to avoid
cutting the real workpiece during the dry
run and avoid unnecessary danger!
Step 2
Press the “Dry run feedrate” SK on the
PPU.
Note: The following operation is based on the finished “program execution”
After finishing the dry run, please turn the changed offset
back to the original value in order to avoid affecting the
actual machining!
Dry Run
