Configuring the settings
6
6.1 Configuration using the "Consul" software
In the local service mode, you set the basis function and configure the server.
The configuration is described below, e.g. using the "Consul" software.
Prerequisite
To make settings in Consul, you need a token. This token is generated at the end of the setup.
Additional information can be found in the following chapter: Installing the server setup
(Page 74).
Opening Consul

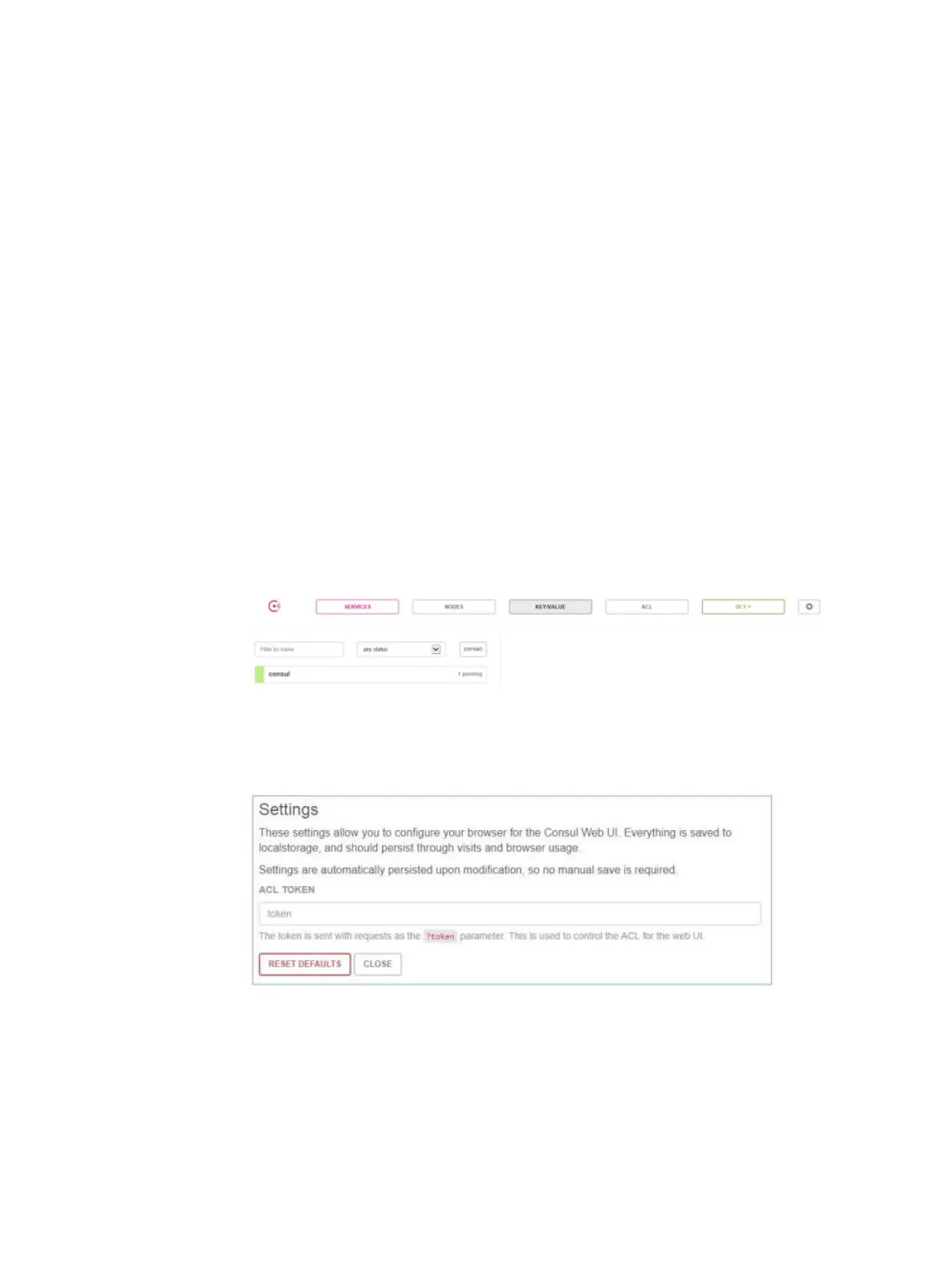

1. Open the browser on the server and enter the following link: http://localhost:8500/ui.
The start page is opened.
Click on the "Edit" icon in the upper right section of the window.
2. The "Settings" window opens.
– Enter the token that was generated during the setup in the "ACL TOKEN" field.
– Click the "CLOSE" button.
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
Installation Manual, 12/2019, A5E44672080B AE 127
