Figure 1

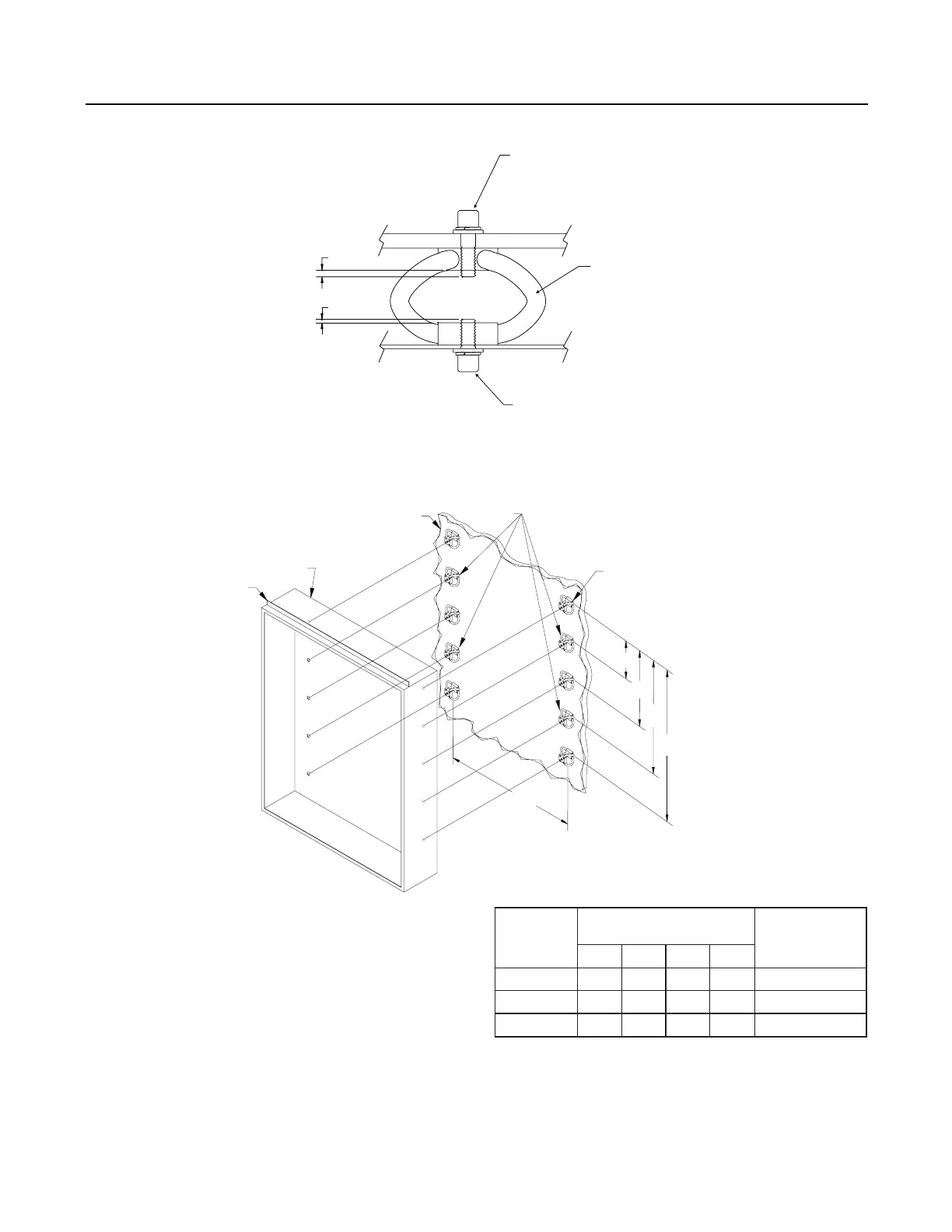

VIBRATION ISOLATOR DETAIL: COAST GUARD APPLICATION
MAX
2 THREADS
BULK HEAD
VIBRATION
ISOLATOR
MAX
2 THREADS
#1/4-20 SOCKET HEAD
CAP SCREW 3/4" LONG
#1/4 FLAT WASHER
#1/4 INTERNAL LOCKWASHER
(USE FLAT WASHERS UNDER
HEAD TO MEET MAX 2
THREAD REQUIREMENT)
#1/4-20 SOCKET HEAD CAP
SCREW 1/2" LONG
#1/4 FLAT WASHER
#1/4 INTERNAL LOCKWASHER
Section III — Equipment Descriptions and Functions
Note:
1. Prior to mounting enclosure EA-35, drill four new
5/16 inch diameter holes located vertically at the A
and C dimensions, in addition to redrilling the
existing mounting holes to 1/2 inch.
Figure 2
MOUNTING DIAGRAM FOR EA-32, -33, AND -35 ENCLOSURES
FOR COAST GUARD APPLICATION
A
B
C
D
ISOLATOR
BULKHEAD
DRIP-PROOF
SHROUD
EA-32, -33 or -35
EA-35 ONLY
20 7/8”
ERUSOLCNE
EZIS
RETNEC
)SEHCNI(ECNATSID
ROTALOSIFO.ON
DERIUQERSTIK
ABCD
23 ——— ½024
33—½51—136
533162932501
Note:
The VIK-1 Kit can only be used
on bulkheads with a thickness
of no greater than 5/16 inch.
To Next Page
