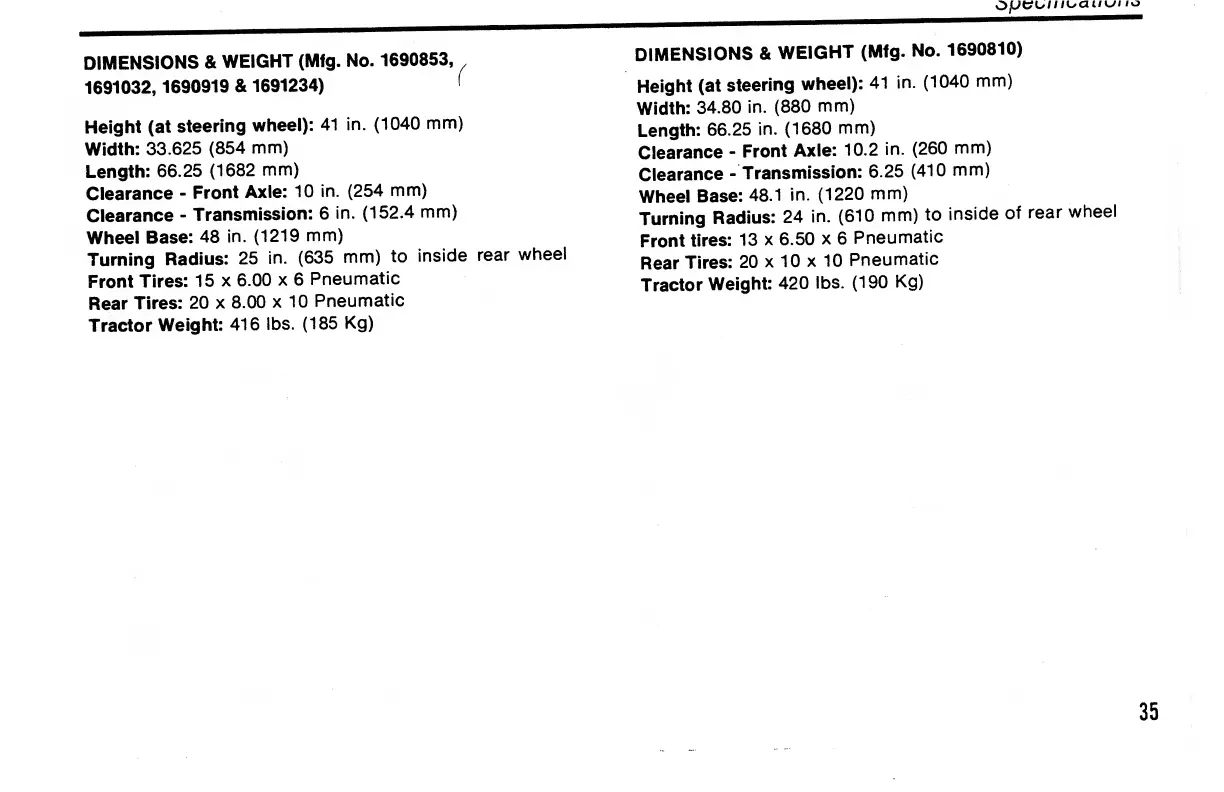

DIMENSIONS
&
WEIGHT
(Mfg.
No.
1690853,
(
1691032,1690919
&
1691234)
1
Height
(at
steering
wheel):
41
in.
(1040
mm)
Width:
33.625
(854
mm)
Length:
66.25
(1682
mm)
Clearance
-
Front
Axle:
10
in.
(254
mm)
Clearance
-
Transmission:
6
in.
(152.4
mm)
Wheel
Base:
48
in.
(1219
mm)
Turning
Radius:
25
in.
(635
mm)
to
inside
rear
wheel
Front
Tires:
15
x
6.00
x
6
Pneumatic
Rear
Tires:
20
x
8.00
x
10
Pneumatic
Tractor
Weight:
416
lbs.
(185
Kg)
DIMENSIONS
&
WEIGHT
(Mfg.
No.
1690810)
Height
(at
steering
wheel):
41
in.
(1040
mm)
Width:
34.80
in.
(880
mm)
Length:
66.25
in.
(1680
mm)
Clearance
-
Front
Axle:
10.2
in.
(260
mm)
Clearance
-
Transmission:
6.25
(410
mm)
Wheel
Base:
48.1
in.
(1220
mm)
Turning
Radius:
24
in.
(610
mm)
to
inside
of
rear
wheel
Front
tires:
13
x
6.50
x
6
Pneumatic
Rear
Tires:
20
x
10
x
10
Pneumatic
Tractor
Weight:
420
lbs.
(190
Kg)
35
