Simplicity LTH Series User Manual

Troubleshooting

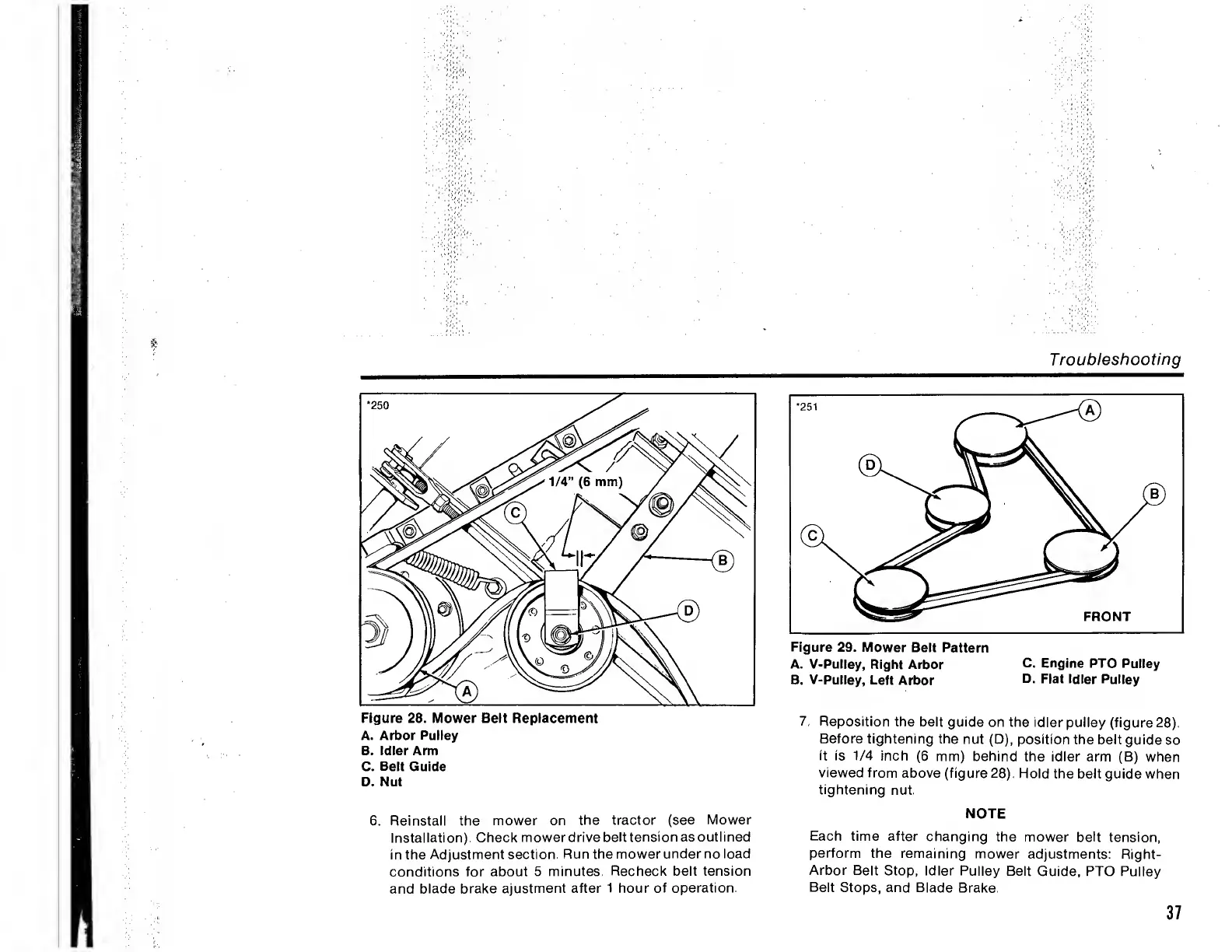

A. Arbor Pulley
B. Idler Arm
C. Belt Guide
D. Nut
6, Reinstall the mower on the tractor (see Mower
Installation). Check mowerdrive belt tension asoutlined
in the Adjustment section. Run the mower under no load
conditions for about 5 minutes. Recheck belt tension
and blade brake ajustment after 1 hour of operation.
Figure 29. Mower Belt Pattern
A. V-Pulley, Right Arbor C. Engine PTO Pulley
B. V-Pulley, Left Arbor D. Flat Idler Pulley
7. Reposition the belt guide on the idler pulley (figure 28).
Before tightening the nut (D), position the belt guide so
it is 1/4 inch (6 mm) behind the idler arm (B) when
viewed from above (figure 28). Hold the belt guide when
tightening nut.
NOTE
Each time after changing the mower belt tension,
perform the remaining mower adjustments: Right-
Arbor Belt Stop, Idler Pulley Belt Guide, PTO Pulley
Belt Stops, and Blade Brake.
37
