Remove sticker from sensor window.
The Side Mount unit comes with batteries factory installed and will “wake up” when sticker is removed from sensor window. Please
ensure this is the last step in the installation process and unless the target is a permanent fixture in the sensor’s environment (i.e. a wall
or stall door) it must be removed from the view of the sensor. There is a three minute delay to calibration to allow the installer to clear
from the view of the sensor.
The Side Mount unit calibrates to the surrounding environment once sticker is removed (with three minute delay to allow installer to clear
from the view of the sensor). The unit will exhibit an LED flash pattern as follows:
• GREEN and RED LED flash once, GREEN LED flashes 5 times
• 150 seconds of slow GREEN double flashes
• 10 seconds of fast GREEN double flashes
• 12-15 seconds of fast GREEN flashes (calibration)
• 3 slow GREEN LED flashes indicates calibration is done
• Normal Operation with one flush activation

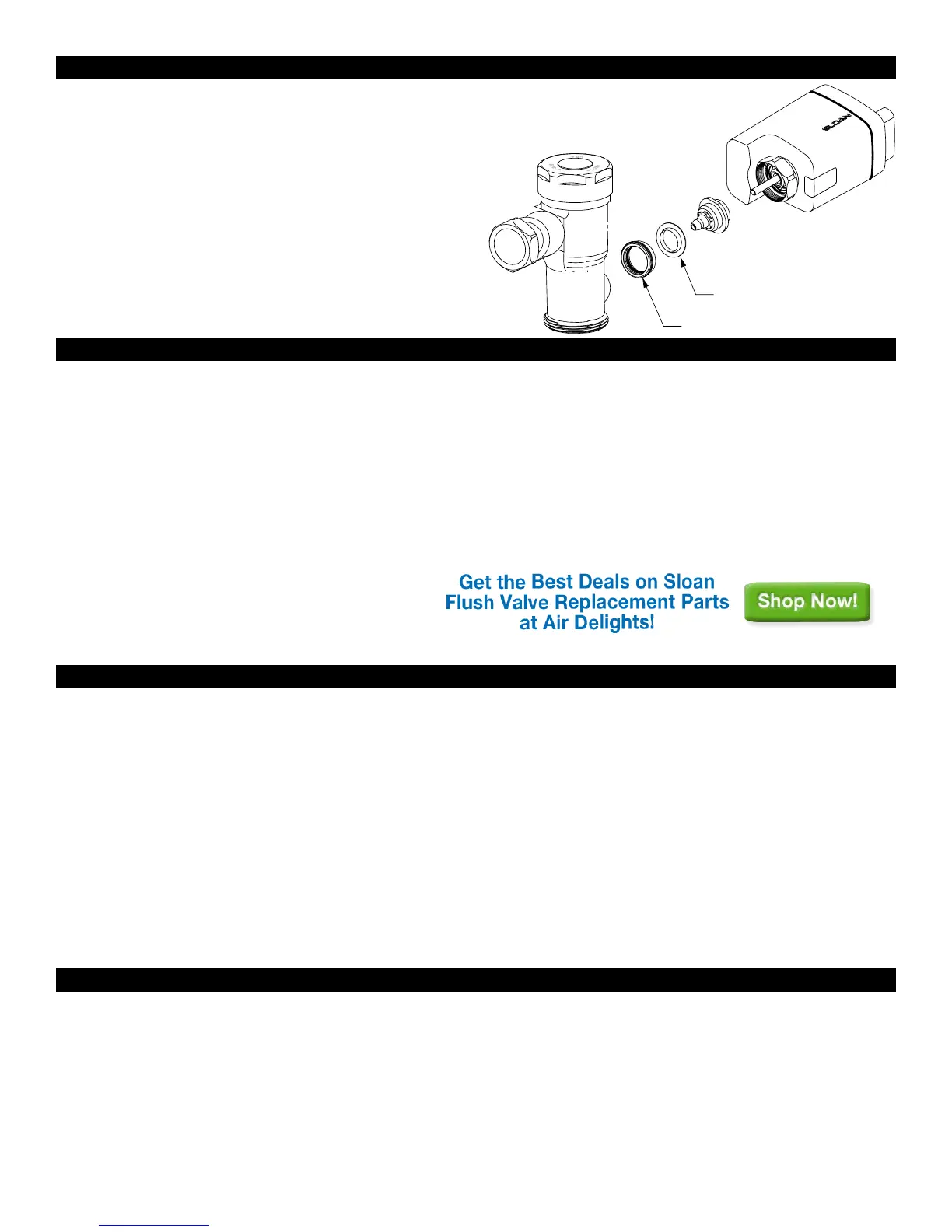

NOTE: For retrofit installation to Sloan GEM•2 flushometer (-G variation).
1. Thread EBV-157 adapter onto valve body.
2. Place EBV-576 GEM•2 gasket on top of sleeve assembly.
3. Mount side mount to valve body and tighten collar nut.
NOTE: For retrofit installation to Zurn flushometer make sure to
re-use the Zurn gasket and place on top of sleeve assembly before
mounting to valve. Contact Sloan Technical Support if the Zurn
gasket is not present or if another is required.
Units are preset at factory in water closet mode.
To change unit from water closet mode to urinal mode, complete the following:
Press and hold the True Mechanical Override (TMO) button for 20-30 seconds.
The unit will exhibit an LED flash pattern as follows:
• For approximately the first 10 seconds there will be no LED flashing.
• For approximately seconds 10-20, both the RED and GREEN LEDs will produce short simultaneous flashes.
• For approximately seconds 20-30, the GREEN LED will flash.
Release the TMO button during the 20-30 seconds when both the RED and GREEN LEDs produce LONG simultaneous flashes and
remove non-permanent items from view of the sensor. The Side Mount unit will now be in urinal mode* and begin calibration. See
Activation.
*Urinal mode provides a shorter sensor range and 1-2 second flush delay.
Press and hold the True Mechanical Override (BLACK) button for 10-20 seconds.
The unit will exhibit an LED flash pattern as follows:
• For approximately the first 10 seconds there will be no LED flashing.
• For approximately seconds 10-20, both the RED and GREEN LEDs will produce short simultaneous flashes.
Release the TMO button during the 10-20 seconds when both the RED and GREEN LEDs produce SHORT simultaneous flashes. The unit
will now ignore targets for 10 minutes to enable the toilet or urinal to be cleaned or serviced. Unit will resume normal operation after 10
minutes or if either button is pushed. Green button will generate a reduced flush and then resume normal operation, black button will
provide a full flush before resuming normal operation.
2 - ACTIVATION
1 - INSTALLATION (FOR EITHER LEFT- OR RIGHT-HAND) - CONTINUED
MODE CHANGE (SINGLE-FLUSH UNITS ONLY)
SERVICE MODE - DUAL-FLUSH AND SINGLE FLUSH UNITS
EBV-576
EBV-157
To Next Page
