2
SENSOR OPERATED FLUSHOMETERS
For all Optima Plus produced from 1992 - 2003
And Regal Pro Optima Plus produced after May, 2003
3
8
7
2C
2D
1
2B
2A
4
5
6

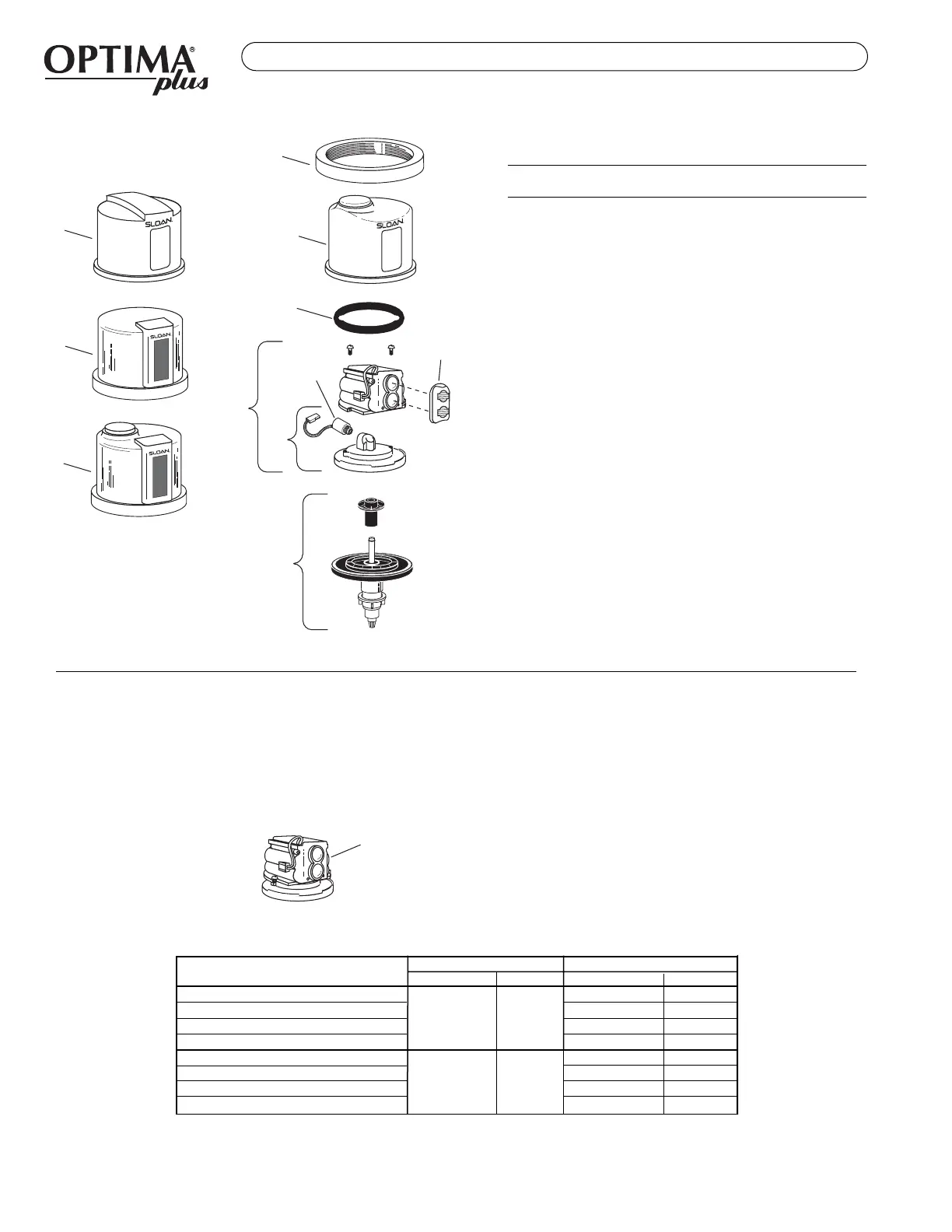

SENSOR MODULE COMPONENT PARTS
Item Code Part
No. No. No. Description
1. 0325804 EBV-14 Locking Ring
3325524 EBV-31-A Locking Ring for Zurn Valve Bodies
2A. 0325806 EBV-11 Cover (Urinal)
2B. 3325538 EBV-38-A Cover w/Override Button (Water Closet)
2C. 3325012 EBV-55-A Metal Cover Assembly (Urinal)
3325017 EBV-1034-A Metal Cover Assembly for Zurn Valve
Body (Urinal)
2D. 3325013 EBV-60-A Metal Cover Assembly with
Override Button (Water Closet)
3325016 EBV-1033-A Metal Cover Assembly w/Override Button
for Zurn Valve Body (Water Closet)
3. 5325011 EBV-67 Cover Gasket — 12 per package
4. SEE CHART BELOW — ELECTRONIC MODULE
5. 0325814 EBV-21-A Inside Cover Assembly
(Includes Solenoid)
6. 3325462 EBV-144-A Isolated Solenoid Operator †
7. SEE CHART on PAGE 3 — Flex Tube Diaphragm Kit
8. 3325537 EBV-46-A Beam Deflector ‡
† The new EBV-144-A Isolated Solenoid replaces the Solenoid used with
the old style Black EBV-26-A Modules only.
For Blue EBV-146-A G2 Modules, use the EBV-136-A (code #3325453)
Isolated Solenoid Operator.
Refer to Page 4 for instructions regarding Solenoid replacement.
‡ Beam deflectors are for use on Black, old style Modules. They are not
required (and will not work) on Blue G2 Modules.
ELECTRONIC MODULE ASSEMBLY CHART
The electronic and optical improvements of the G2 OPTIMA Plus have been
incorporated into the Electronic Modules for use with older OPTIMA Plus
products.
ELECTRONIC
SENSOR
MODULE
There are now only two Electronic Module Assembly variations for
use with older OPTIMA Plus valves:
• EBV-146-A-U Urinal
• EBV-146-A-C Water Closet
This chart cross references the part numbers and code numbers of
our new Electronic Modules over from our old Module numbers.
The EBV-146-A Modules include the Isolated Solenoid, Inner Cover
and Electronic Module.
These Modules are for use with older OPTIMA Plus and Regal Pro
OPTIMA Plus Valves only. Consult Maintenance & Repair Guide
#0816456 for G2 OPTIMA Plus Electronic Modules.
USE TO RREPLACE
New PPart NNo. Code NNo. Old PPart NNo. Code NNo.
Electronic Module — 0.5 gpf/1.9 Lpf Urinal EBV-26-A-U-0.5 3325039
Electronic Module — 1.0 gpf/3.8 Lpf Urinal EBV-26-A-U-1.0 3325540
Electronic Module — 1.5 gpf/5.7 Lpf Urinal EBV-26-A-U-1.5 3325541
Electronic Module — 3.5 gpf/13.2 Lpf Urinal EBV-26-A-U-3.5 3325543
Electronic Module — 1.6 gpf/6.0 Lpf Closet EBV-26-A-C-1.6 3325542
Electronic Module — 2.4 gpf/9.0 Lpf Closet EBV-26-A-C-2.4 3325643
Electronic Module — 3.5 gpf/13.2 Lpf Closet EBV-26-A-C-3.5 3325544
Electronic Module — 4.5 gpf/17.0 Lpf Closet EBV-26-A-C-4.5 3325545
Optima Plus Modules can be identified
by color.
Old style Modules are Black and have a
wire that runs along the side of the unit.
G2 Modules are Blue and have a wire
only on the back of the unit.
Description
Note: EBV-26-A Modules are no longer available. Use the EBV-146-A Module shown.
EBV-146-A-U
0325177
EBV-146-A-C
0325176
