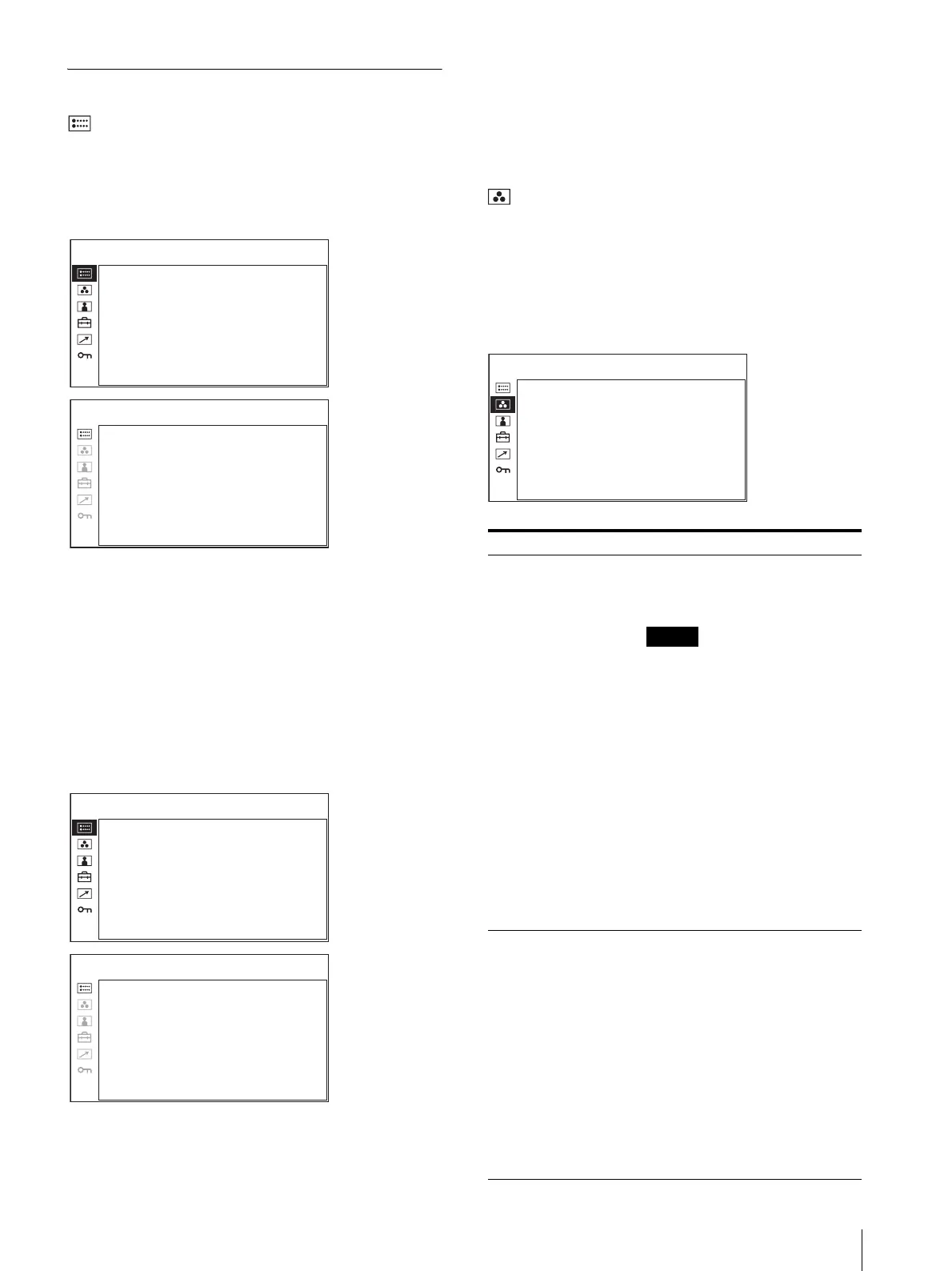

Adjustment Using the Menus
23
Adjusting and Changing the Settings
STATUS menu
The STATUS menu is used to display the current status
of the unit. The following items are displayed:
For the video input
•Signal format
• Color temperature
• HDMI format
•NTSC setup
•Scan mode
• Gamma
•I/P mode
• Flicker free
• Model name and serial number
For the DVI input signal from PC
•Signal format
•fH
•fV
• Color temperature
• HDMI format
• Gamma
• Flicker free
• Model name and serial number
COLOR TEMP/SPACE menu
The COLOR TEMP/SPACE menu is used for adjusting
the picture white balance or color space.
You need to use the measurement instrument to adjust
the white balance.
Recommended: Konica Minolta color analyzer CA-210/
CA-310
FORMAT xxxxxxxxx
xxxxxxxx
COLOR TEMP xxx
HDMI FORMAT xxxxx
NTSC SETUP x
SCAN MODE xxxxxxxx
GAMMA xxx
I/P MODE xxxxxxx
FLICKER FREE xxx
STATUS 1 /2
PVM-2541A xxxxxxx
STATUS 2/2
FORMAT xxx
xxxxxxx
fH xxxxxxx
fV xxxxx
COLOR TEMP xxxx
HDMI FORMAT xxxxx
GAMMA xx
FLICKER FREE xxx
STATUS 1/2
PVM-2541A xxxxxxx
STATUS 2/2
Submenu Setting
COLOR TEMP Selects the color temperature from
among D65, D93 and USER
setting.
Note
If you measure the color
temperatures of different display
types, such as CRT, LCD, or
OLED, by using a common (or
general) color analyzer that is based
on CIE 1931, and adjust the xy
chromaticity to the same value, the
appearance may be different
because of optical spectrum
differences.
To compensate for this difference,
the D65 and D93 settings of the
monitor are adjusted by an offset*.
* The offset value applied (x-0.006,
y-0.011) is based on the Judd's
function to the CIE 1931 (x, y)
value.
MANUAL
ADJUSTMENT
If you set the COLOR TEMP to
USER setting, the item displayed is
changed from black to white, which
means you can adjust the color
temperature.
The set values are memorized.
• ADJUST GAIN: Adjusts the
color balance (GAIN).
• ADJUST BIAS: Adjusts the
color balance (BIAS).
• COPY FROM: If you select D65
or D93, the white balance
data for the selected color
temperature will be copied
in the USER setting.
COLOR TEMP: xxxxxx
MANUAL ADJUSTMENT
ADJUST GAIN:
ADJUST BIAS:
COPY FROM: xxx
COLOR SPACE: x
COLOR TEMP/SPACE
To Next Page
