MVS-8000 System
SYSTEM SETUP
3-3-2. Changing IP Address
The default IP address of the MVS-8000 system can be changed using dipswitch setting on CPU boards.
Device Board Group ID Unit ID
MVS-8000 CA-44 S102 (8bit) S103 (8bit)
MVE-8000 CA-44CF S102 (8bit) S103 (8bit)
CCP-8000 CA-45 S902 (8bit) S901 (8bit)
DCU-8000 CA-47 S754 (8bit) S755 (8bit)

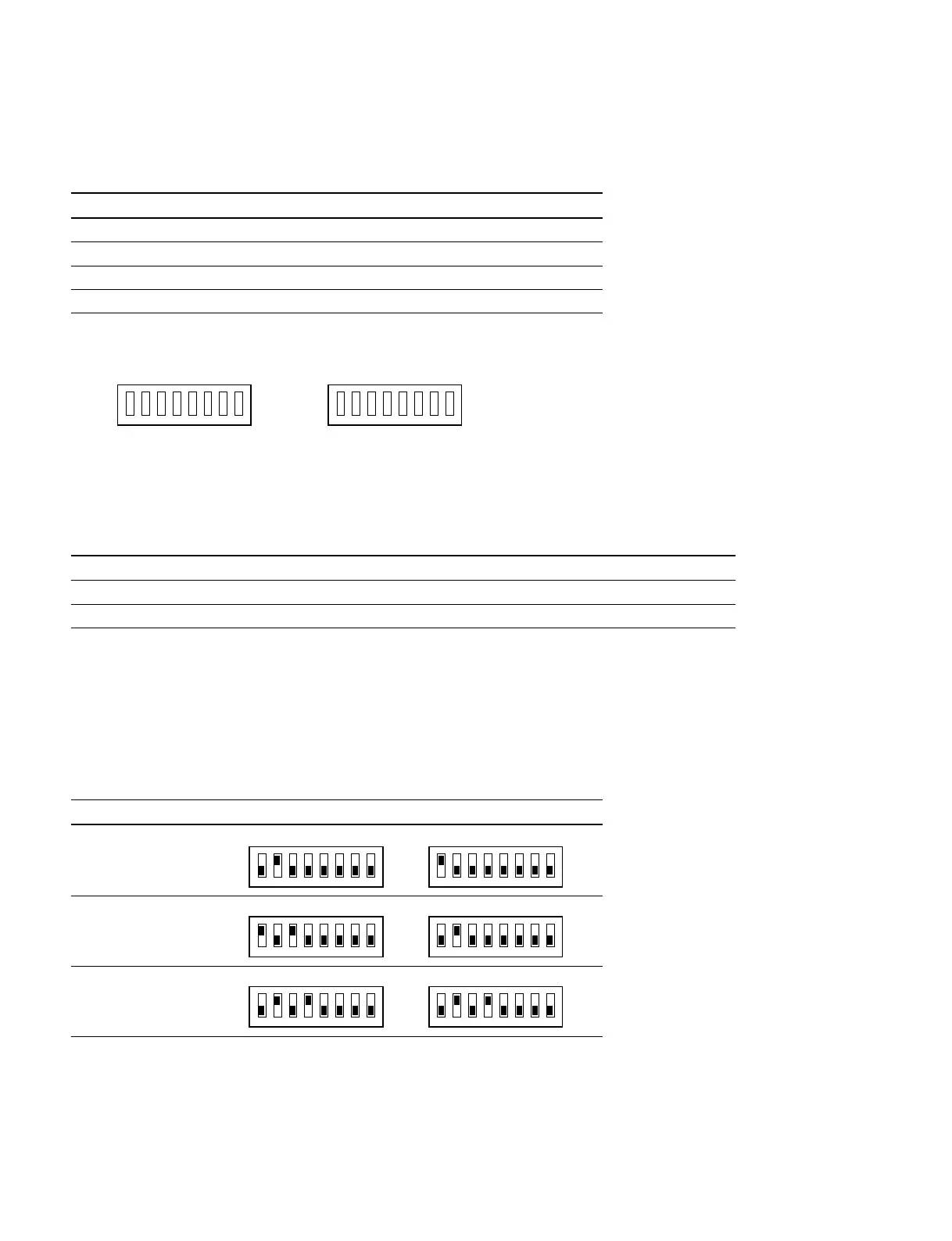

Dipswitch on CPU board
1. Set the DIP switch on each device as you required.
See the bit of each switch (Group ID/Unit ID) in table.
Bit settings
Bit 12345678
Group ID 1 2 4 8 16 32 Control
*
Data
*
Unit ID 1 2 4 8 16 32 64 128
* : These bits are factory use only. Use the bits with the default setting (CLOSE) as shipped from the factory.
The Group ID and Unit ID switch setting determines all of the LAN IP addresses (Control/Data/Peripher-
al LAN).
The Peripheral LAN IP address is made by adding 64 to the Group ID.
The Data LAN IP address is made by adding 128 to the Group ID.
Switcher processor IP address
IP Address Group ID Unit ID
10.2.2.1 (C)
10.130.2.1 (D)
10.5.2.2 (C)
10.133.2.2 (D)
10.10.2.10 (C)
10.138.2.10 (D)
C : Control LAN
D : Data LAN
3-3. IP Address
12345678
Group ID
OPEN
CLOSE
12345678
Unit ID
OPEN
CLOSE
12345678
Group ID
12345678
Unit ID
12345678
Group ID
12345678
Unit ID
12345678
Group ID
12345678
Unit ID
