2-4
DSC-F717

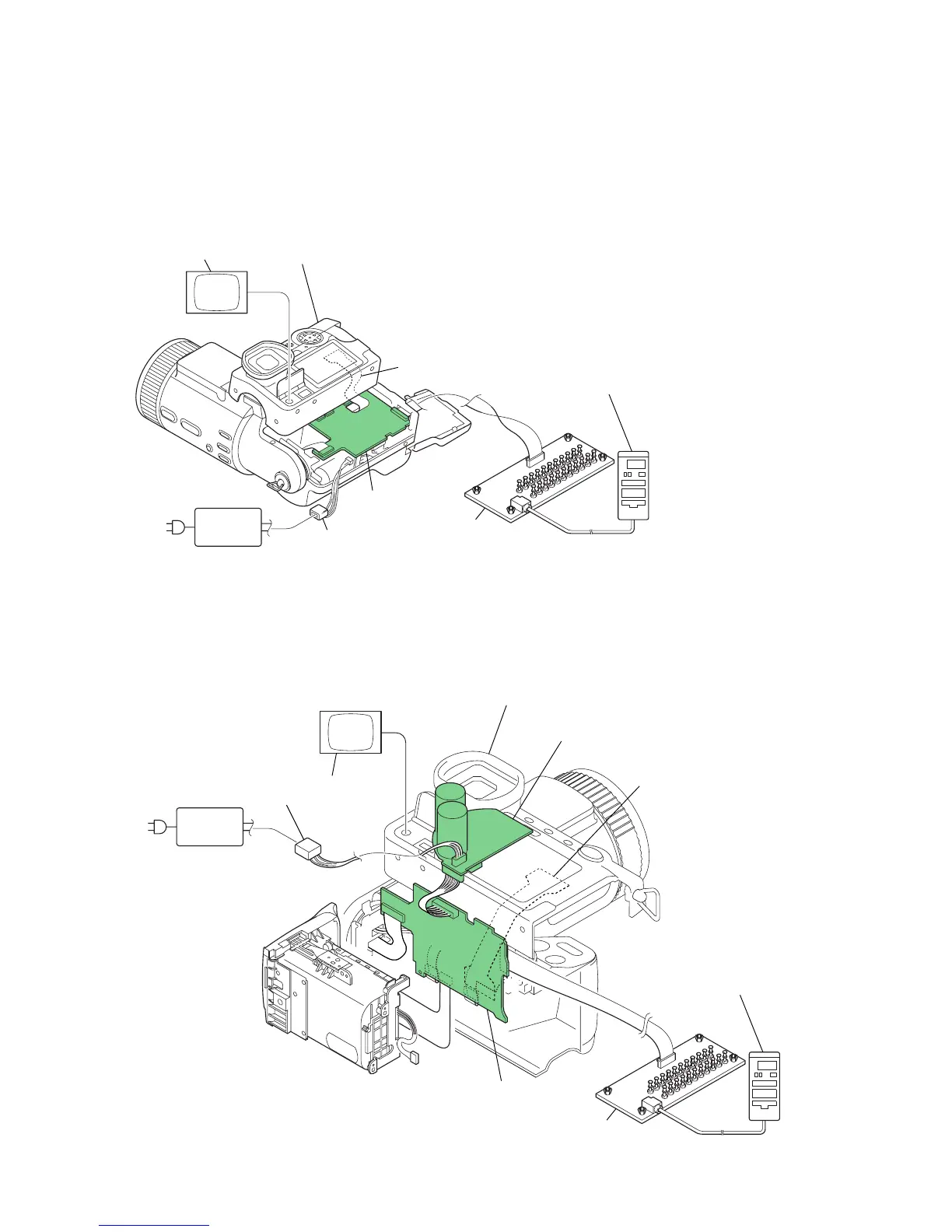

[SERVICE POSITION (FR-194 BOARD: SIDE B)]
1
1
22
22
AC power
adaptor
AC IN
Color monitor
Rear cabinet assembly
FP-591 flexible board
FR-194 board
F
R
-194
DC-IN jack
Adjustment remote
commander
CPC-12 jig
(J-6082-436-A)
Note1: When connecting CPC-12 jig, remove CPC-lid.
Note2: It is necessary to install AL-013 board, PD-179 board and LCD,
before service position.
[SERVICE POSITION (FR-194 BOARD: SIDE A)]
Color monitor
1
22
22
1
AC power
adaptor
AC IN
FP-591 flexible board
BT-015 board
Rear cabinet assembly
FR-194 board
FR-194
DC-IN jack
Adjustment remote
commander
CPC-12 jig
(J-6082-436-A)
BT-015
Note1: When connecting CPC-12 jig, remove CPC-lid.
Note2: It is necessary to install AL-013 board, PD-179 board and LCD,
before service position.

Sony CYBER-SHOT DSC-F717 Specifications

General

Sensor Type	CCD
Effective Pixels	5.0 megapixels
Optical Zoom	5x
Digital Zoom	2x
Aperture Range	f/2.0 - f/2.4
LCD Screen Size	1.8 inches
LCD Screen Resolution	123, 000 pixels
Viewfinder	Electronic
Image Sensor Size	2/3 inch
Lens Type	Carl Zeiss Vario-Sonnar
Camera Type	Digital Still Camera
ISO Sensitivity	100, 200, 400
Storage Media	Memory Stick
Battery Type	NP-FM50
Focal Length	9.7 - 48.5 mm
Focus Range	2 cm (macro)
