6-2
DCR-TRV240/TRV340

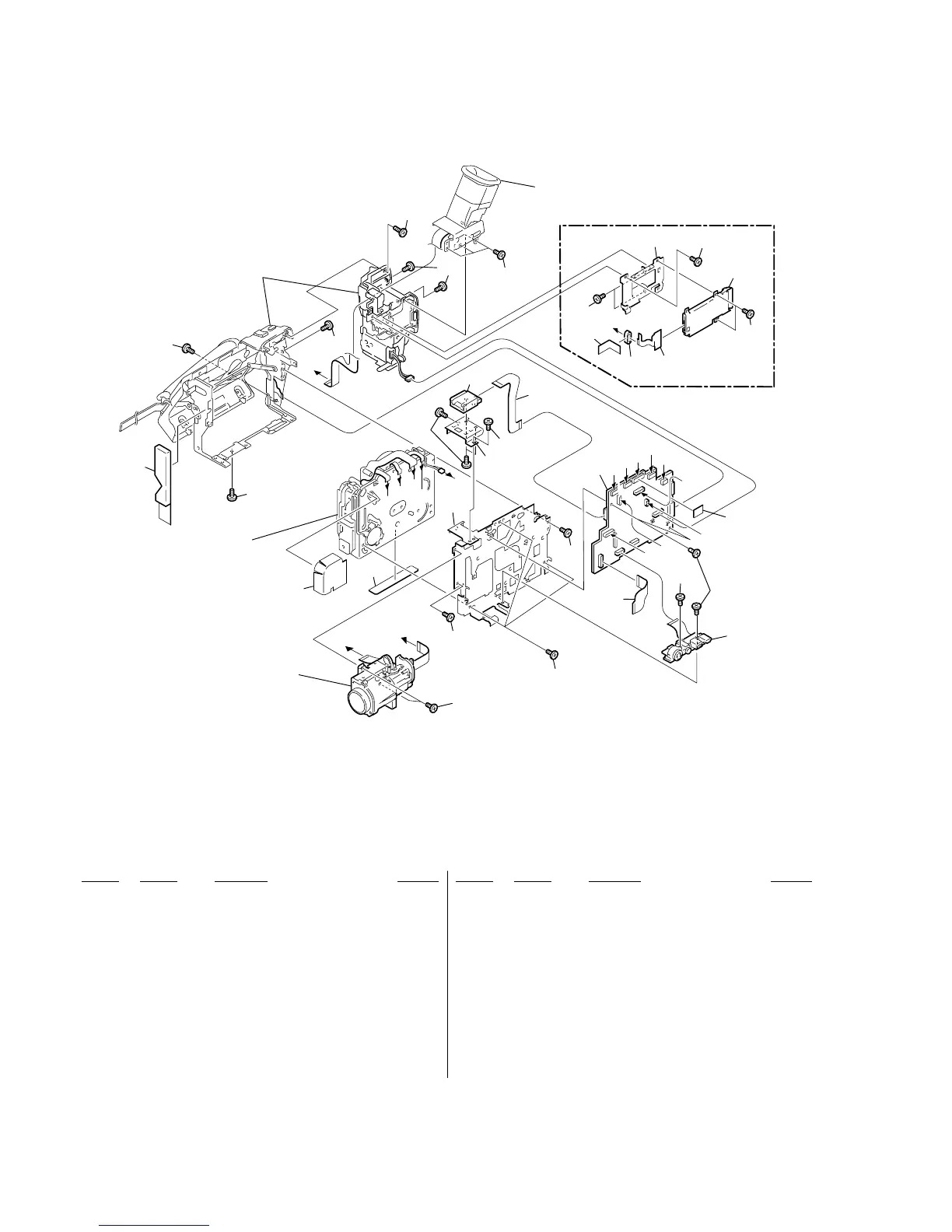

6-1-2. CABINET (L) SECTION-1
VC-276
Board
I
E
F
G
H
E
D
F
G
H
I
D
C
B
A
A
C
Lens section
(See page 6-4)
Mechanism deck
(See page 6-7 to 6-10)
(TRV340)
Cabinet (L) section-2
(See page 6-3)
EVF section
(See page 6-4)
51
51
53
54
51
58
51
66
67
B
59
59
68
59
59
51
51
51
60
51
61
51
51
51
51
65
64
57
56
55
52
62
63
69
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 4-974-725-01 SCREW (M1.7X2.5), P
52 3-072-267-01 FRAME, MD
53 3-065-662-01 LABEL, LS CAUTION
54 3-066-169-01 SHEET, MD
55 3-072-268-01 FRAME, SHOE
56 1-680-118-11 FP-264 FLEXIBLE BOARD
57 1-815-124-11 CONNECTOR, EXTERNAL (HOT SHOE)(TRV340)
57 1-815-124-21 CONNECTOR, EXTERNAL (HOT SHOE)(TRV240)
58 3-072-308-01 COVER, MD
59 3-067-347-01 MI SCREW M2 (H)
60 3-072-273-01 HOLDER, MS (TRV340)
61 1-816-271-11 CONNECTOR, MEMORY STICK 10P (TRV340)
62 1-683-625-11 FP-409 FLEXIBLE BOARD (TRV340)
63 1-500-226-11 BEAD, FERRITE (TRV340)
64 A-7028-802-A VC-276 (NS) BOARD, COMPLETE (SERVICE)
(TRV240)
64 A-7028-804-A VC-276 (NFS) BOARD, COMPLETE (SERVICE)
(TRV340)
65 3-066-759-01 SHEET, VC
66 1-683-623-11 FP-406 FLEXIBLE BOARD
67 1-683-626-21 FP-410 FLEXIBLE BOARD
68 3-065-567-01 TAPPING (M1.7)
69 3-941-343-21 TAPE (A) (TRV340)

Sony DCR-TRV240 Specifications

General

Digital zoom	700 x
Optical zoom	25 x
Image stabilizer	Yes
Focal length range	2.4 - 60 mm
Sensor type	CCD
Total megapixels	0.8 MP
Optical sensor size	1/6 \
Display diagonal	2.5 \
Minimum illumination	4 lx

Weight and Dimensions

Depth	101 mm
Width	85 mm
Height	206 mm
