DSR-2000A/2000AP
3-1. Location of Main Parts

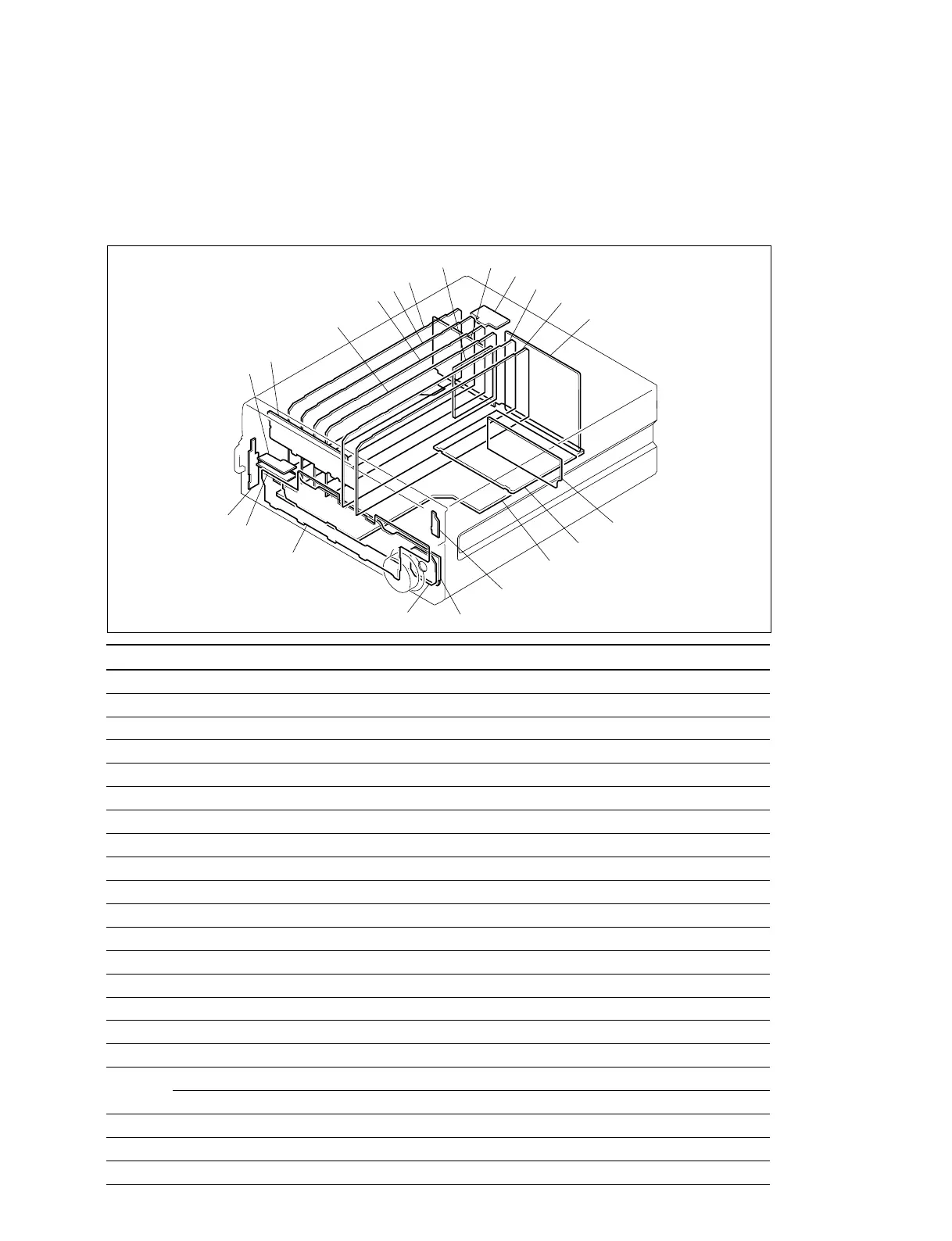

3-1-1. Location of Printed Circuit Boards
No. Board Name Circuit Configuration
1 APR-45 Audio process
2 VPR-62A Analog video input . output process/reference
3 DPR-136 A Digital process
9 DY-22 Fluorescent display board/audio meter/input . output selection
!/ VR-260 Audio REC volume control
!- HP-99 Headphone interface
!= VR-259 Audio PB volume control
![ KY-452 Operation panel
!] PTC-105 Search dial sensor
!\ SW-11/11P Switch
!; SW-17 Remote switch
!' MB-859 Mother board
!, RP-111 RF REC/PB, ATF detection
!. EX-752 Intermediate board
@/ CP-341 Video/remote interface
@- SV-212 Servo/mechanism control
@= SY-278A System control
@[ CN-1968A i.LINK connector board
CN-2858 (DSBK-2020) HD SDI OUT, i.LINK connector board)
@] CP-342 Audio interface
@\ HIF-34 (DSBK-2020) HD up-converter board
@; TX-96A (DSBK-2020) HD SDI intermediate board
