5-1
DSR-PDX10/PDX10P
SECTION 5
REPAIR PARTS LIST
5-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
COVER
COVER

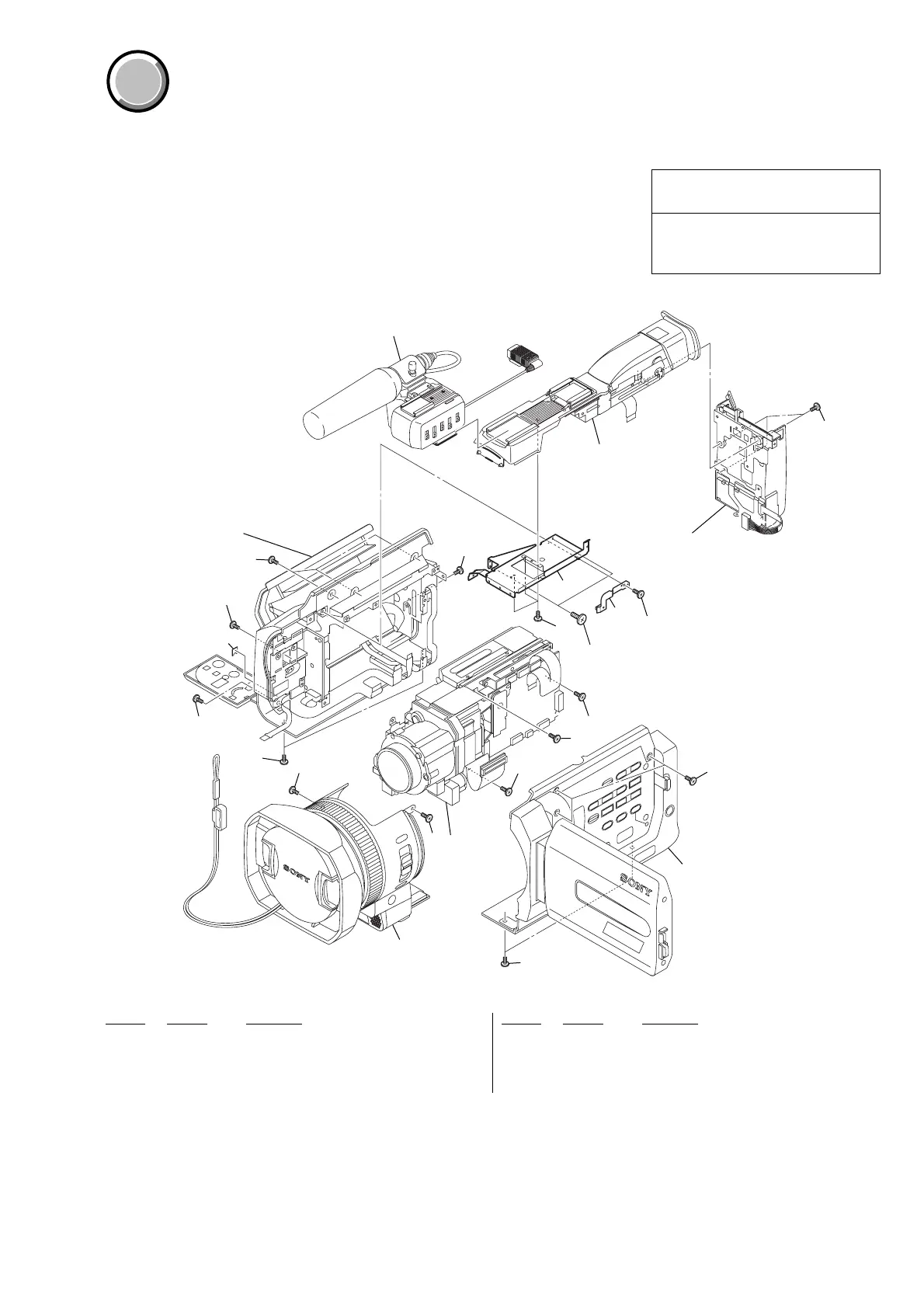

5-1-1. MAIN SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
F panel block
(See page 5-2)
Cabinet (L) block
(See page 5-5)
Battery panel block
(See page 5-9)
MD block
(See page
5-10)
EVF block
(See page 5-8)
Cabinet (R) block
(See page 5-3)
XLR block
(See page 5-7)
1
6
1
1
5
5
1
2
2
2
1
1
1
1
2
4
7
1
3
1 3-989-735-81 SCREW (M1.7), LOCK ACE, P2
2 3-989-859-01 SCREW (M1.7) STEP, HEAD
3 3-713-791-31 SCREW (M1.7X6), TAPPING, P2
4 X-3952-813-1 RETAINER (B) ASSY, MF KNOB
5 3-055-573-21 SCREW (M1.7), LOCK ACE, P2
6 3-076-834-01 SHEET, AF BLIND
7 X-3952-923-1 CHASSIS ASSY, TOP
To Next Page
