HCD-EC68/EC78
9
Note: Follow the disassembly procedure in the numerical order shown below.

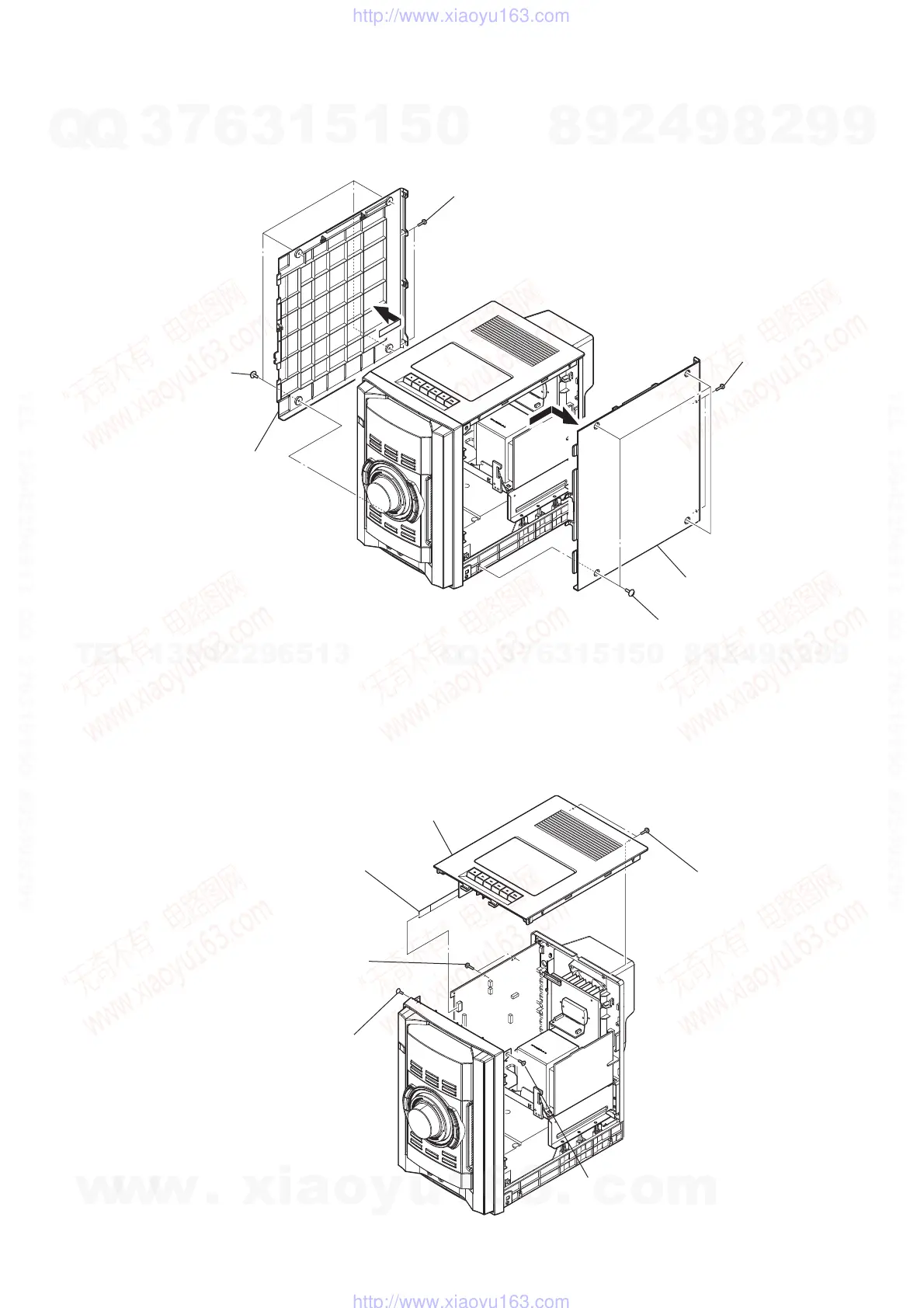

3-2. SIDE PANEL (L)/(R)
3-3. TOP PANEL (EC68: UK MODEL)/TOP PANEL BLOCK (EXCEPT EC68: UK MODEL)
two screws
(BVTP3
×
10)
two screws
(BVTP3
×
10)
four screws
(case3 TP)
side panel (L)
side panel (R)
four screws
(case3 TP)
flexible flat cable (9 core)
(CN606) (except EC68: UK)
top panel (EC68: UK)
top panel block (except EC68: UK)
two screws
(BVTP3
×
10)
two screws
(BVTP3
×
10)
screw
(KTP3
×
10)
screw
(KTP3
×
10)
