HCD-FLX5D/FLX7D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 4-252-032-01 BASE (VOL), ORNAMENT
152 X-4956-331-1 RING (VOL) ASSY
153 4-951-620-01 SCREW (2.6×8), +BVTP
154 1-861-348-11 BLUE LED BOARD
155 1-861-349-11 CD DOOR BOARD
156 1-828-429-11 WIRE (FLAT TYPE) (11 CORE)
157 1-861-352-11 CD DOOR SW2 BOARD
158 X-4954-585-1 BRACKET (PANEL, MOVING) ASSY
159 4-252-036-01 PANEL (AL), MOVING (FLX5D)
159 4-252-036-11 PANEL (AL), MOVING (FLX7D)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-233-14 SCREW +KTP 2.6X6 TYPE2NON-SLIT
#5 7-685-862-09 SCREW +BVTT 2.6×6 (S)
#3
#3
#3
#3
#5
#1
#1
151
152
153
153
153
153
153
154
155
156
157
158
159
not supplied
not supplied
not supplied
not supplied
front panel section
not supplied
not supplied
not supplie
not supplied
not supplied

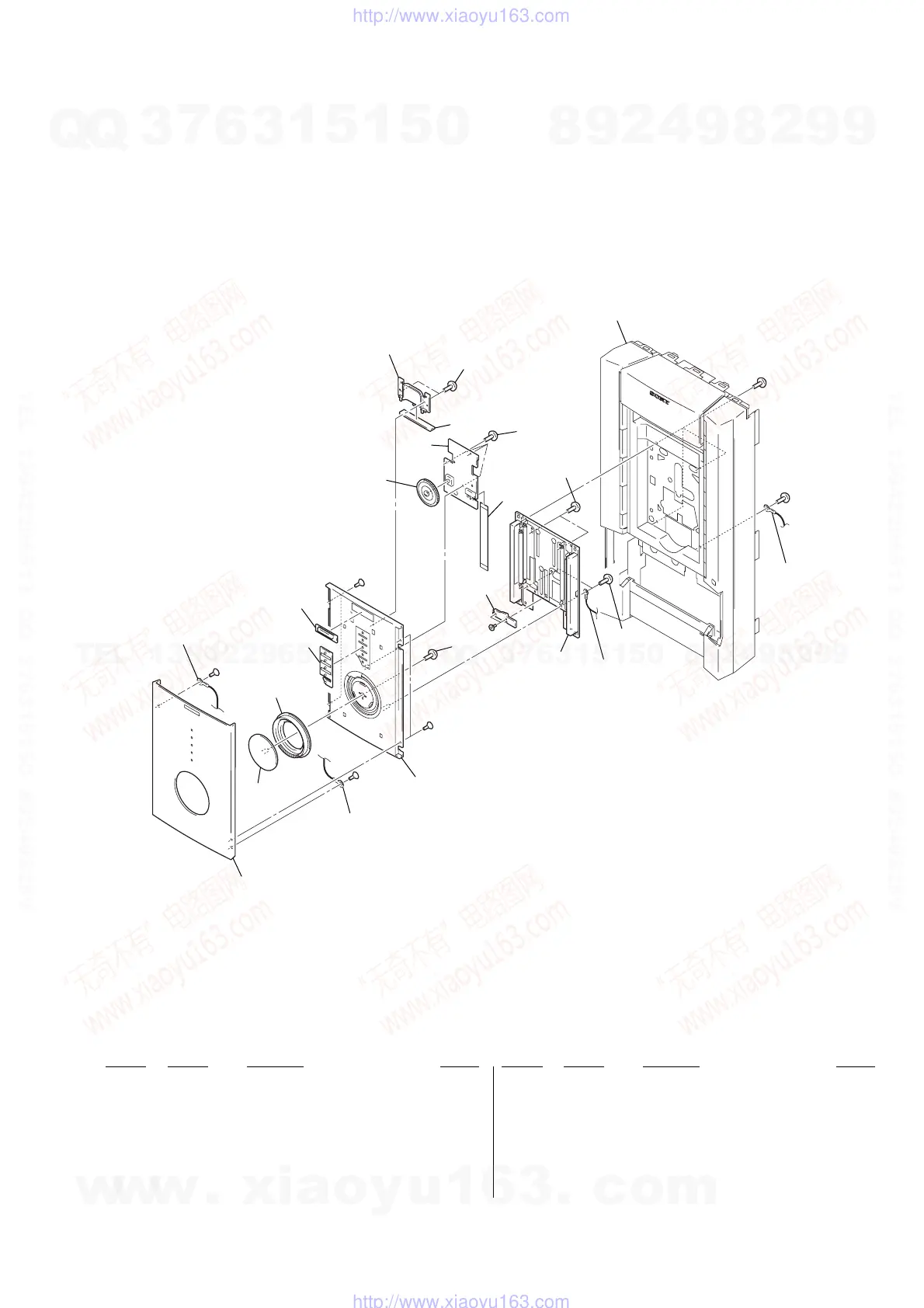

8-4. MOVING PANEL SECTION
