HCD-FLX5D/FLX7D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 4-963-404-21 EMBLEM (5-A), SONY
202 4-252-014-01 WINDOW (FL) (FLX5D)
202 4-252-014-11 WINDOW (FL) (FLX7D)
203 4-252-011-01 PANEL (A), SIDE
204 X-4956-113-1 BUTTON (POWER) ASSY
205 4-252-012-01 PANEL (B), SIDE
206 4-252-024-01 BUTTON (PLAY)
207 4-252-016-01 WINDOW (RM)
208 4-252-017-01 LID (MIC)
209 4-231-432-01 GEAR (D)
210 4-252-051-01 SPRING (LOCK LEVER)
211 4-252-035-01 LEVER, LOCK
212 4-951-620-01 SCREW (2.6×8), +BVTP
213 4-252-010-01 PANEL, FRONT
214 A-4750-813-A PANEL (L) BOARD, COMPLETE
(EXCEPT FLX5D: TH)
214 A-4753-580-A PANEL (L) BOARD, COMPLETE (FLX5D: TH)
215 A-4750-819-A PANEL (R) BOARD, COMPLETE
(EXCEPT FLX5D: TH)
215 A-4753-581-A PANEL (R) BOARD, COMPLETE (FLX5D: TH)
216 1-861-353-11 SIRCS BOARD
217 4-252-025-01 BUTTON (REC)
218 4-231-431-01 BRACKET (DAMPER)
219 4-224-104-11 DAMPER
201
202
210
211
203
212
212
212
212
212
212
212
212
212
204
213
205
214
206
215
207
216
208
217
209
218
219
not supplied
not supplied

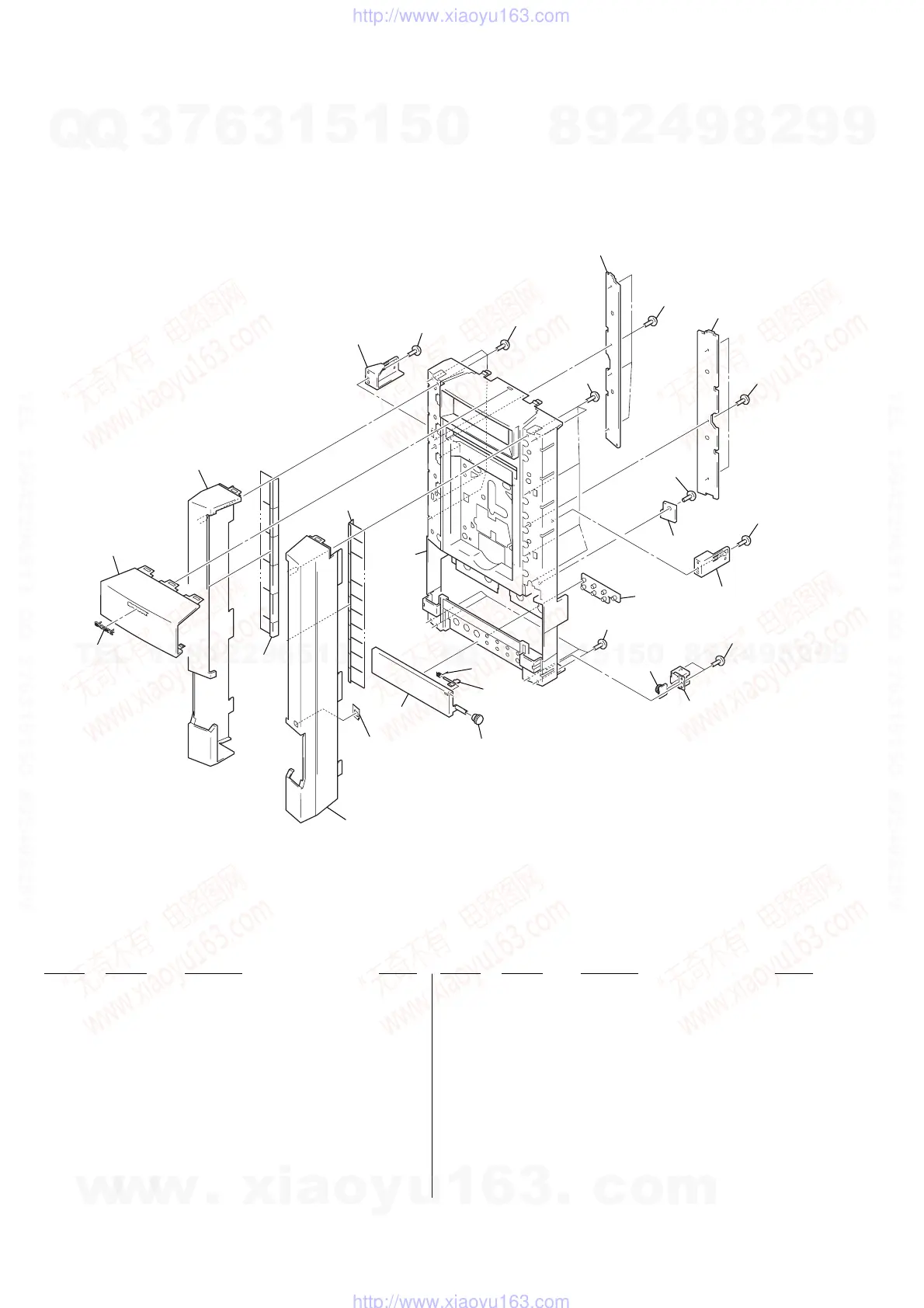

8-5. FRONT PANEL SECTION
