HCD-GTZ4/GTZ4i/GTZ5
7

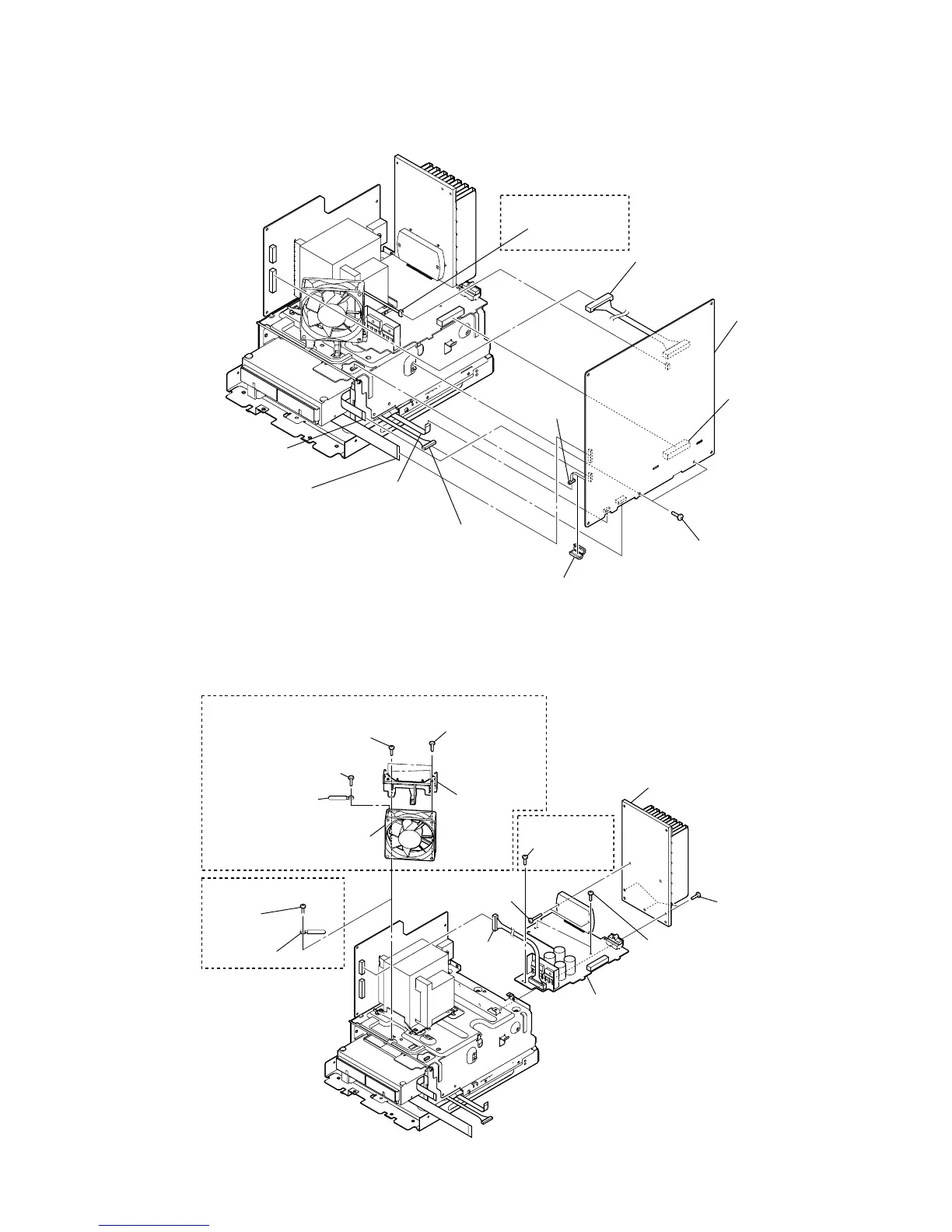

2-7. MAIN BOARD
2-8. DC FAN (M102), POWER AMP BOARD
2 connector
(CN1502)
8 connector
(CN907)
qa MAIN board
0 connector
(CN479)
9 two screws
(BVTP3 u 8)
1 filter clamp
5 wire (flat type)
(7 core) (CN692)
6 connector
(CN601)
3 wire (flat type)
(13 core) (CN410)
4 wire (flat type)
(9 core) (CN691)
7 fan connector
(CN110)
(EXCEPT GTZ4i: US)
4 screw
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
3 bracket (fan)
2 two screws
(BVTP3 u 8)
5 clamp
6 DC fan (M102)
qa heat sink
9 three screws
(BVTP3 u 10)
qd two screws
(BVTP3 u 8)
qf POWER AMP board
qs connector
(CN908)
q; two screws
(transistor)
(GTZ4i: US)
(EXCEPT GTZ4i: US)
7 screw
(BVTT3 u 6)
8 clamp
(GTZ4i: US)
qd screw
(BVTP3 u 8)
Ver. 1.1
