HCD-L1
[Key Check Mode]
* Keyboard check.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. To enter the test mode, press three buttons DISPLAY , NX
and > simultaneously.
3. In the key check mode, the fluorescent indicator displays
“KEY00”. Each time a button is pressed, “KEY00” value
increases. However, once a button is pressed, it is no longer
taken into account.
4. To exit from this mode, press three buttons DISPLAY , NX
and > simultaneously.
[Version Display Mode]
* The version or destination is displayed.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. To enter the test mode, press three buttons DISPLAY , VOL+
and VOL– simultaneously.
3. The model name and destination are displayed.
4. Press the DISPLAY button. The STR version is displayed.
5. Press the DISPLAY button again. The CD version is displayed.
6. Press the DISPLAY button. The model name and destination
are displayed again.
7. To exit from this mode, press the ?/1 button to turn off the set.

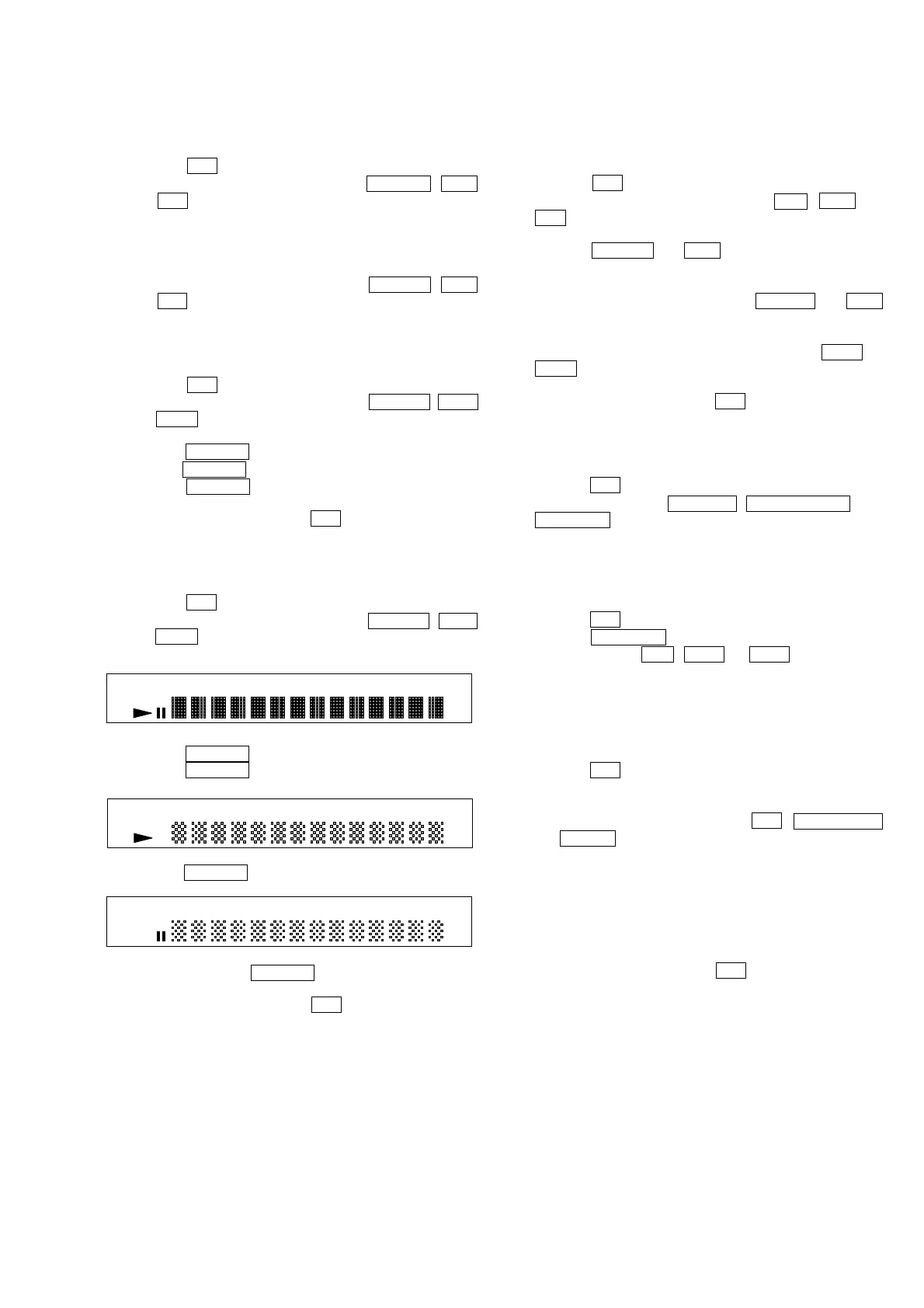

[FL Tube Test Mode]
* All fluorescent segments are tested.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. To enter the test mode, press three buttons DISPLAY , NX
and VOL– simultaneously.
3. All segments are turned on.
4. Press the DISPLAY button. All segments are turned off.
5. Press the DISPLAY button. Confirm the pattern of segments.
6. Press the DISPLAY button. Confirm the pattern of segments.
7. Every pressing of the DISPLAY button turns on each segment
one after another in the same order.
8. To exit from this mode, press the ?/1 button to turn off the set.
[Amp Test Mode]
* Combinatin of preset equalizer and volume is changed for the
amplifier test.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. To enter the test mode, press three buttons . , NX and
> simultaneously.
3. The message “7[TESTMIN]” appears.
4. Press the DISPLAY and NX buttons simultaneously.
5. The message “8[TESTMID]” appears.
6. The messages “9[TESTMAX]”, “10[TESTSUR]”, “7[TESTMIN]”,
, , are changed by every pressing of the DISPLAY and NX
buttons simultaneously.
7. Volume level is changeable at three steps as “VOLUME MIN”,
“VOLUME 21”, “VOLUME MAX” by pressing VOL+ or
VOL– button.
8. In this test mode, the tuning mode is set to the preset mode.
9. To exit from this mode, press the ?/1 button to turn off the set.
[Forced Reset]
* All micro-processors are forced to reset at the same time.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press three buttons DISPLAY , TUNER/BAND and
FUNCTION simultaneously.
3. The fluorescent indicator tube displays the message “COLD
RESET” and the set is reset. Then the set is turned off.
[CD Ship Position]
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press the FUNCTION button for the setting CD.
3. Press three buttons . , VOL+ and VOL– simultaneously.
4. The fluorescent indicator tube displays the message
“STANDBY” and CD is set to the shipment position. Then the
set is turned off.
[Aging Mode]
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Insert the disc.
3. Select the FUNCTION to CD.
4. To enter the test mode, press three buttons . , TUNER/BAND
and Z OPEN simultaneously.
5. Aging operation starts automatically.
6. The CD cover opens ,closes and the first track is played. Then
the last track is played.
7. The CD cover opens again, and the message “AGIN00000001”
is displayed. This value is cycle times of aging operation and
displays hexadecimal data.
8. The cover closes and aging operation is continued.
9. To exit from this mode, press the ?/1 button to turn off the set.
