HCD-L1

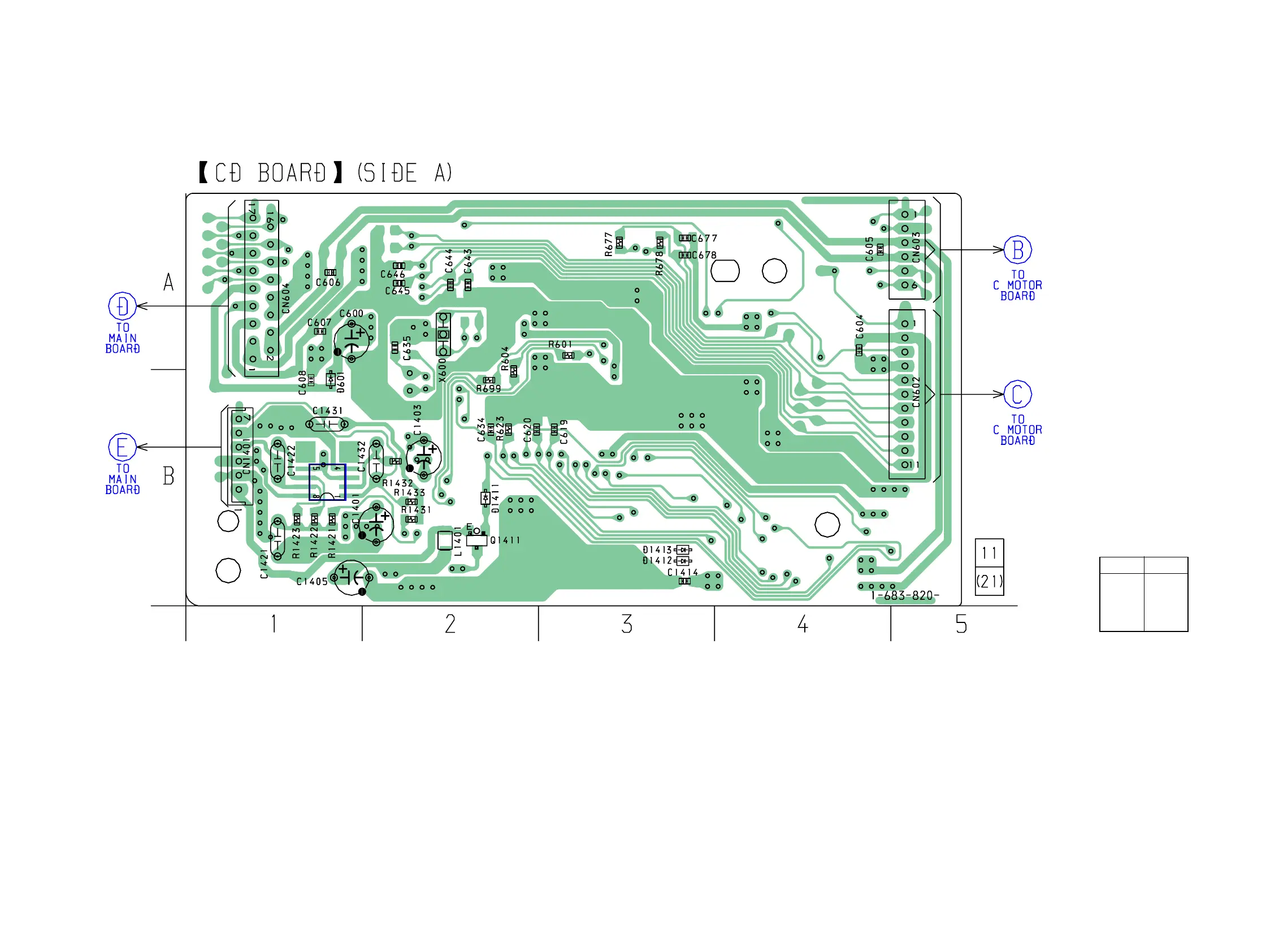

6-7. Printed Wiring Board CD Section (Side A)
• See page 25 for Circuit Boards Location.
IC1431
(Page 32)
(Page 32)
(Page 34)
(Page 34)
Ref. No. Location
D1411 B-2
IC1431 B-1
Q1411 B-2
• Semiconductor
Location
