HCD-LX9AV/LX10AV/LX90AV

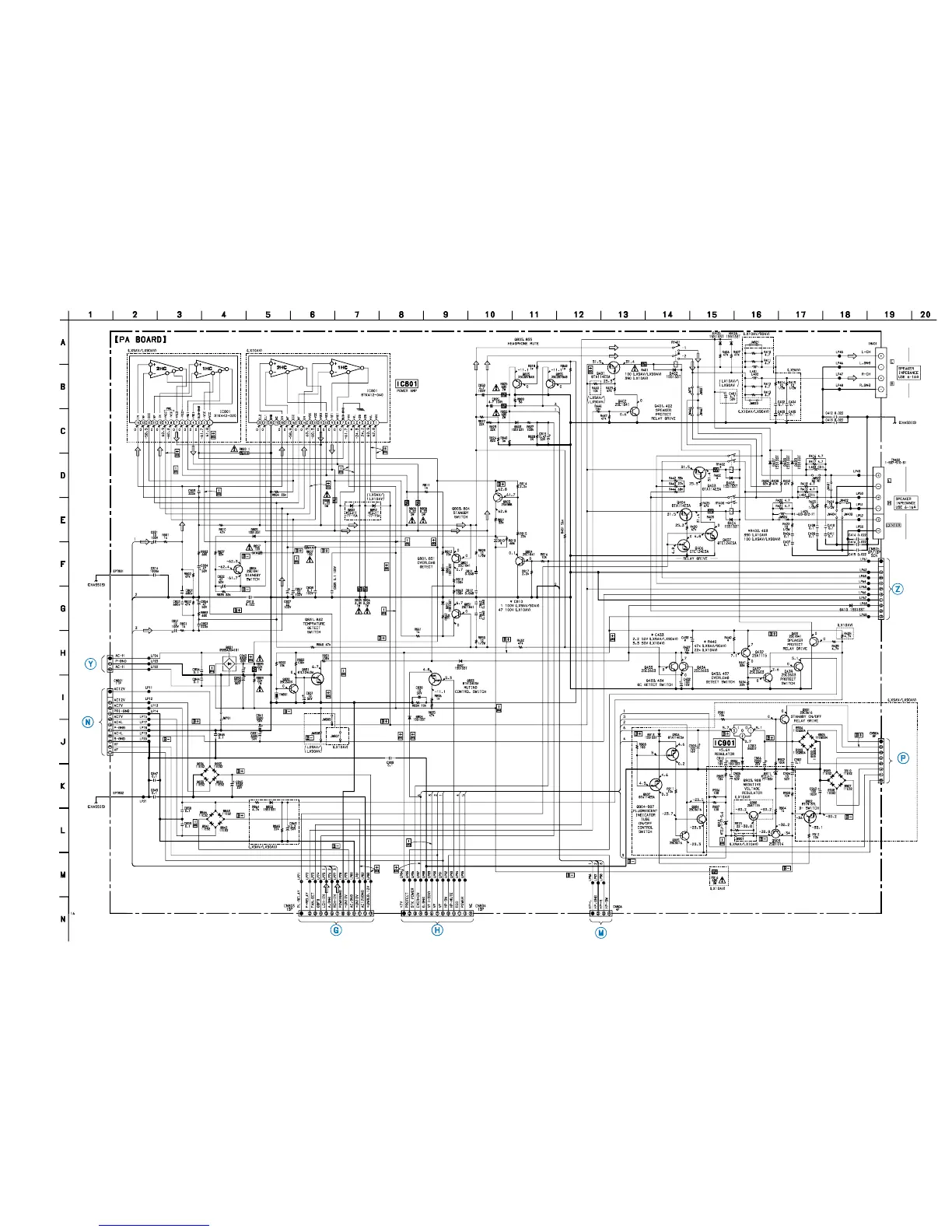

7-24. SCHEMATIC DIAGRAM – PA Board –
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
(Page 47)
(Page 49)
(Page 49)
(Page 34)
(Page 34)
(Page 43)
(Page 49)
