99
HCD-SC5/SC6/SC8
a
b
a
b
CD mechanism section-2
(CDM80-DVBU24)
410
410
410
411
410
412
409
401
408
401
407
406
405
404
403
401
402
CD mechanism section-3
(CDM80-DVBU24)
M701
base unit section
#9

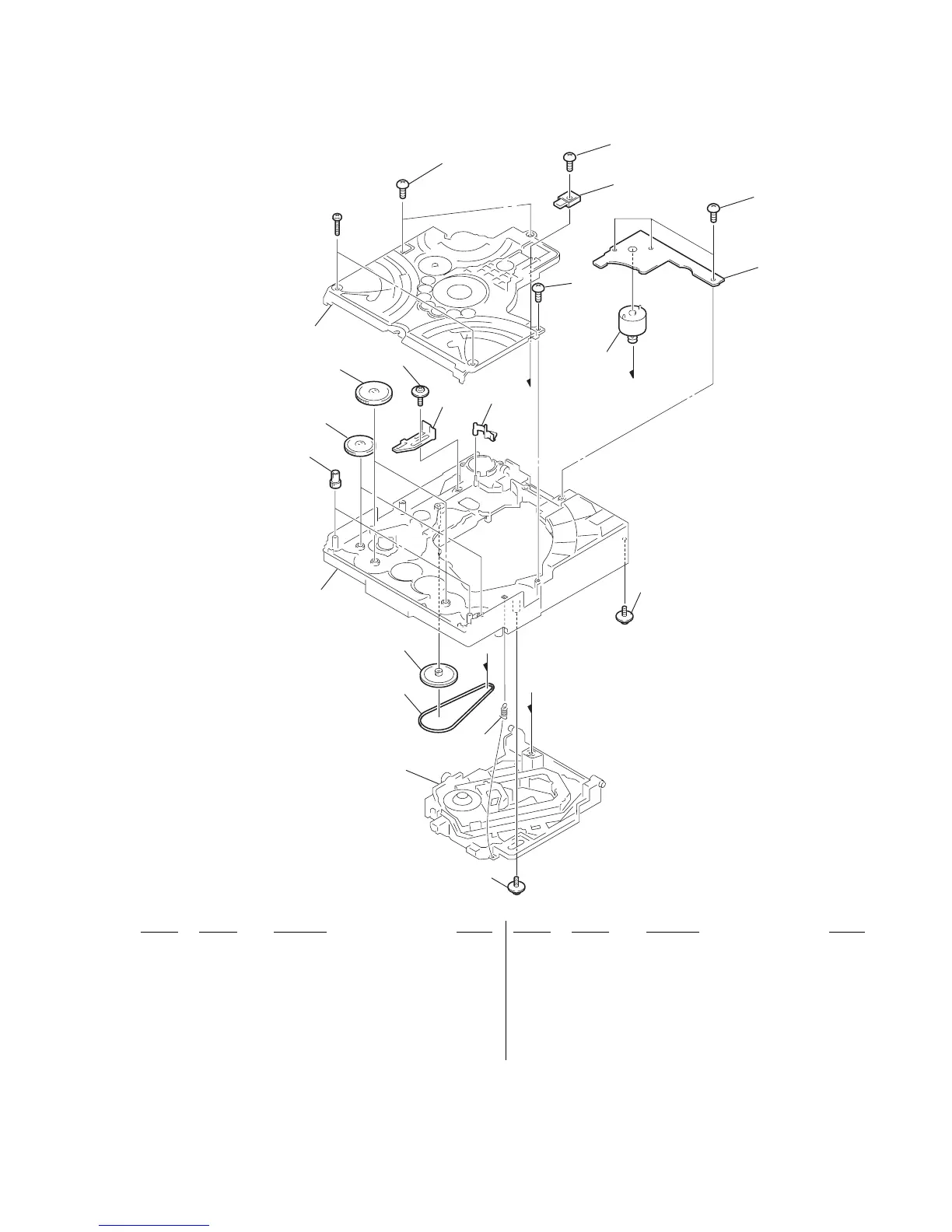

7-6. MECHANISM DECK SECTION-1
(CDM80-DVBU24)
401 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
402 4-248-723-01 SPR-E, HOLDER DOWN
403 4-245-653-01 BELT (MOT)
404 4-245-662-01 PULLEY (GEAR)
405 4-245-646-01 GEAR (IDL-F)
406 4-245-644-01 GEAR (IDL-D)
407 4-245-645-01 GEAR (IDL-E)
408 4-246-203-01 LEVER (RELEASE)
409 4-245-630-01 LEVER (SW)
410 4-951-620-01 SCREW (2.6X8), +BVTP
411 4-245-639-01 LEVER (CL UP2)
412 1-688-337-11 DRIVER BOARD
M701 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING)
#9 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
To Next Page
