Sony HDR-CX530E User Manual

6-41
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
MM
MM
FP-2126
FLEXIBLE
CN0005
(PAGE 6-40)
Note: M901 and M902 are not included in FP-2125 FLEXIBLE BOARD.
12345 6 7 8 9
A
B
C
D
E
F
A
B
C
D
E
F
08

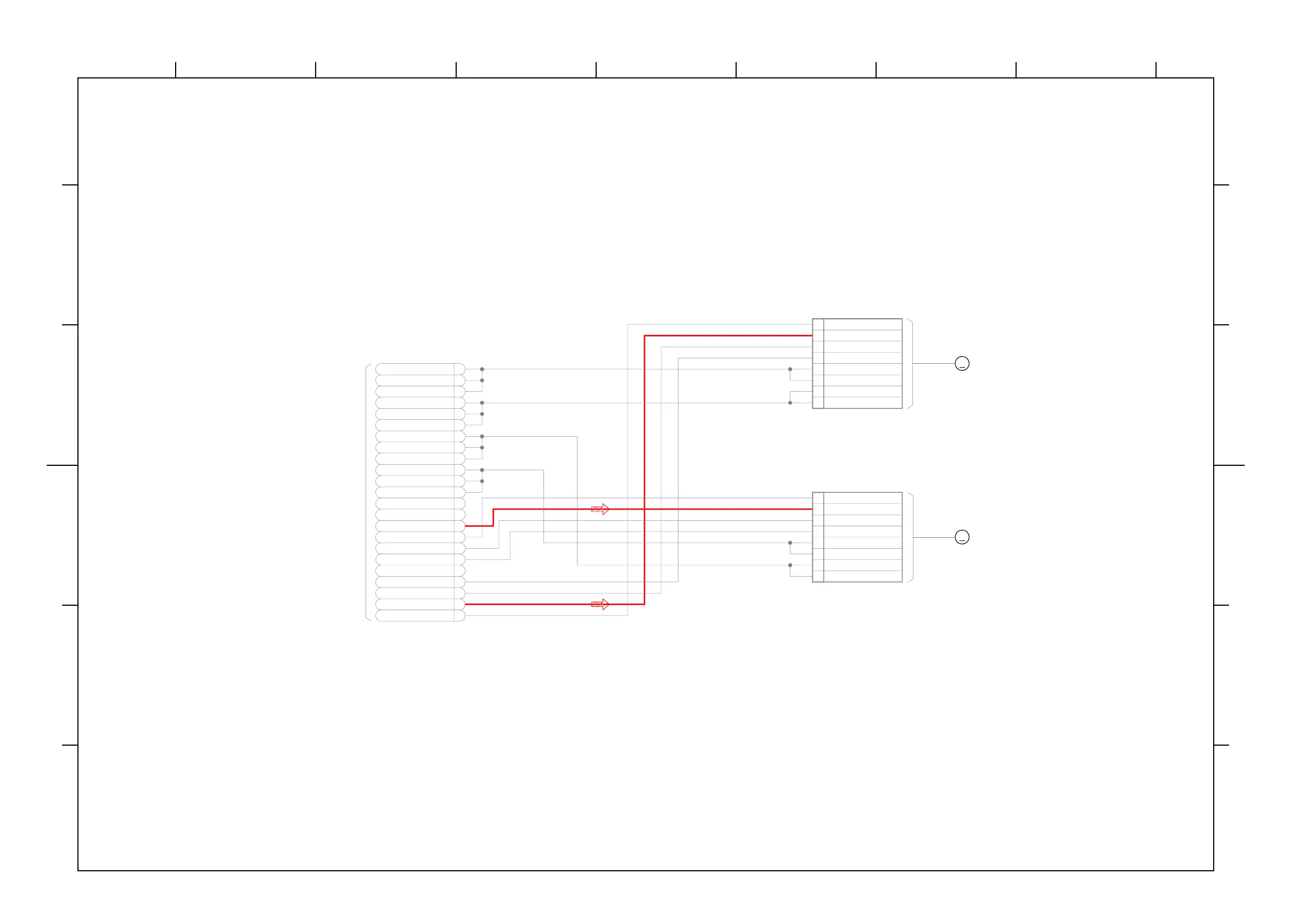

FP-2125 FLEXIBLE BOARD
PITCH/YAW MOTOR
LD000123P
1
YAW-
2
YAW-
21
YAW-
20
YAW+
19
YAW+
18
YAW+
17
PITCH+
16
PITCH+
15
PITCH+
14
PITCH-
13
PITCH-
12
PITCH-
11
N.C
10
N.C
9
PITCH_BIAS+
8
PITCH_HALL-
7
PITCH_HALL+
6
PITCH_BIAS-
5
N.C
4
YAW_BIAS-
3
YAW_HALL+
22
YAW_BIAS+
23
YAW_HALL-
CN0001 8P
1
YAW_HALL-
2
YAW_BIAS+
3
YAW_HALL+
4
YAW_BIAS-
5
YAW-
6
YAW-
7
YAW+
8
YAW+
CN0002 8P
1
PITCH_HALL-
2
PITCH_BIAS+
3
PITCH_HALL+
4
PITCH_BIAS-
5
PITCH-
6
PITCH-
7
PITCH+
8
PITCH+
M902
(YAW)
M901
(PITCH)
