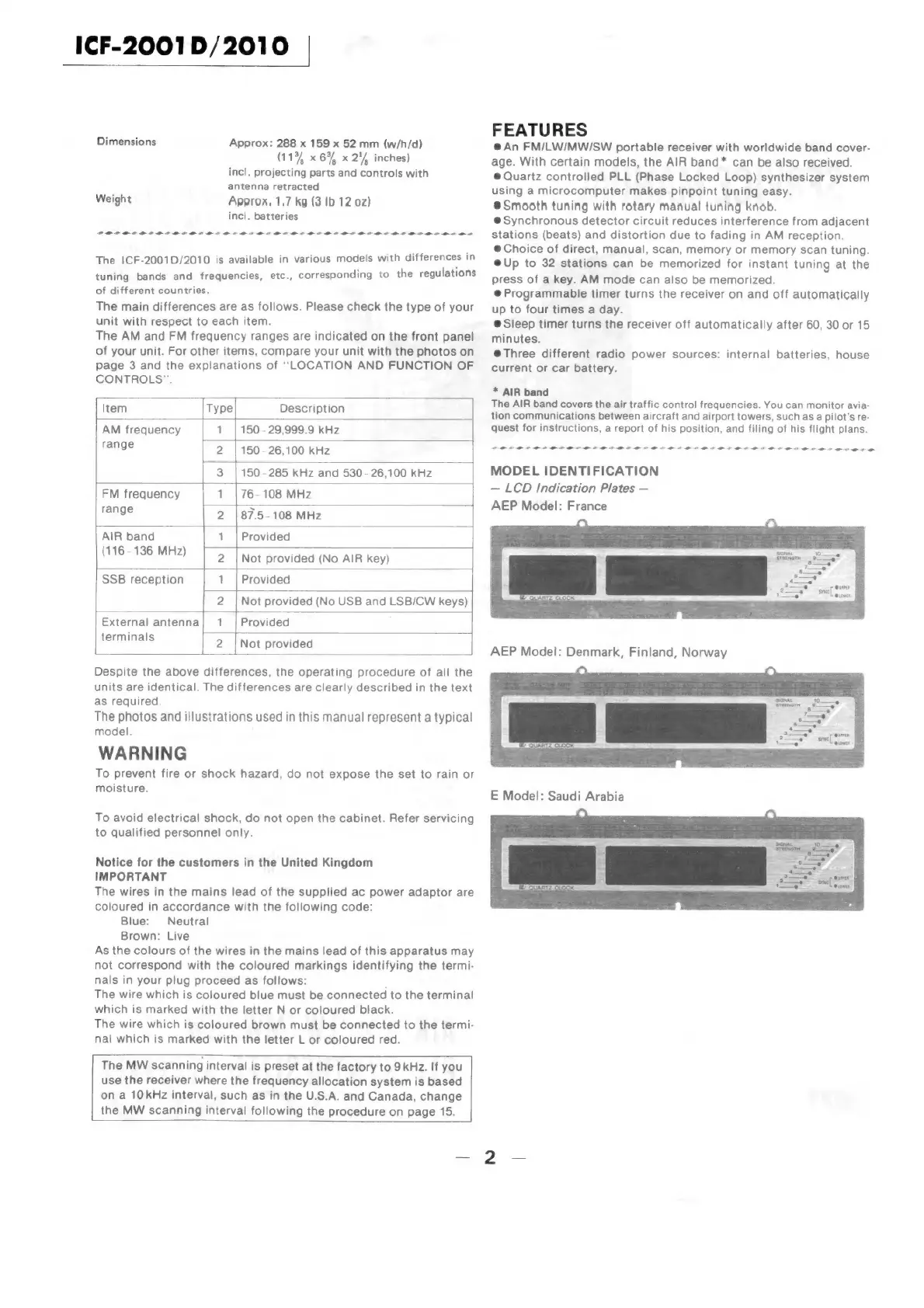

Sony ICF-2001D Service Manual

ICF-2001D/2010
Dimensions Approx: 288 x 159 x 52 mm (w/h/d)
(11% x 6% x 2'4 inches)
incl. projecting parts and controls with
antenna retracted
Weight
Approx,
1.7
kg
(3
Ib
12
0z)
incl. batteries
PE EN OM SM OH OSLO DSH SH OLH CHOWK OD Ow Ow
The
ICF-2001D/2010
is
available
in
various
models
with
differences
in
tuning
bands
and
frequencies,
etc.,
corresponding
to
the
regulations
of
different
countries.
The main differences are as follows. Please check the type of your
unit with respect to each item.
The AM and FM frequency ranges are indicated on the front panel
of your unit. For other items, compare your unit with the photos on
page 3 and the explanations of ‘LOCATION AND FUNCTION OF
CONTROLS".
Description
1 | 150-29,999.9 kHz
2 | 150-26,100 kHz
3 | 150-285 kHz and 530 - 26,100 kHz
1
Item Type
AM frequency
range
FM frequency \76- 108 MHz
rae 2 |87.5-108 MHz
AIR band 1 | Provided
(116-136 MHz) 2 | Not provided (No AIR key)
SSB reception 1 ‘| Provided
2 [Not provided (No USB and LSB/CW keys)
External antenna} 1 | Provided
terminals 2
i
Not provided
Despite the above differences, the operating procedure of all the
units are identical. The differences are clearly described in the text
as required.
The photos and illustrations used in this manual represent a typical
model.
WARNING
To prevent fire or shock hazard, do not expose the set to rain or
moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing
to qualified personnel only.
Notice for the customers in the United Kingdom
IMPORTANT
The wires in the mains lead of the supplied ac power adaptor are
coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the termi-
nals in your plug proceed as follows: ;
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the termi-
nal which is marked with the letter L or coloured red.
The MW scanning interval is preset at the factory to 9 kHz. If you
use the receiver where the frequency allocation system is based
on a 10kHz interval, such as in the U.S.A. and Canada, change
the MW scanning interval following the procedure on page 15.
FEATURES
@An FM/LW/MW/SW portable receiver with worldwide band cover-
age. With certain models, the AIR band* can be also received.
® Quartz controlled PLL (Phase Locked Loop) synthesizer system
using a microcomputer makes pinpoint tuning easy.
e@Smooth tuning with rotary manual tuning knob.
@ Synchronous detector circuit reduces interference from adjacent
stations (beats) and distortion due to fading in AM reception.
®@ Choice of direct, manual, scan, memory or memory scan tuning.
@Up to 32 stations can be memorized for instant tuning at the
press of a key. AM mode can also be memorized.
© Programmable timer turns the receiver on and off automatically
up to four times a day.
@Sleep timer turns the receiver off automatically after 60, 30 or 15
minutes.
@Three different radio power sources: internal batteries, house
current or car battery.
* AIR band
The AIR band covers the air traffic control frequencies. You can monitor avia-
tion communications between aircraft and airport towers, such as a pilot's re-
quest for instructions, a report of his position, and filing of his flight plans.
LLL LPM EL ENOL OXON OK CN ON OW OW OCW OWe
MODEL IDENTIFICATION
— LCD Indication Plates —
AEP Model: France
Seng
4_e
)
i ey
te
sywe[ @urres
Lower
E Model: Saudi Arabia
