SECTION 5
EXPLODED VIEWS
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

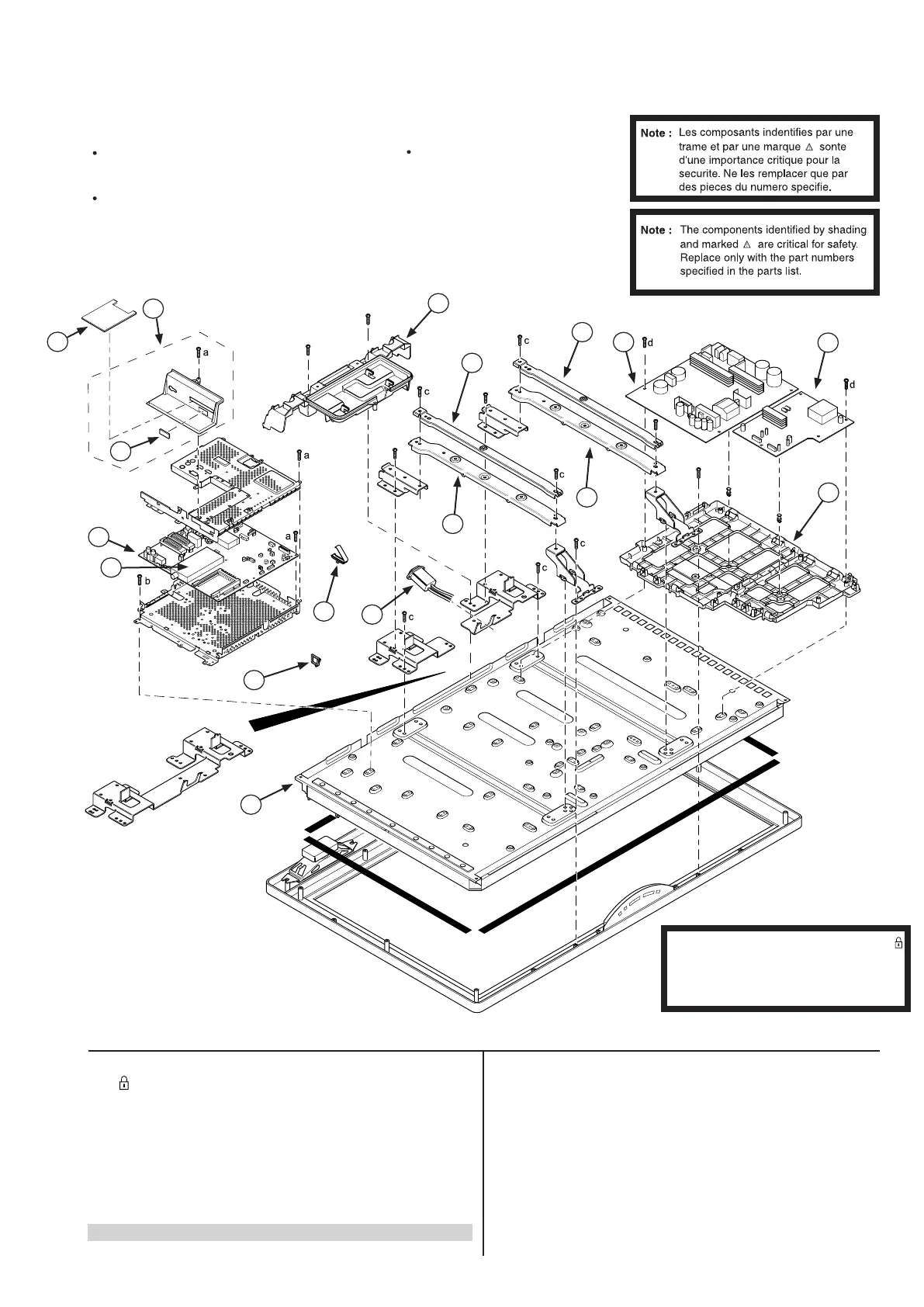

5-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 83 -
NOTE :
Non-serviceable items with no part number and no
description are not stocked because they are not
required for routine service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
1 X-2178-938-1 SIDE, TERMINAL(ASSY)(AE) 14a
2 *A-1503-609-A BC BOARD, COMPLETE (26 inches)
*A-1503-611-A BC BOARD, COMPLETE (32/40 inches)
3 8-595-613-01 TUNER UNIT, DIGITAL BTD-HF401Z
4 1-802-368-12 LCD PANEL (26INCH WXGA TFT) (26 inches)
1-802-380-13 LCD PANEL (32INCH WXGA TFT) (32 inches)
1-802-410-12 LCD PANEL (40INCH WXGA TFT) (40 inches)
5 2-650-770-21 SLIDE, CLAMP (VARIOUS POSITIONS)
6 2-595-155-02 CLAMP
7 £ 1-819-729-14 INLET, AC(WITH NOISE FILTER) (40 inches)
8 *X-2177-262-1 VESA ARM(26)L ASSY (26 inches)
*X-2177-259-1 VESA ARM(40)L ASSY (40 inches)
9 *X-2177-263-2 VESA ARM(26)R ASSY (26 inches)
*X-2177-260-1 VESA ARM(40)R ASSY (40 inches)
10 *3-100-283-11 COVER, UNDER (M) (26/32 inches)
3-100-285-01 COVER, UNDER (L) (40 inches)
11 *X-2177-257-1 VESA ARM(32) ASSY (32 inches)
12 *A-1268-617-A G3 BOARD, COMPLETE (40 inches)
13 *A-1268-621-A D1 BOARD, COMPLETE (40 inches)
14 *3-100-997-01 BRACKET G3 (40 inches)
14a 2-689-737-01 COVER, MS
14b *4-101-356-02 CARD, DUMMY
1
11
2
5
7
8
11
12
13
14
4
10
3
6
9
a 2-580-591-01 SCREW, +PSW M3X5
b 7-685-872-09 SCREW, +BVTT 3X8(S)
c 2-580-606-01 SCREW, +PSW M5X8
d 2-674-965-31 SCREW, +PSW 3SG (26/32 inches)
2-674-965-41 SCREW, +PSW 3SG (40 inches)
Note : The components identified by mark
contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.
14a
14b
To Next Page
