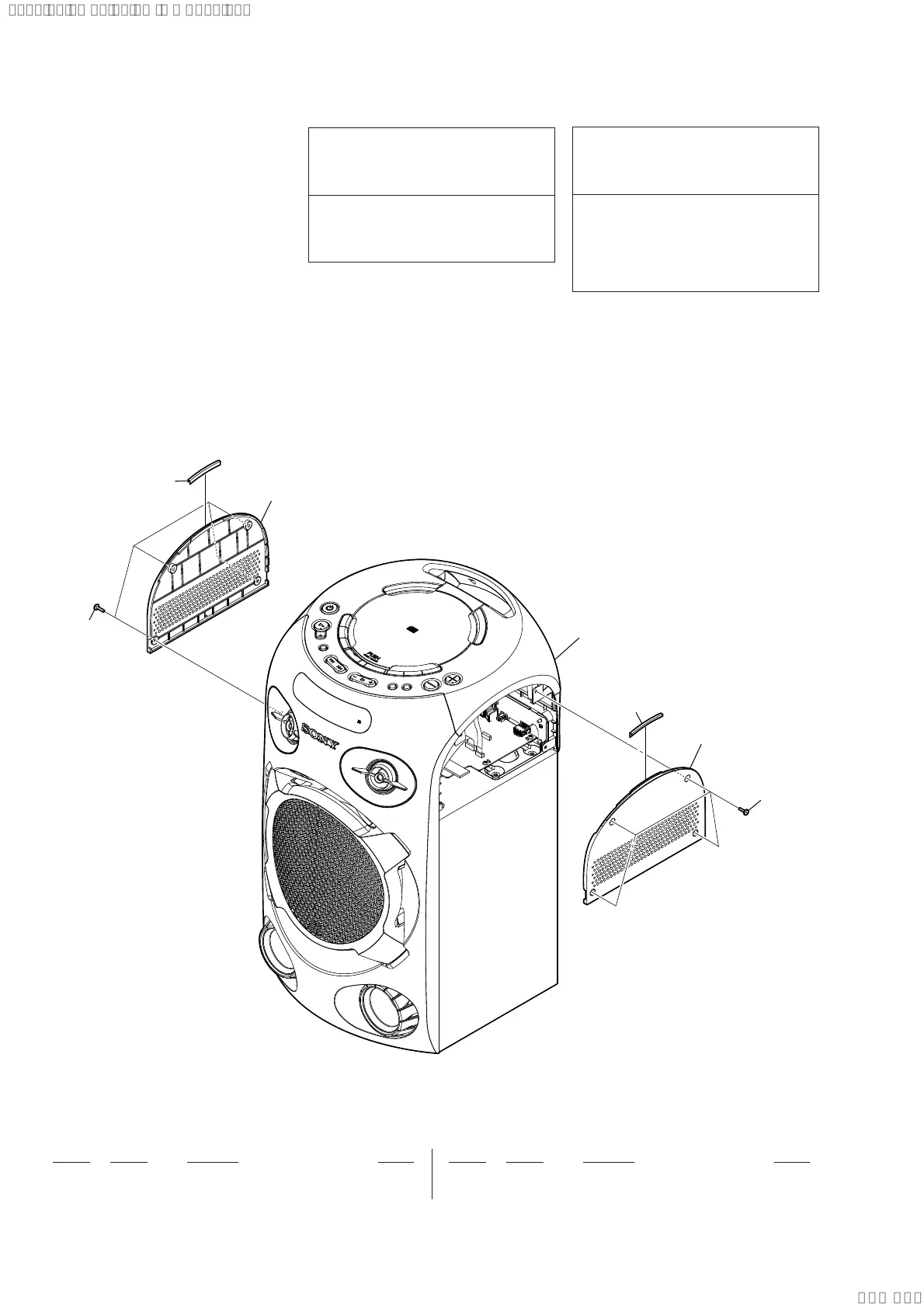

7-1. LEFT, RIGHT PANEL
1 4-589-281-11 SCREW, TAPPING
2 5-004-811-01 CUSHION, PANEL
0 3 4-744-960-01 PANEL, LEFT
0 4 4-744-961-01 PANEL, RIGHT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
rear panel section
1
1
2
2
4
3
