Sony MHC-V50 Service Manual

MHC-V50/V50D
14

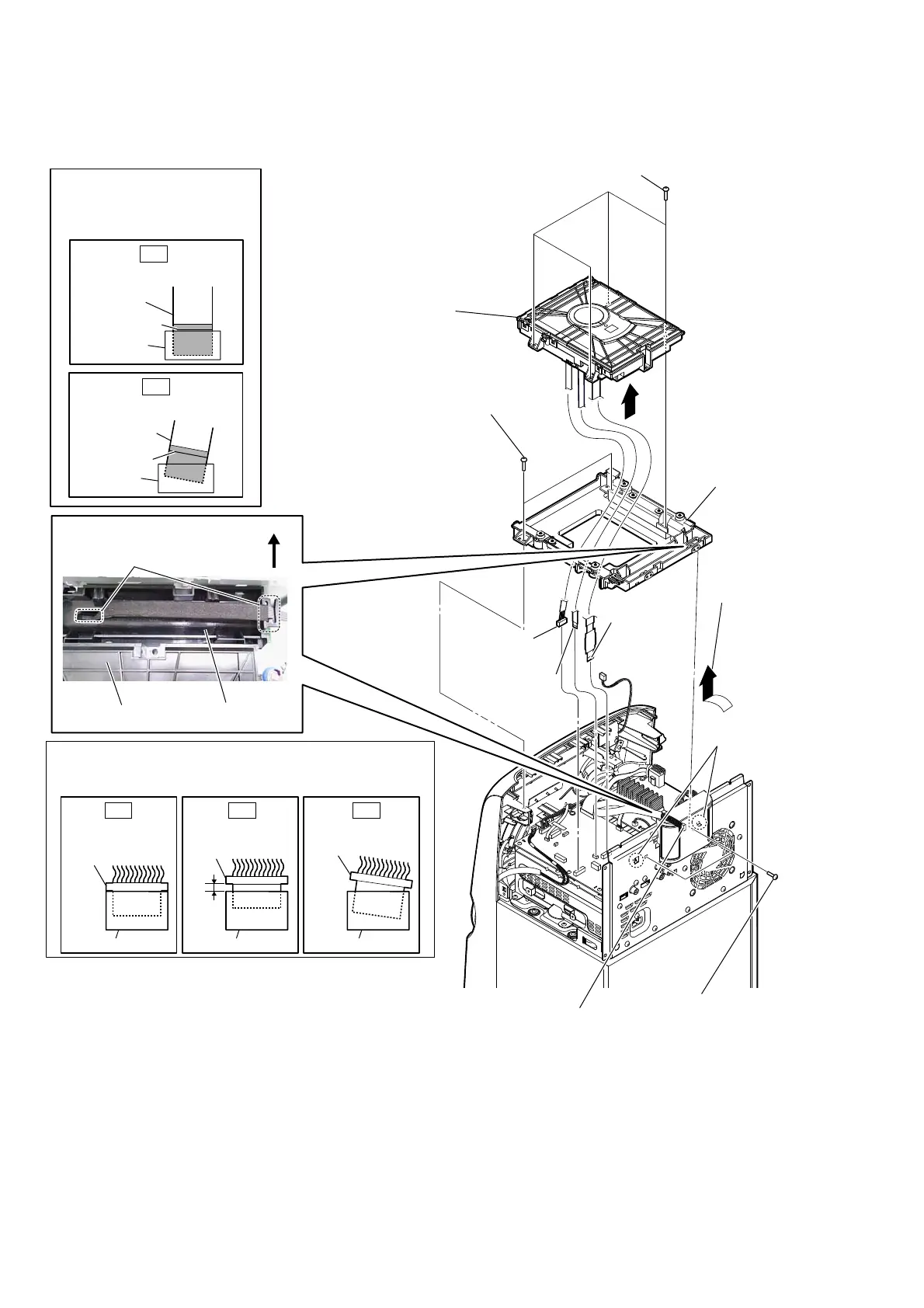

2-5. CDM SECTION
q; four screws (+BVTP 3 x 8)
1 two screws
(+BVTP 3 x 8)
2 two screws
(+BVTP 3 x 8)
6 CN2100 (8P)
3 two claws
7 CN401 (6P)
8 flexible flat cable
(5 core) (CN303)
9 flexible flat
cable
(24 core)
(CN302)
4 Remove the
CDM section
in the direction
of the arrow.
qs CDM90-DVBU204//C
qd bracket, CDM
qa
:LUHVHWWLQJ
Draw out the wire from bracket,
CDM.
5
CDM90-DVBU204//C
bracket, CDM
rear side
–5HDUYLHZ–
Note 1: When installing the flexible
flat cable, ensure that the
colored line is not slanted
after insertion.
colored line
Insert is straight to the interior.
flexible flat cable
connector
OK
colored line
Insert is incline
flexible flat cable
connector
NG
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG

Sony MHC-V50 Specifications

General

Type	Home audio tower system
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Speaker type	3-way
RMS rated power	660 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID
Volume control	Digital
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W

Weight and Dimensions

Depth	300 mm
Width	293 mm
Height	798 mm
Weight	14000 g
