Chapter 18 System Setup (System)
1049
Setting the Signal Format (Format Menu)
1
In the System >Format menu, select the device for operations.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video cursor.
• Turn the knob.
2
Press [Signal Format].

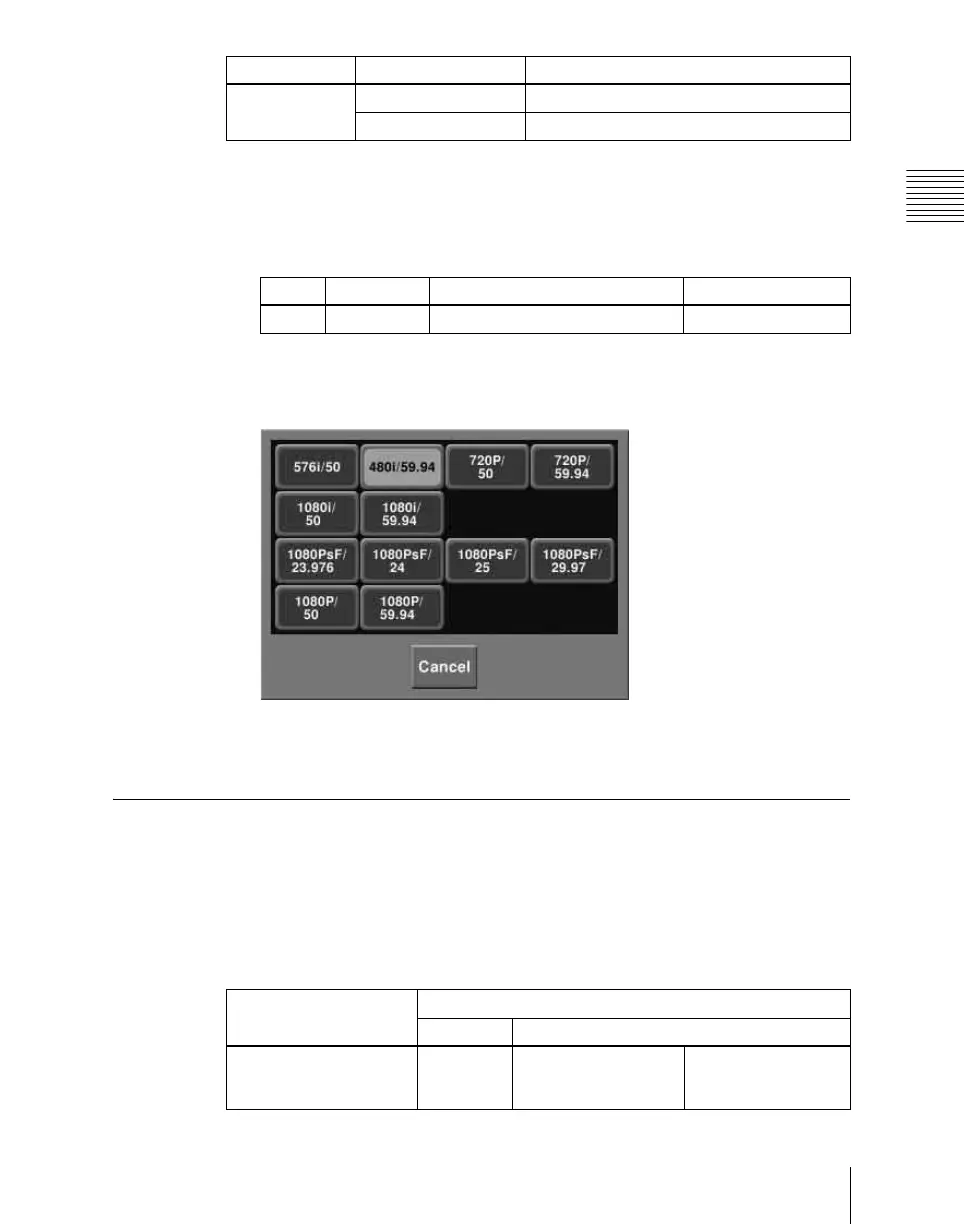

A pop-up window appears.
3
Press the button for the desired signal format.
Switching the Input Reference Signal for HD System
This changes the input reference signal.
• Tri Sync: tri-level sync for an HD system
• BB (Black Burst): black burst or sync
The following table shows the relation between signal format and the
frequency of a signal that can be used as the input reference signal.
SD system 59.94 480i
50 576i
System Field frequency Effective number of scan lines
Knob Parameter Adjustment Setting values
1 Device Selection of device for operations 1 and upwards
Signal format Input reference signal
Tri Sync Black burst
1080PsF/29.97
1080P/59.94,
1080i/59.94
59.94 Black Burst 59.94 Sync 59.94
To Next Page
