7
SA-WMS145/WMSP50
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark

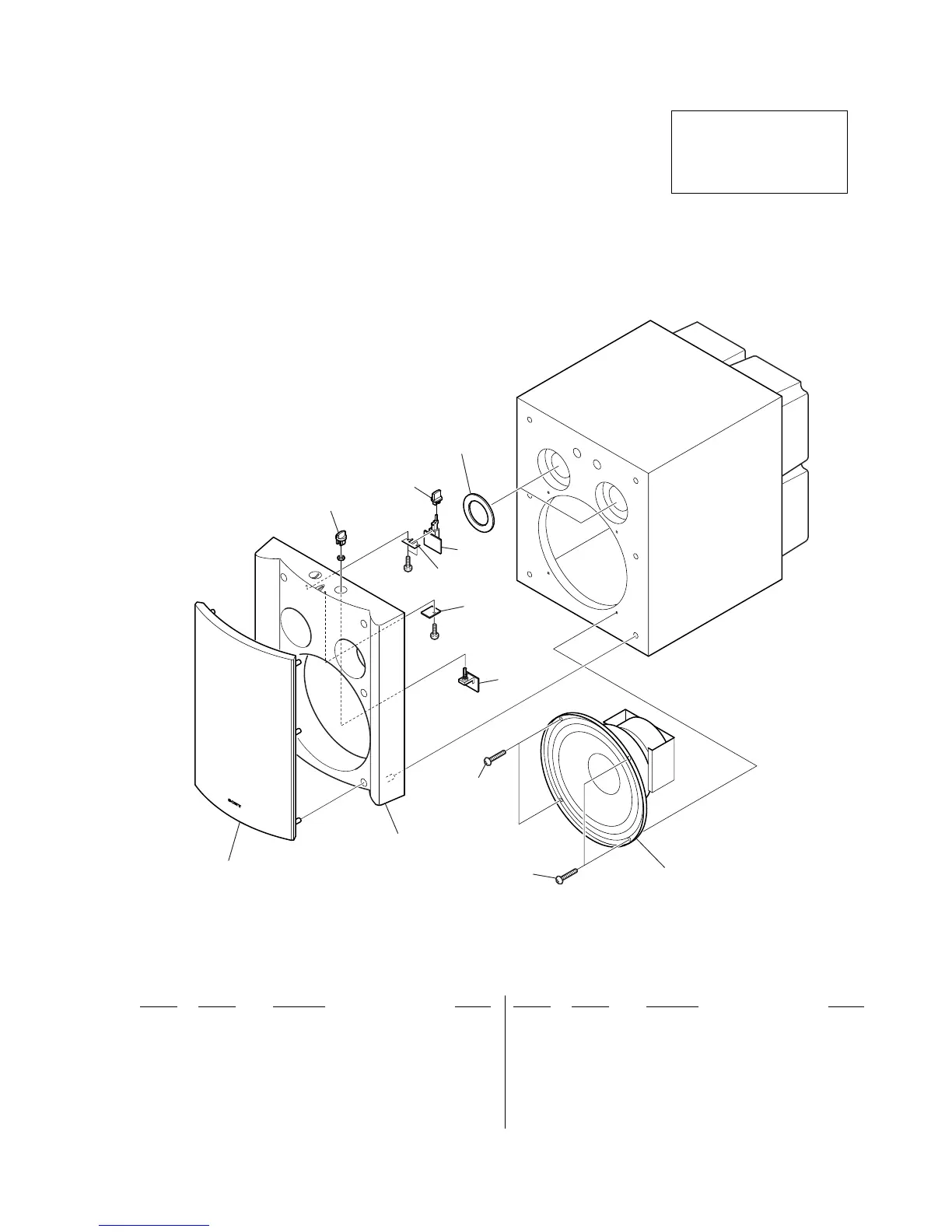

2-1. FRONT SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
RR
1 A-4737-806-A GRILLE (FRAME) ASSY (SILVER)...(SILVER)
1 A-4740-193-A GRILLE (FRAME) ASSY (SILVER)...(WOOD)
1 A-4740-283-A GRILLE (FRAME) ASSY (BLACK)...(BLACK)
24-246-148-01 PANEL (FRONT) (SILVER)...(SILVER,WOOD)
24-246-148-11 PANEL (FRONT) (BLACK)...(BLACK)
34-235-677-01 SCREW (4X20) (TYPE1), +BVTP
41-688-810-11 CONTROL BOARD
5 1-688-812-11 LED BOARD
6 1-688-811-11 SWITCH BOARD
7 4-229-516-12 KNOB (VOL)
8 4-229-517-03 KNOB (SW)
SP1 1-825-004-13 SPEAKER (20cm) (WOOFER)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1
2
7
8
4
5
6
not supplied
not supplied
SP1
#1
#1
3
3
To Next Page
