7
SA-WMSP87/WMSP87E
SECTION 2
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
CND : Canadian model
E51 : Chilean and Peruvian model
MX : Mexican model
SP : Singapore model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.

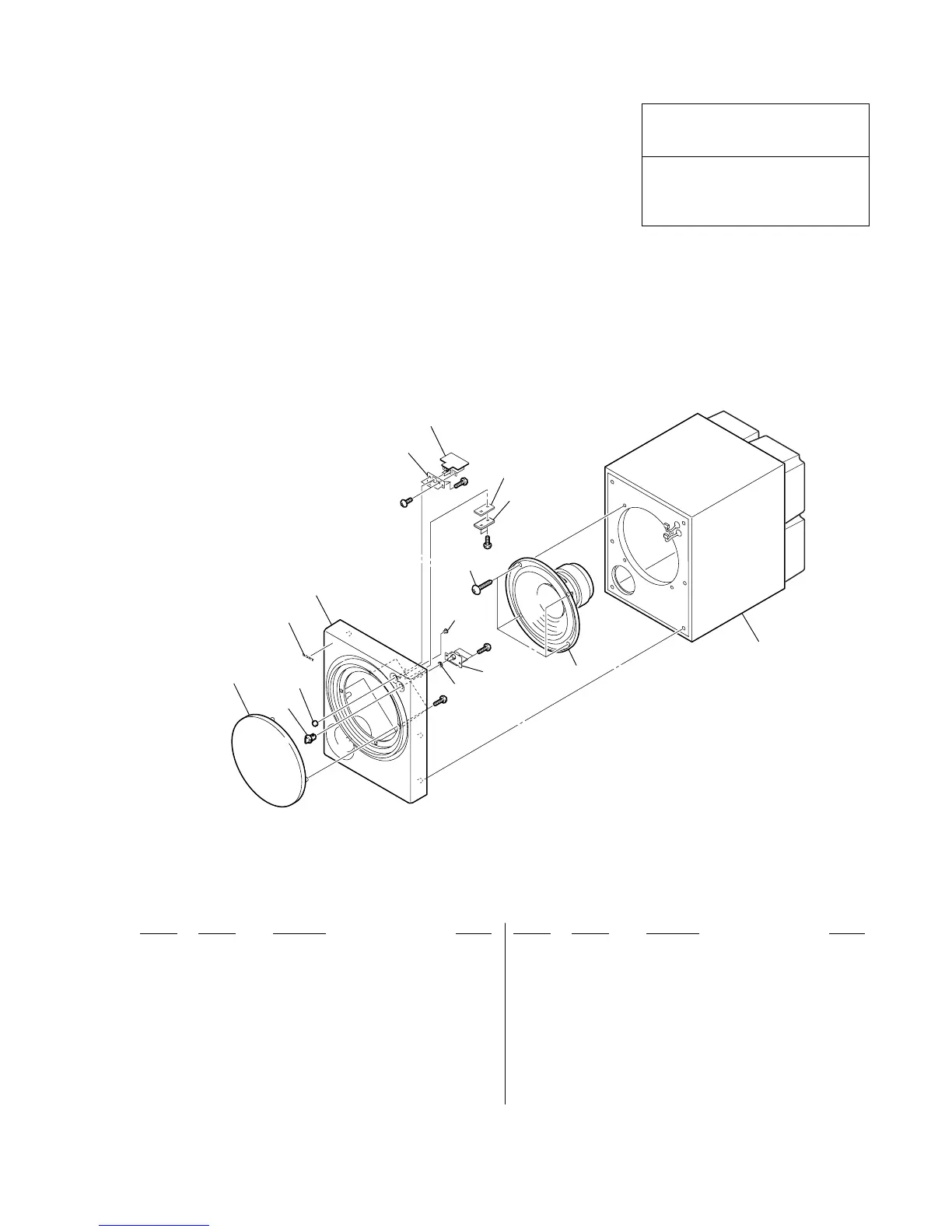

2-1. FRONT RANEL ASSY
1
2
3
4
5
7
6
SP1
amp section
not
supplied
not
supplied
#1
#1
#1
#1
#3
not
supplied
not
supplied
not
supplied
not
supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-998-417-02 EMBLEM (NO.5), SONY
2 4-973-938-83 KNOB (A), PUSH (CND, MX, SP, E51, AUS)
2 4-973-938-93 KNOB (A), PUSH (US)
2 4-229-517-41 KNOB (SW) (WMSP87E)
3 4-999-482-71 KNOB (VOL) (CND, MX, SP, E51, AUS)
3 4-999-482-81 KNOB (VOL) (US)
3 4-229-516-51 KNOB (VOL) (WMSP87E)
4 2-549-291-01 FRONT PANEL (CND)
4 2-549-291-11 FRONT PANEL (MX, SP, E51, AUS)
4 2-549-291-21 FRONT PANEL (US)
4 4-246-148-31 FRONT (PANEL) (WMSP87E)
5 1-688-811-11 SWITCH BOARD (WMSP87E)
5 (Not Supplied) SWITCH BOARD (WMSP87)
6 1-688-810-11 CONTROL BOARD (WMSP87E)
6 (Not Supplied) CONTROL BOARD (WMSP87)
7 1-688-812-11 LED BOARD (WMSP87E)
SP1 1-825-845-11 LOUDSPEAKER (20cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 (WMSP87)
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 (AEP,UK)
