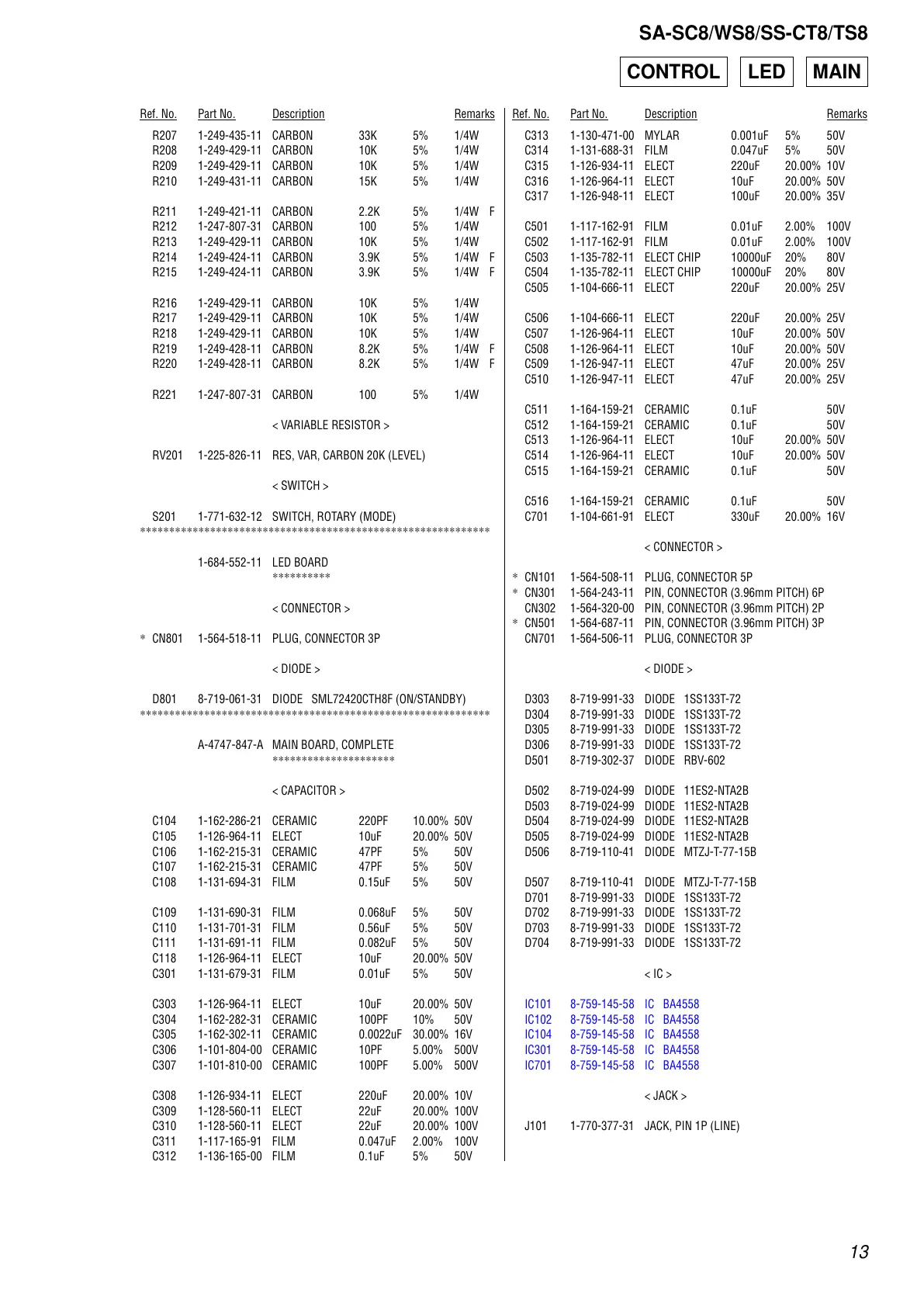

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
13
SA-SC8/WS8/SS-CT8/TS8
R207 1-249-435-11 CARBON 33K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R209 1-249-429-11 CARBON 10K 5% 1/4W
R210 1-249-431-11 CARBON 15K 5% 1/4W
R211 1-249-421-11 CARBON 2.2K 5% 1/4W F
R212 1-247-807-31 CARBON 100 5% 1/4W
R213 1-249-429-11 CARBON 10K 5% 1/4W
R214 1-249-424-11 CARBON 3.9K 5% 1/4W F
R215 1-249-424-11 CARBON 3.9K 5% 1/4W F
R216 1-249-429-11 CARBON 10K 5% 1/4W
R217 1-249-429-11 CARBON 10K 5% 1/4W
R218 1-249-429-11 CARBON 10K 5% 1/4W
R219 1-249-428-11 CARBON 8.2K 5% 1/4W F
R220 1-249-428-11 CARBON 8.2K 5% 1/4W F
R221 1-247-807-31 CARBON 100 5% 1/4W
< VARIABLE RESISTOR >
RV201 1-225-826-11 RES, VAR, CARBON 20K (LEVEL)
< SWITCH >
S201 1-771-632-12 SWITCH, ROTARY (MODE)
************************************************************
1-684-552-11 LED BOARD
**********
< CONNECTOR >
* CN801 1-564-518-11 PLUG, CONNECTOR 3P
< DIODE >
D801 8-719-061-31 DIODE SML72420CTH8F (ON/STANDBY)
************************************************************
A-4747-847-A MAIN BOARD, COMPLETE
*********************
< CAPACITOR >
C104 1-162-286-21 CERAMIC 220PF 10.00% 50V
C105 1-126-964-11 ELECT 10uF 20.00% 50V
C106 1-162-215-31 CERAMIC 47PF 5% 50V
C107 1-162-215-31 CERAMIC 47PF 5% 50V
C108 1-131-694-31 FILM 0.15uF 5% 50V
C109 1-131-690-31 FILM 0.068uF 5% 50V
C110 1-131-701-31 FILM 0.56uF 5% 50V
C111 1-131-691-11 FILM 0.082uF 5% 50V
C118 1-126-964-11 ELECT 10uF 20.00% 50V
C301 1-131-679-31 FILM 0.01uF 5% 50V
C303 1-126-964-11 ELECT 10uF 20.00% 50V
C304 1-162-282-31 CERAMIC 100PF 10% 50V
C305 1-162-302-11 CERAMIC 0.0022uF 30.00% 16V
C306 1-101-804-00 CERAMIC 10PF 5.00% 500V
C307 1-101-810-00 CERAMIC 100PF 5.00% 500V
C308 1-126-934-11 ELECT 220uF 20.00% 10V
C309 1-128-560-11 ELECT 22uF 20.00% 100V
C310 1-128-560-11 ELECT 22uF 20.00% 100V
C311 1-117-165-91 FILM 0.047uF 2.00% 100V
C312 1-136-165-00 FILM 0.1uF 5% 50V
C313 1-130-471-00 MYLAR 0.001uF 5% 50V
C314 1-131-688-31 FILM 0.047uF 5% 50V
C315 1-126-934-11 ELECT 220uF 20.00% 10V
C316 1-126-964-11 ELECT 10uF 20.00% 50V
C317 1-126-948-11 ELECT 100uF 20.00% 35V
C501 1-117-162-91 FILM 0.01uF 2.00% 100V
C502 1-117-162-91 FILM 0.01uF 2.00% 100V
C503 1-135-782-11 ELECT CHIP 10000uF 20% 80V
C504 1-135-782-11 ELECT CHIP 10000uF 20% 80V
C505 1-104-666-11 ELECT 220uF 20.00% 25V
C506 1-104-666-11 ELECT 220uF 20.00% 25V
C507 1-126-964-11 ELECT 10uF 20.00% 50V
C508 1-126-964-11 ELECT 10uF 20.00% 50V
C509 1-126-947-11 ELECT 47uF 20.00% 25V
C510 1-126-947-11 ELECT 47uF 20.00% 25V
C511 1-164-159-21 CERAMIC 0.1uF 50V
C512 1-164-159-21 CERAMIC 0.1uF 50V
C513 1-126-964-11 ELECT 10uF 20.00% 50V
C514 1-126-964-11 ELECT 10uF 20.00% 50V
C515 1-164-159-21 CERAMIC 0.1uF 50V
C516 1-164-159-21 CERAMIC 0.1uF 50V
C701 1-104-661-91 ELECT 330uF 20.00% 16V
< CONNECTOR >
* CN101 1-564-508-11 PLUG, CONNECTOR 5P
* CN301 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CN302 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
* CN501 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
CN701 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D303 8-719-991-33 DIODE 1SS133T-72
D304 8-719-991-33 DIODE 1SS133T-72
D305 8-719-991-33 DIODE 1SS133T-72
D306 8-719-991-33 DIODE 1SS133T-72
D501 8-719-302-37 DIODE RBV-602
D502 8-719-024-99 DIODE 11ES2-NTA2B
D503 8-719-024-99 DIODE 11ES2-NTA2B
D504 8-719-024-99 DIODE 11ES2-NTA2B
D505 8-719-024-99 DIODE 11ES2-NTA2B
D506 8-719-110-41 DIODE MTZJ-T-77-15B
D507 8-719-110-41 DIODE MTZJ-T-77-15B
D701 8-719-991-33 DIODE 1SS133T-72
D702 8-719-991-33 DIODE 1SS133T-72
D703 8-719-991-33 DIODE 1SS133T-72
D704 8-719-991-33 DIODE 1SS133T-72
< IC >
IC101 8-759-145-58 IC BA4558
IC102 8-759-145-58 IC BA4558
IC104 8-759-145-58 IC BA4558
IC301 8-759-145-58 IC BA4558
IC701 8-759-145-58 IC BA4558
< JACK >
J101 1-770-377-31 JACK, PIN 1P (LINE)
CONTROL LED MAIN
