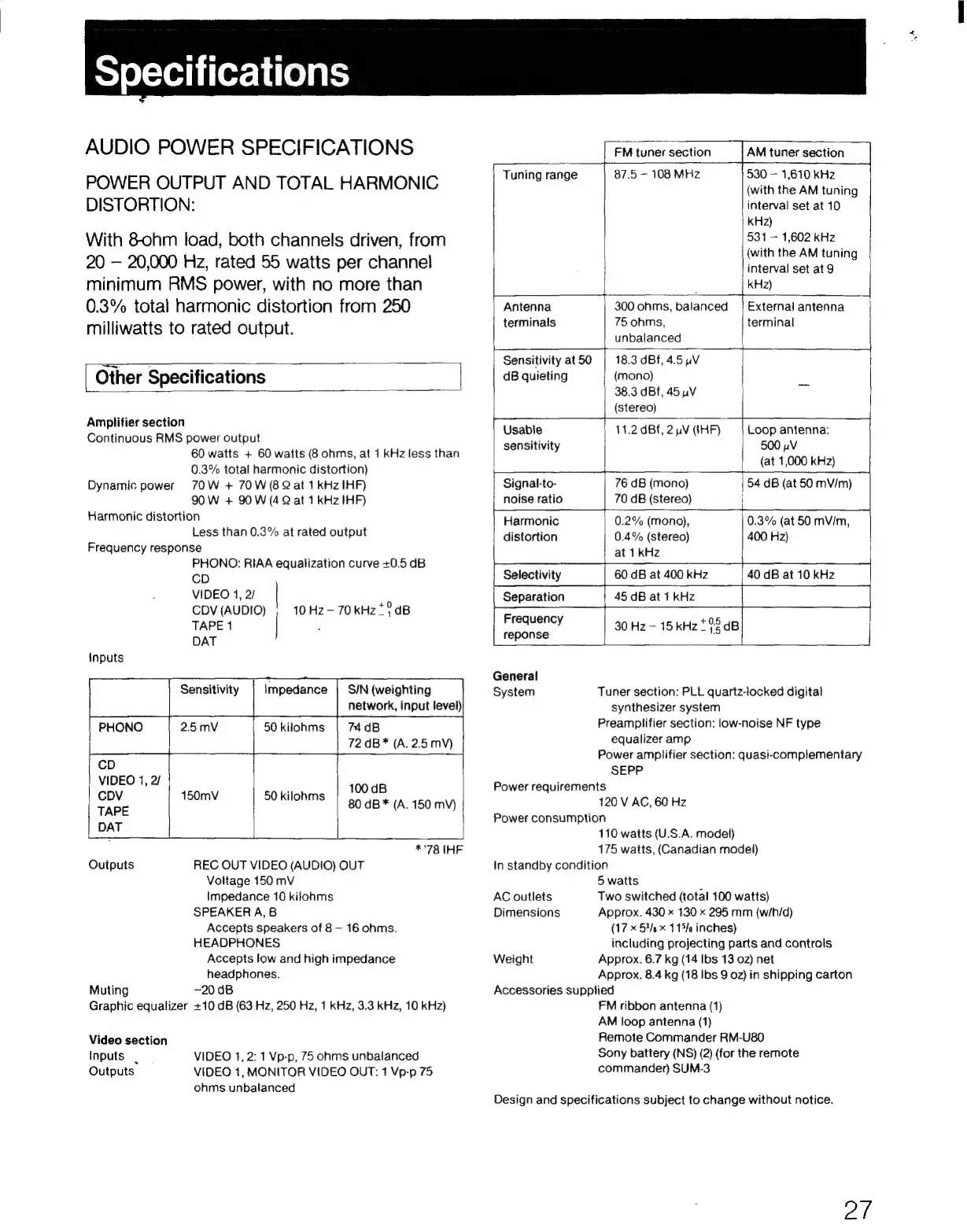

Sony STR-AV500 - Technical Specifications

SY elsYor titers hile) ats
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 8-ohm load, both channels driven, from
20 — 20,000 Hz, rated 55 watts per channel
minimum RMS power, with no more than
0.3% total harmonic distortion from 250
milliwatts to rated output.
| Other Specifications
Amplifier section
Continuous RMS power output
60 watts + 60 watts (8 ohms, at 1 KHz less than
0.3% total harmonic distortion)
70W + 70 W (8 Q at 1 KHz IHF)
90 W + 90 W (4 at 1 kHz IHF)
Harmonic distortion
Less than 0.3% at rated output
Frequency response
PHONO: RIAA equalization curve +0.5 dB
Dynamic power
CD
VIDEO 1, 2/ |
CDV (AUDIO) 10 Hz- 70 kHz *°dB
TAPE 1 | ‘
DAT
inputs
| Sensitivity Impedance | S/N (weighting
network, input level)
ie =
PHONO 2.5 mV 50 kilohms 74dB
72 dB* (A. 2.5 mV)
eon +—
cD
VIDEO 1, 2/ |
: ; 100 dB
CDV 150mV 50 kilonhms
TAPE 80 dB* (A. 150 mV)
DAT |
*°78 IHE
Outputs REC OUT VIDEO (AUDIO) OUT
Voltage 150 mV
Impedance 10 kilohms
SPEAKER A, B
Accepts speakers of 8 — 16 ohms.
HEADPHONES
Accepts low and high impedance
headphones.
Muting ~20 dB
Graphic equalizer +10 dB (63 Hz, 250 Hz, 1 kHz, 3.3 kHz, 10 kHz)
Video section
Inputs |
Outputs
VIDEO 1, 2: 1 Vp-p, 75 ohms unbalanced
VIDEO 1, MONITOR VIDEO OUT: 1 Vp-p 75
ohms unbalanced
i FM tuner section AM tuner section yi
87.5 — 108 MHz 530 — 1,610 kHz
(with the AM tuning
interval set at 10
kHz)
531 — 1,602 kHz
Tuning range
(with the AM tuning
| interval set at 9
; kHz)
S16 oT
Antenna 300 ohms, balanced | External antenna
terminals 75 ohms, terminal
unbalanced
a0 J
Sensitivity at 50 18.3 dBf, 4.5 pV
dB quieting (mono)
38.3 dBF, 45 pV =
(stereo)
Usable | 11.2 dBf, 2 nV (IHF) Loop antenna:
sensitivity 500 pV
| Se (at 1,000 kHz)
Signal-to- 76 dB (mono) 54 dB (at 50 mV/m)
noise ratio 70 dB (stereo) j
- t a5 al
Harmonic 0.2% (mono), 0.3% (at 50 mV/m,
distortion 0.4% (stereo) 400 Hz)
at 1 kHz
60 dB at 400 kHz
45 dB at 1 kHz
—
Selectivity 40 dB at 10 kHz
Separation
Frequenc
panies 30 Hz — 15 kHz * 95 dB
reponse
General
System Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type
equalizer amp
Power amplifier section: quasi-complementary
SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
110 watts (U.S.A. model)
175 watts, (Canadian model)
In standby condition
5 watts
AC outlets Two switched (total 100 watts)
Dimensions Approx. 430 « 130 x 295 mm (w/h/d)
(17 x 5s x 115/e inches)
including projecting parts and controls
Weight Approx. 6.7 kg (14 Ibs 13 02) net
Approx. 8.4 kg (18 Ibs 9 oz) in shipping carton
Accessories supplied
FM ribbon antenna (1)
AM loop antenna (1)
Remote Commander RM-U80
Sony battery (NS) (2) (for the remote
commander) SUM-3
Design and specifications subject to change without notice.
