Sony STR-DE595 - Fm Stereo/fm-am Receiver User Manual

L
R
L
R
L
R
L
R
L
R
Y
P
B/BÐY
P
R/RÐY
IMPEDANCE USE 8-16½
AM
DIGITAL
ANTENNA
MONITOR
COMPONENT VIDEO
SPEAKERS
SUB
WOOFER
VIDEO 1
VIDEO 2 DVDMD/TAPE
CD / SACD
MULTI CH IN
OPTICAL
VIDEO 2
IN
CD/
SACD
IN
DVD IN
COAXIAL
FRONT SURROUND
SUB
WOOFER
CENTER
IN OUT
IN
AUDIO IN AUDIO IN AUDIO OUT AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
AUDIO
OUT
FRONT B FRONT A CENTER SURROUND
DVD IN VIDEO 2
IN
MONITOR
OUT
R
R
L
L
R
R
L
L
R
R
L
L
+ + + +
Ð
+
Ð
+
Ð
Manufactured under license from Digital Theater Systems, Inc.
US Pat.No.5,451,942, 5,956,674, 5,974,380, 5,978,762 and
other world-wide patents issued and pending. "DTS" and "DTS Digital
Surround" are registered trademarks of Digital Theater Systems, Inc.
Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved.
AC 120V 60Hz 210W
FM STEREO/FM-AM RECEIVER
STR-DE595
MODEL NO.
SERIAL NO.
MADE IN MALAYSIA
MANUFA CTURED UNDER LICENSE FROM DOLBY LABORATORIES
"DOLBY","PRO LOGIC" AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
Specifications
Amplifier Section
• 5 Channel Power Rating:
100 Watts Per Channel x 5
(8 ohms 1 kHz, THD 0.7%)
• Stereo Power Rating: 90
Watts Per Channel x 2
(8 ohms 40 Hz-20 kHz,
THD .09%)
• FM Tuning Range:
87.5 - 108 MHz
• AM Tuning Range:
530 - 1710 kHz
• Display Type (8 Seg.)
• Line Input S/N Ratio:
96 dB
• Frequency Response Line
(CD): 10 Hz-70kHz
+.5 dB/-2 dB
• Line (CD) Input Sensitivity
Impedance:
500mV/50 kohm
• Record Out Level Impedance:
500mV/10 k ohm
• Subwoofer Pre-Out Level
Impedance: 2V/1 k ohm
Video Section
• Composite Video Input
Sensitivity Impedance:
1 Vp-p/75 ohm
• Component Video(Y/Pb/Pr)
Input Sensitivity Impedance:
(Y) 1 Vp-p/75 ohm;
(Pb) .7 Vp-p/75 ohm;
(Pr) .7 Vp-p/75 ohm
• Composite Video Output
Sensitivity Impedance:
1 Vp-p/75 ohm
• Component Video(Y/Pb/Pr)
Output Sensitivity
Impedance:
(Y) 1 Vp-p/75 ohm;
(Pb) .7 Vp-p/75 ohm;
(Pr) .7 Vp-p/75 ohm
General
• Power Requirements:
120V AC, 60 Hz
• Power Consumption:
210 Watts
• Power Consumption
(Standby): 0.3 Watts
Accessories
Supplied Accessories
• Instruction Manual
• Remote Model:
RM-U306A
• AM Loop Antenna
• FM Wire Antenna
Weights & Measures
• Approx. Dimensions (w/h/d):
17" x 5.7" x 11.8"
(430 x 145 x 300mm)
• Approx. Weight:
15.4 lbs. (7 kg)
UPC Code
• 027242618190
Key Technology
Specifications
©2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Digital Cinema Sound and UniCommander are trademarks of Sony.
Dolby Digital and Dolby Pro Logic II are registered trademarks of Dolby Laboratories Licensing Corporation. dts is a registered trademark of Digital Theater Systems, Inc. All other trademarks and
logos are property of their respective owners.
STR-DE595
Receiver

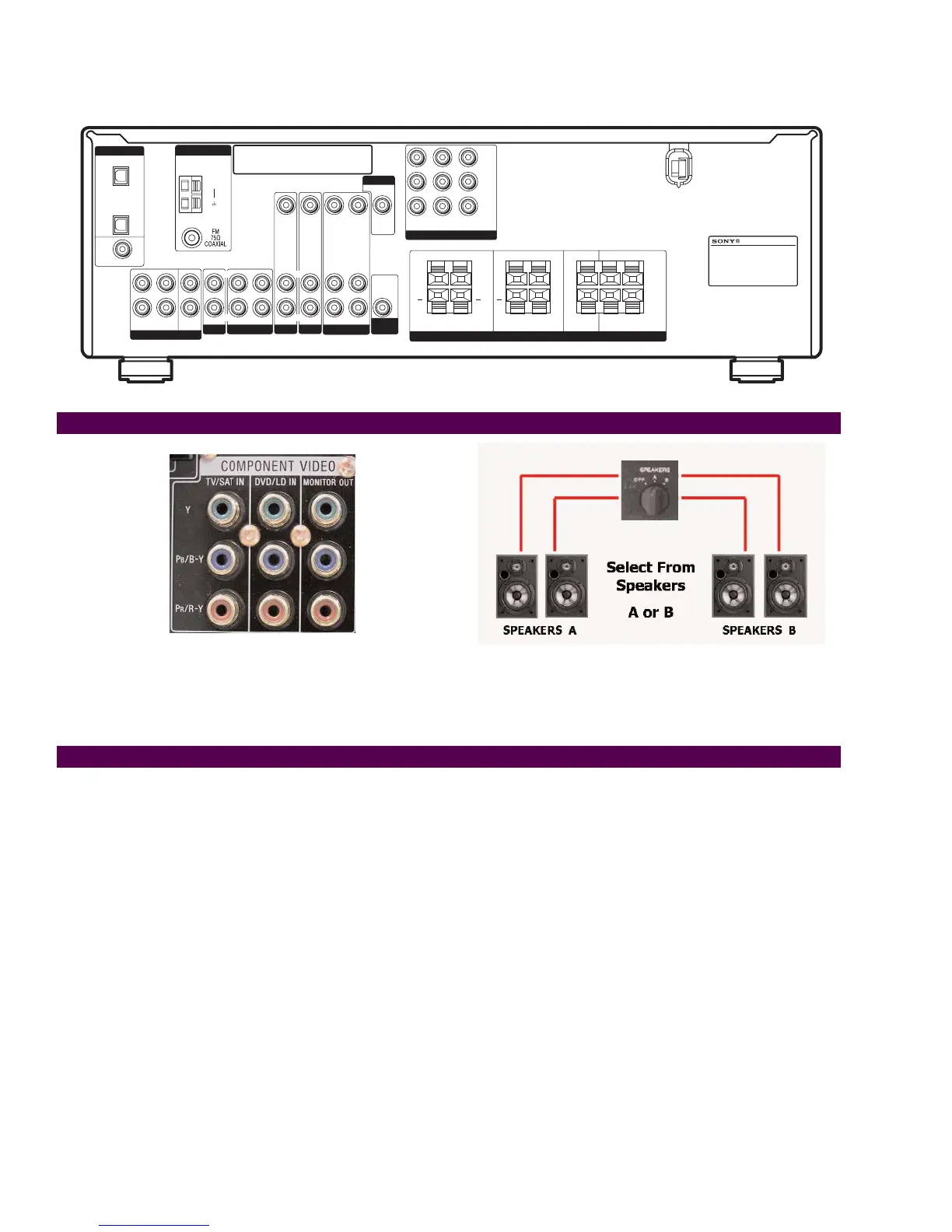

Component Video Switching
2 Component Video Inputs,1 Component Video Output
HD Switching, 80 MHz Bandwidth
Ensures Minimal Signal Loss
A/B Switching

Sony STR-DE595 - Fm Stereo/fm-am Receiver Specifications

General

Brand	Sony
Model	STR-DE595 - Fm Stereo/fm-am Receiver
Category	Receiver
Language	English
