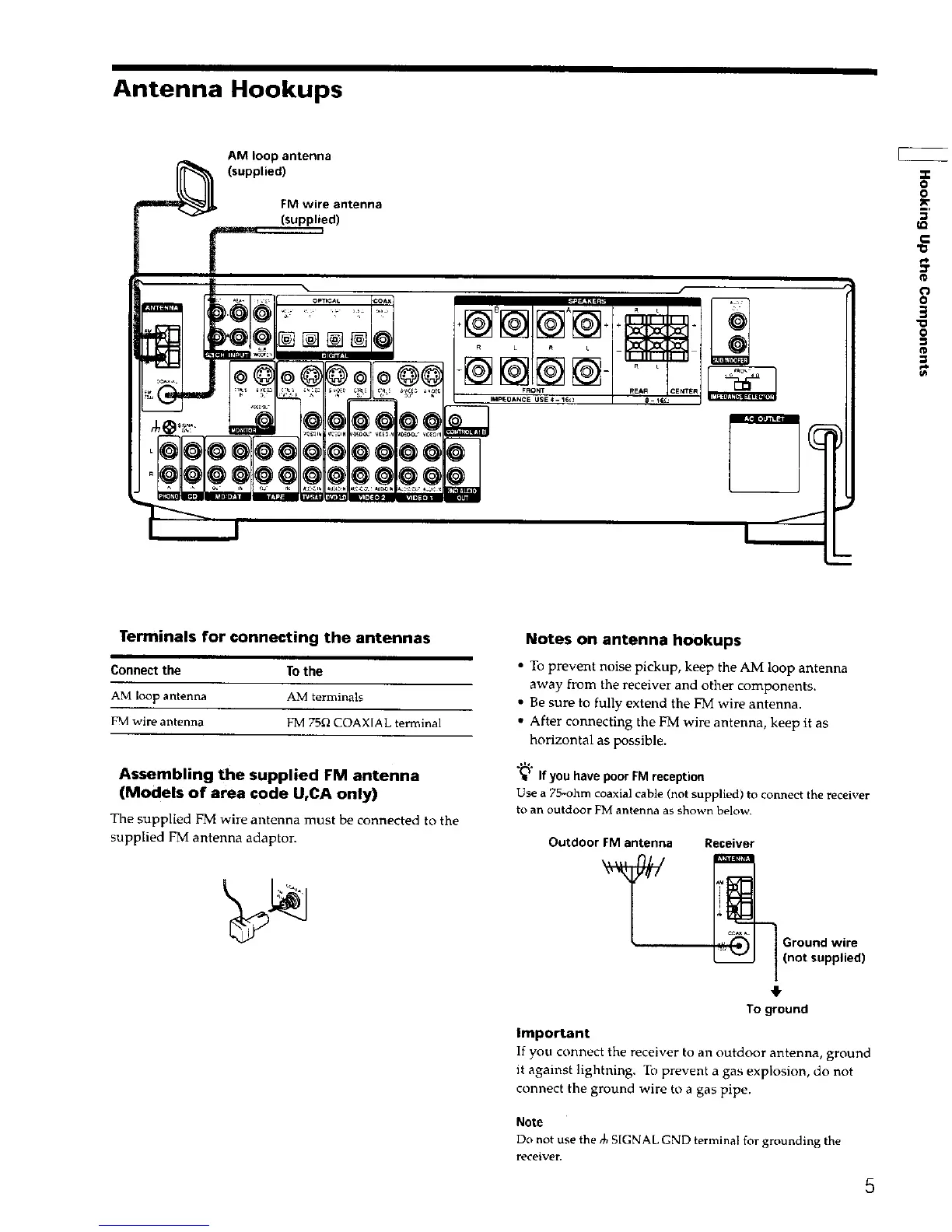

Antenna Hookups
AM loop antenna
(supplied)
FM wire antenna
(supplied)
% r
_ ,_. _ • E_ Op,lCAL coax
+ + + .
@ 0 + -
*b:COL"
C
@
oi
o
o
e=
"o
o
3
0
e_
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75f_ COAXIAL terminal
Assembling the supplied FM antenna
(Models of area code U,CA only)
The supplied FM wire antenna must be connected to the
supplied FM antenna adaptor.
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
"(_ Ifyouhave poorFM reception
Use a 75-ohm coaxial cable (not s_pplied) to connect the receiver
to an outdoor FM antenna as shown below,
Outdoor FM antenna
Important
Receiver
_ Ground wire
] (not supplied)
To ground
]f you connect the rece vet ( a _outdoor antenna, ground
it against lightning. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Note
Do not use the _ SIGNAL GND termina_ for grounding the
receiver,
5
