Description and location of parts

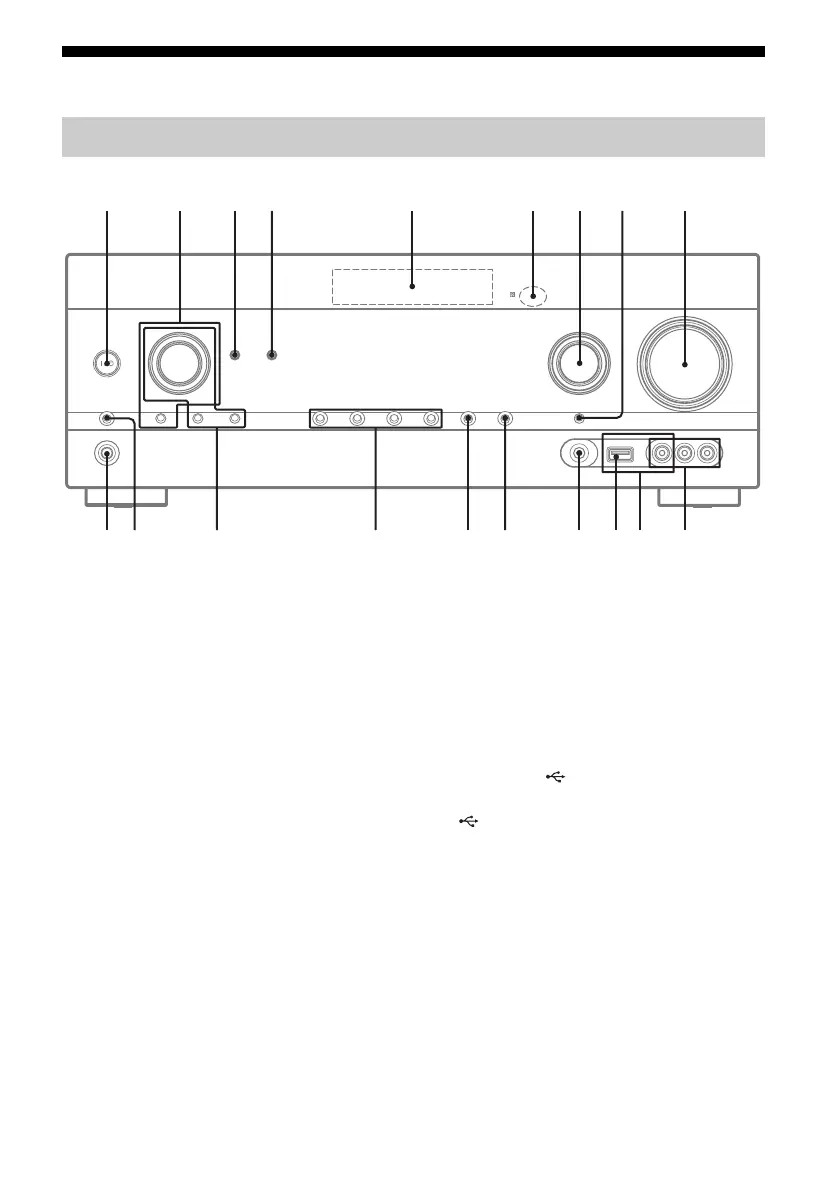

Front panel
qj
12
34 5
ql
qk
8
qf
qgqh q;qsqd qa
67 9
A ?/1 (on/standby) (page 34, 52, 58)
B TONE, TONE MODE
Press TONE MODE repeatedly to select BASS
or TREBLE, then turn TONE to adjust the level.
C SOUND OPTIMIZER (page 58)
D AUTO VOL
Adjust the volume automatically depending on
the input signal or content from the connected
equipment (ADVANCED AUTO VOLUME
function).
This function is useful, for example, when the
sound of a commercial is louder than the TV
programs.
Notes
• Be sure to reduce the volume level before you
turn off this function.
• As this function is available only when Dolby
Digital, DTS or Linear PCM signals are input,
the sound may suddenly increase when you
switch to other formats.
• This function does not work in the following
cases.
– Linear PCM signals with a sampling
frequency of more than 48 kHz are being
received.
– Dolby Digital Plus, Dolby TrueHD, DTS
96/24, DTS-HD Master Audio, or DTS-HD
High Resolution Audio signals are being
received.
E Display panel (page 10)
F Remote control sensor
Receives signals from remote control.
G INPUT SELECTOR (page 44, 50, 62)
H INPUT MODE (page 62)
I MASTER VOLUME (page 43)
J VIDEO 2 IN jacks (page 30)
K iPhone/iPod terminals (page 29)
Connects the (USB) port and the video jack
to output audio/video from iPhone/iPod.
L (USB) port (page 32)
M AUTO CAL MIC jack (page 37)
N DISPLAY (page 80)
O DIMMER
Adjusts the brightness of the display panel in 3
levels.
P 2CH/A.DIRECT, A.F.D., MOVIE
(HD-D.C.S.), MUSIC (page 54, 56)
Q TUNING MODE, MEMORY/ENTER,
TUNING
Press to operate a tuner (FM/AM).
Turn TUNING to scan a station.
R SPEAKERS (page 36)
S PHONES jack (page 87)
