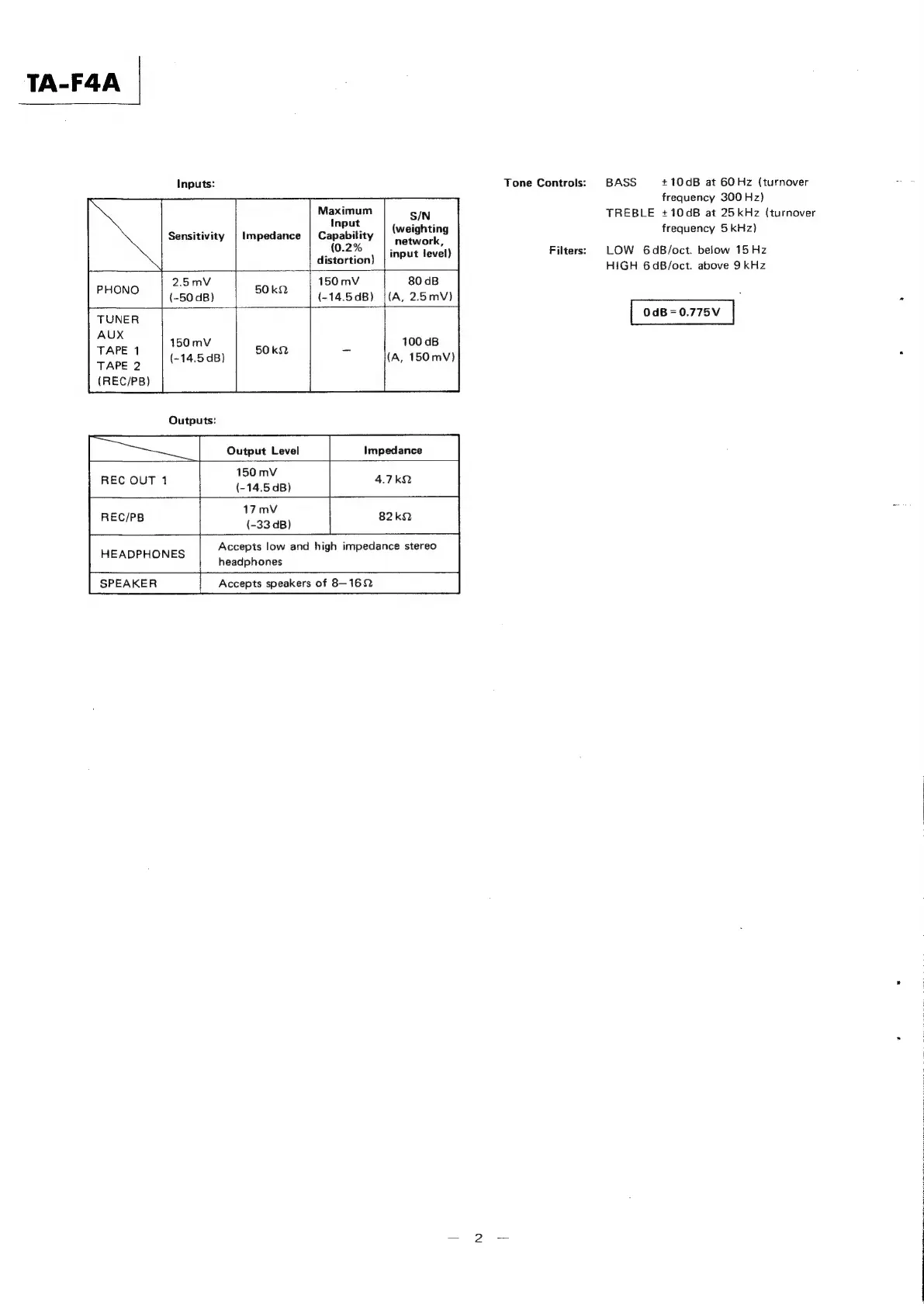

Sony TA-F4A Service Manual

TA-F4A
Inputs:
Maximum
Input S/N
Sensitivity | Impedance | Capability
{0.2%
distortion)
(weighting
network,
input level)
2.5mV 150 mV 80 dB
PH
nee {-50 dB) (-14.5dB) (A, 2.5mV)
TUNER
AUX
TAPE 1
TAPE 2
(REC/PB)
150 mV
(-14.5 dB)
Outputs:
Output Level Impedance
150 mV
E :
REC OUT 1 (-14.5 dB) 4.7k2
REC/PB poe 82k2
Accepts low and high impedance stereo
headphones
SPEAKER Accepts speakers of 8-162
HEADPHONES
Tone Controls:
Filters:
BASS +10dB at 60 Hz (turnover
frequency 300 Hz)
TREBLE +10dB at 25kHz (turnover
frequency 5 kHz)
LOW 6dB/oct. below 15 Hz
HIGH 6dB/oct. above 9 kHz
0dB=0.775V

Sony TA-F4A Specifications

General

Brand	Sony
Model	TA-F4A
Category	Amplifier
Language	English
