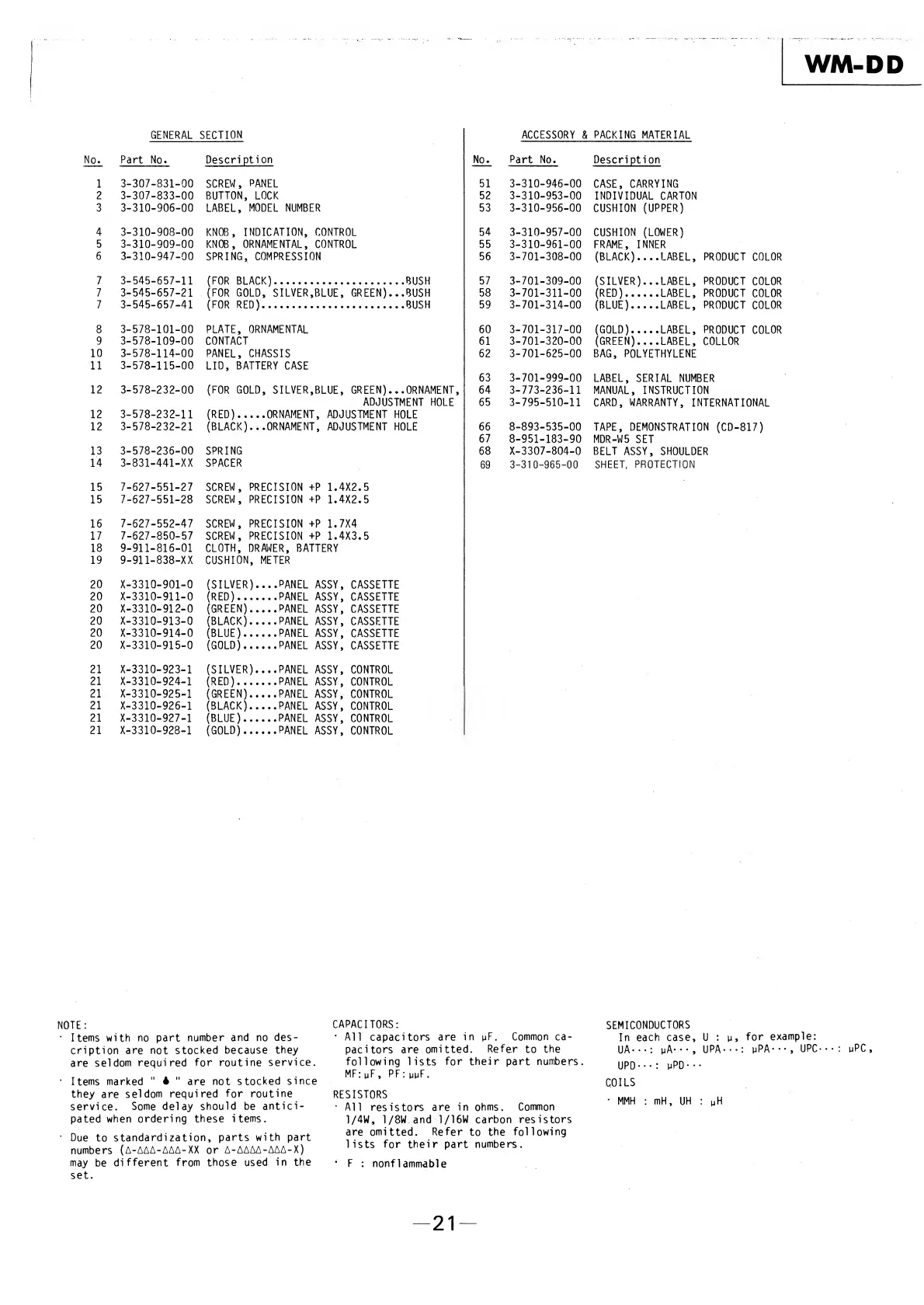

Sony WM-DD Service Manual

GENERAL
SECTION
ACCESSORY & PACKING MATERIAL
No.
Part No.
Description No.
Part No. Description
1
3-307-831-00 SCREW, PANEL
51
3-310-946-00
CASE, CARRYING
2
3-307-833-00
BUTTON, LOCK 52
3-310-953-00
INDIVIDUAL CARTON
3 3-310-906-00 LABEL, MODEL NUMBER 53
3-310-956-00
CUSHION (UPPER)
4 3-310-908-00
KNOB, INDICATION, CONTROL
54
3-310-957-00 CUSHION (LOWER)
5
3-310-909-00 KNOB, ORNAMENTAL, CONTROL 55
3-310-961-00 FRAME, INNER
6
3-310-947-00
SPRING, COMPRESSION 56 3-701-308-00
(BLACK)_LABEL, PRODUCT COLOR
7
3-545-657-11 (FOR BLACK)..
...BUSH
57
3-701-309-00
(SILVER)...LABEL, PRODUCT COLOR
7
3-545-657-21
(FOR GOLD, SILVER,BLUE, GREEN). ...BUSH
58
3-701-311-00
(RED).LABEL, PRODUCT
COLOR
7 3-545-657-41
(FOR RED).
...BUSH 59
3-701-314-00
(BLUE).LABEL, PRODUCT COLOR
8
3-578-101-00
PLATE, ORNAMENTAL 60 3-701-317-00
(GOLD).LABEL, PRODUCT COLOR
9 3-578-109-00 CONTACT
61
3-701-320-00
(GREEN)....LABEL, COLLOR
10
3-578-114-00
PANEL, CHASSIS 62 3-701-625-00
BAG, POLYETHYLENE
11 3-578-115-00 LID, BATTERY CASE
63
3-701-999-00
LABEL, SERIAL NUMBER
12
3-578-232-00 (FOR GOLD, SILVER,BLUE, GREEN). ...ORNAMENT, 64
3-773-236-11
MANUAL, INSTRUCTION
ADJUSTMENT HOLE 65 3-795-510-11
CARD, WARRANTY, INTERNATIONAL
12
3-578-232-11 (RED).ORNAMENT, ADJUSTMENT
HOLE
12 3-578-232-21
(BLACK)...ORNAMENT, ADJUSTMENT HOLE 66
8-893-535-00
TAPE, DEMONSTRATION (CD-817)
67
8-951-183-90 MDR-W5 SET
13 3-578-236-00
SPRING 68
X-3307-804-0 BELT ASSY, SHOULDER
14 3-831-441-XX SPACER
69
3-310-965-00
SHEET, PROTECTION
15 7-627-551-27 SCREW, PRECISION +P 1.4X2.5
15
7-627-551-28 SCREW, PRECISION +P 1.4X2.5
16 7-627-552-47 SCREW, PRECISION +P 1.7X4
17 7-627-850-57
SCREW, PRECISION +P 1.4X3.5
18 9-911-816-01
CLOTH, DRAWER, BATTERY
19
9-911-838-X X
CUSHION, METER
20 X-3310-901-0 (SILVER)-PANEL ASSY, CASSETTE
20 X-3310-911-0 (RED).......PANEL ASSY, CASSETTE
20 X-3310-912-0 (GREEN).PANEL ASSY, CASSETTE
20 X-3310-913-0 (BLACK).PANEL ASSY, CASSETTE
20 X-3310-914-0 (BLUE).PANEL ASSY, CASSETTE
20 X-3310-915-0 (GOLD).PANEL ASSY, CASSETTE
21 X-3310-923-1 (SILVER)....PANEL ASSY, CONTROL
21 X-3310-924-1 (RED).PANEL ASSY, CONTROL
21 X-3310-925-1 (GREEN).PANEL ASSY, CONTROL
21 X-3310-926-1 (BLACK).PANEL ASSY, CONTROL
21 X-3310-927-1 (BLUE).PANEL ASSY, CONTROL
21 X-3310-928-1 (GOLD).PANEL ASSY, CONTROL
NOTE:
• Items with no part number and no des¬
cription are not stocked because they
are seldom required for routine service.
• Items marked " 4 " are not stocked since
they are seldom required for routine
service. Some delay should be antici¬
pated when ordering these items.
’ Due to standardization, parts with part
numbers (A-AAA-AAA-XX or A-AAAA-AAA-X)
may be different from those used in the
set.
CAPACITORS:
• All capacitors are in pF. Common ca¬
pacitors are omitted. Refer to the
following lists for their part numbers.
MF: U F , PF: y V iF.
RESISTORS
• All resistors are in ohms. Common
1/4W, 1/8W and 1/16W carbon resistors
are omitted. Refer to the following
lists for their part numbers.
• F : nonflammable
SEMICONDUCTORS
In each case, U : y, for example:
UA---: pA-••, UPA---: pPA-*-, UPC---: pPC ,
UPD---: pPD• • •
COILS
• MMH : mH, UH : pH
21
