Star S1108 User Manual

© Copyright 2015 Star Water Systems. All rights reserved.
4
EXTENSION
GROUND LEVEL
COMPLETE INSTALLATION
OF DRAIN LINES OR
WEEP TILES
"SLOTTED" BASIN
20"
EXCAVATED PIT
DRAIN LINES
OR WEEP TILES
38 1/8"
CRAWL SPACE
CRAWL SPACE
SLOPE AWAY FROM
STRUCTURE
DRAINAGE GUTTER
DRAINAGE GUTTER
POOLING
WATER
LOCATE BASIN AT
"LOW" SPOT
LOCATE BASIN AT
"LOW" SPOT
POOLING
WATER
FOUNDATION
FOUNDATION
EXTERIOR APPLICATION
CRAWL SPACE APPLICATION
STRUCTURE
STRUCTURE

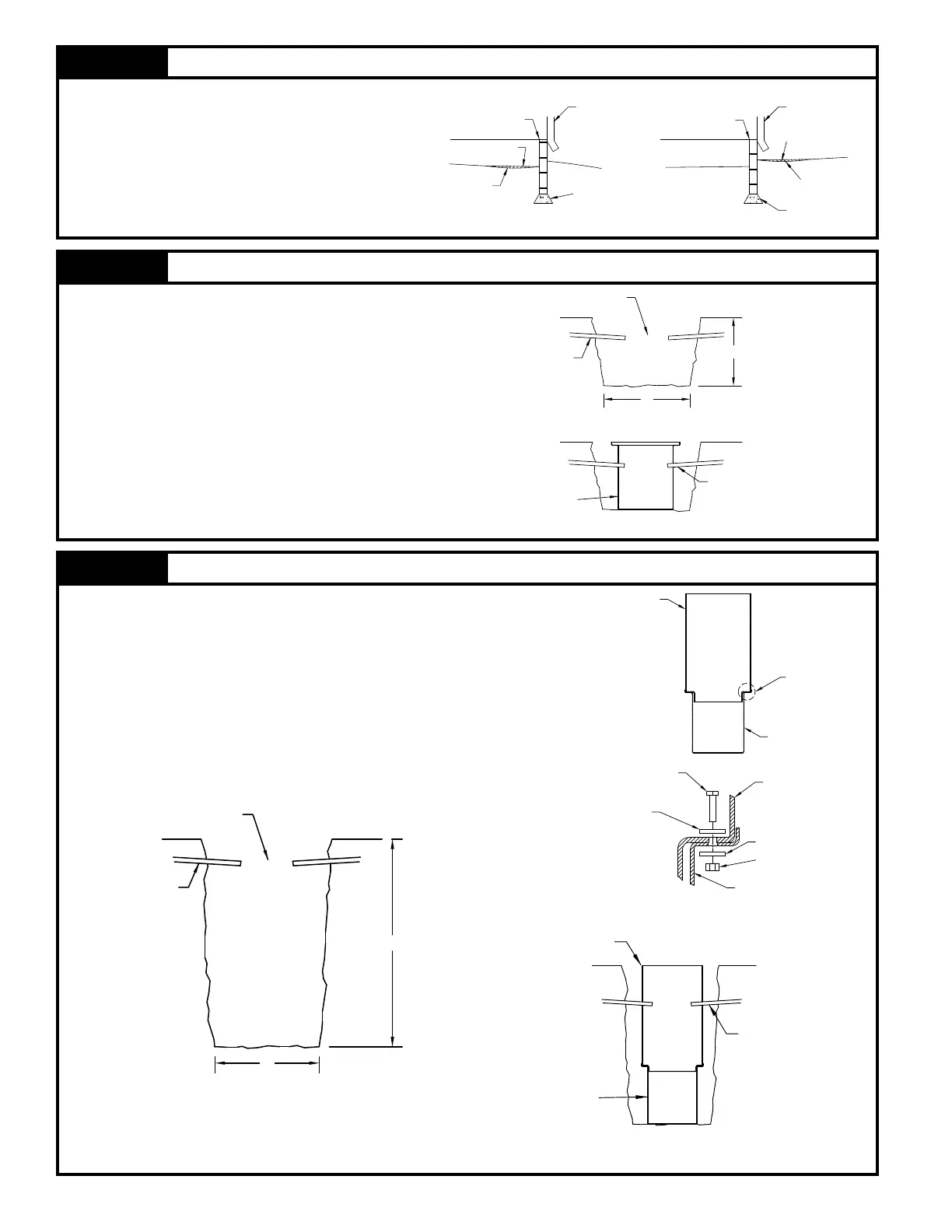

STEP 1 Site Selection for Drain Basin
Note: If freezing of the discharge line is possible, refer to Step 6.
1.1) Select a location that is a “low spot” or an area that naturally
collects water. Refer to Figure 1.1. Grade crawl space so
water will drain toward pit. Place plastic sheeting on ground.
Note: If weep tiles or drain lines are to be used, then select a basin
location that will provide the most efcient drainage.
Figure 1.1
STEP 2 Installation of Basin (Typical Crawl Space Application)
Note: Proceed to STEP 2A if installing “Slotted” basin with ex-
tension kit.
2.1) Excavate the site to the dimension shown in Figure 2.1.
Note: If weep tiles or drain lines are to be used, rough-in plumbing
should be completed at this time.
2.2) Lower basin into pit (Refer to Figure 2.2). Complete instal-
lation of weep or drain lines.
STEP 2A Installation of “Slotted” Basin with Optional Extension Kit
2A.1) Excavate the site to the dimensions shown in Figure 2A.1.
Note: If weep tiles or drain lines are to be used, rough-in plumbing should be completed
at this time.
2A.2) Attach the extension to the basin with the four bolts provided in the extension kit.
Refer to Figure 2A.2.
2A.3) Lower basin into pit and complete the installation of weep tiles or drain lines. Refer
to Figure 2A.3.
Note: If concrete is to be poured around the top of the extension, then make the pit
depth 34½” to provide for access.
SK1798
GROUND LEVEL
14 7/8"
20"
GROUND LEVEL
EXCAVATED PIT
DRAIN LINES
OR WEEP TILES
SLOTTED BASIN
COMPLETE INSTALLATION
OF DRAIN LINES OR
WEEP TILES.
Figure 2.1
Figure 2.2
SK1800
Figure 2A.1
Figure 2A.3
Figure 2A.2
SK1803
SK1802
SK1801
DETAIL "A"
WASHER
DRILL 4 THROUGH
HOLES AROUND EXTENSION
USING HOLES IN "SLOTTED"
BASIN TO LOCATE HOLES
ON EXTENSION
(SEE DETAIL A)
(4) #10-24X1" LONG SCREWS
EXTENSION KIT
"SLOTTED" BASIN WALL
EXTENSION KIT WALL
NUT
WASHER
"SLOTTED" BASIN
DETAIL "A"
