Stiga PARK COMPACT User Manual

47
ENGLISH
EN

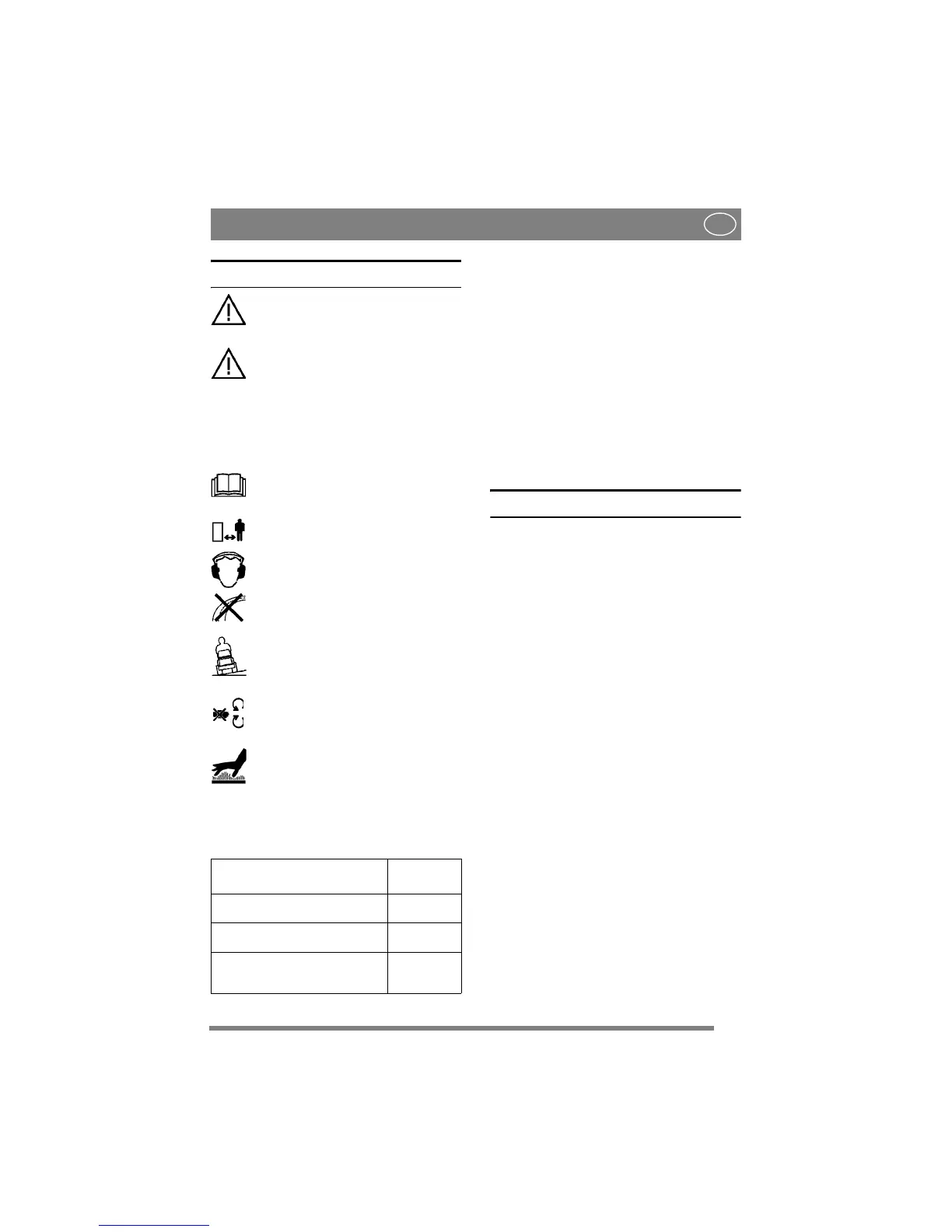

1 GENERAL
This symbol indicates WARNING. Seri-
ous personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for use
and the accompanying pamphlet
“SAFETY INSTRUCTIONS” careful-
ly, before starting up the machine.
1.1 SYMBOLS
The following symbols appear on the machine.
They are there to remind you of the care and atten-
tion required during use and maintenance.
This is what the symbols mean:
Warning!
Read the instruction manual and the safety
manual before using the machine.
Warning!
Watch out for discarded objects. Keep on-
lookers away.
Warning!
Always wear hearing protectors.
Warning!
This machine is not designed to be driven
on public roads.
Warning!
The machine, equipped with original ac-
cessories, must not be driven in any direc-
tion on slopes with a gradient greater than
10º.
Warning!
Risk of crushing injuries. Keep hands and
feet well away from the articulated steer-
ing joint.
Warning!
Risk of burn injuries. Do not touch the si-
lencer/catalytic converter.
1.2 Designations
Three versions of Park Compact are available and
are designated in the table below:
1.3 References
1.3.1 Figures
The figures in these instructions for use are num-
bered 1, 2, 3, etc.
Components shown in the figures are marked A, B,
C, etc.
A reference to component C in figure 2 is written
“2:C”.
1.3.2 Headings
The headings in these instructions for use are num-
bered in accordance with the following example:
“1.3.1 General safety check” is a subheading to
“1.3 Safety checks” and is included under this
heading.
When referring to headings, only the number of the
heading is normally specified. E.g. “See 1.3.1”.
2 DESCRIPTION
2.1 Transmission
2.1.1 Man
The machine is rear wheel drive.
The rear axle is equipped with a manual transmis-
sion with 5 forward gears and one reverse gear.
The rear axle is also equipped with a differential to
facilitate turning.
Front mounted tools are driven by drive belts.
2.1.2 HST
The machine is rear wheel drive.
The rear axle is equipped with a hydrostatic trans-
mission with infinitely variable forward and re-
verse gear ratios.
The rear axle is also equipped with a differential to
facilitate turning.
Front mounted tools are driven by drive belts.
2.1.3 4WD
The machine has 4-wheel drive. The power from
the engine to the drive wheels is transferred hy-
draulically. The engine drives an oil pump, which
pumps oil through the rear and front axle drives.
The front axle and rear axle are connected in se-
ries, which means that the front wheels and rear
wheels are forced to rotate at the same speed.
To make turning easier, both axles are equipped
with differential.
Front-mounted implements are powered via drive
belts.
2.2 Steering
The machine is articulated. This means that the
chassis is divided into a front and a rear section,
which can be turned in relation to each other.
Machine
Designa-
tion
Compact with manual transmis-
sion.
Man
Compact HST with hydrostatic
transmission.
HST
Compact 4WD with hydrostatic
transmission and four wheel
drive.
4WD
