Stiga Park UNLIMITED PLUS 2009 User Manual

Edition Manual Chapter Page
2014-09-20 Workshop Manual, GGP Park 4 Hydraulic system 6
4.3.2 Functional description
Driving

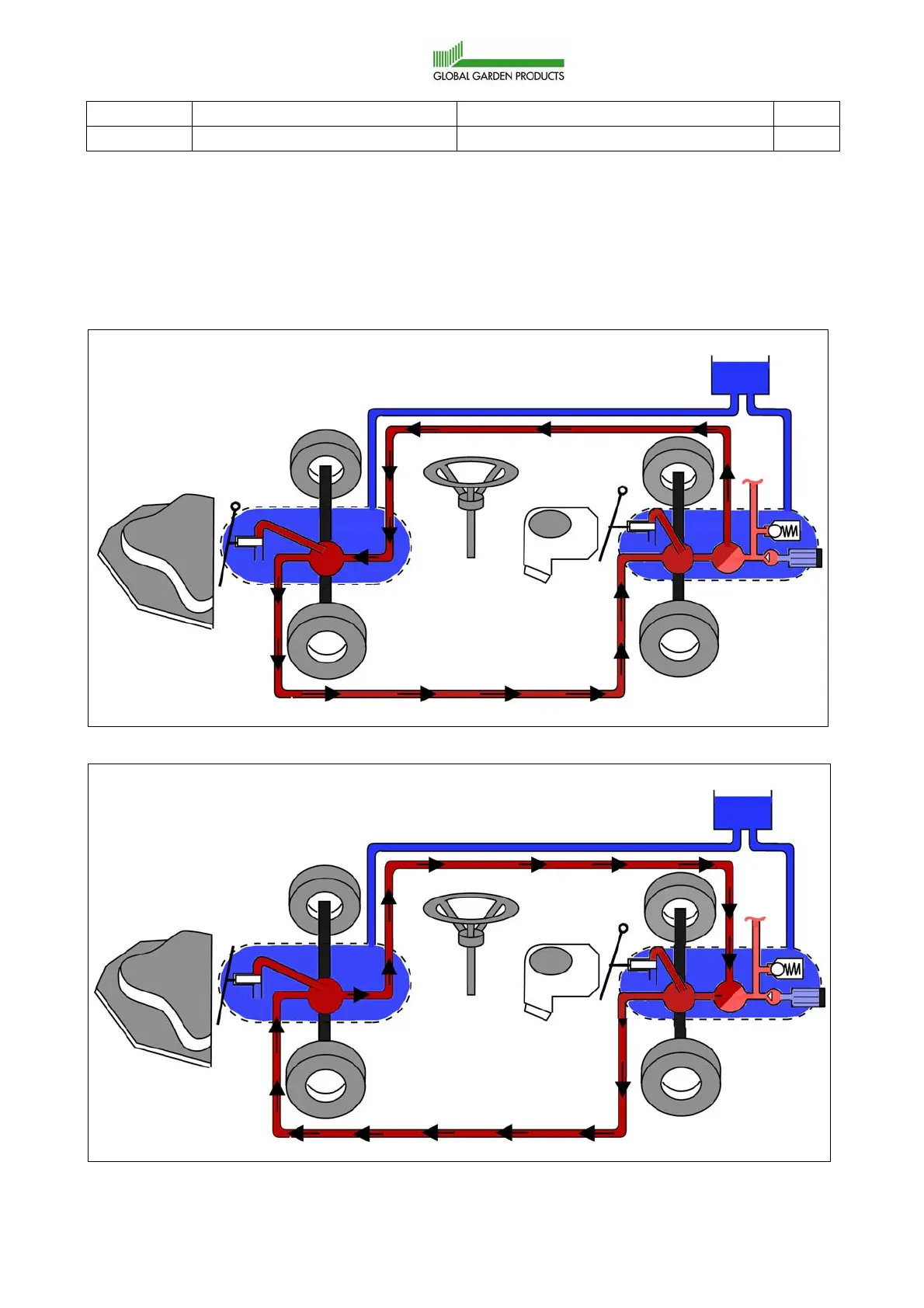

The oil flows when driving forwards respectively backwards are showh in the diagrams
below.
117
146
Driving forward - Integrated pump
Driving backward - Integrated pump
B
A
9
10
2
7
3
4
5
6
B
A
9
10
2
7
3
4
5
6
8
11
13
12
8
11
13
12
1
1
