3DUWVDQG&RQWUROV
8
9
10
11
2
5
1
3
4
6
7
12
13
343BA060 KN

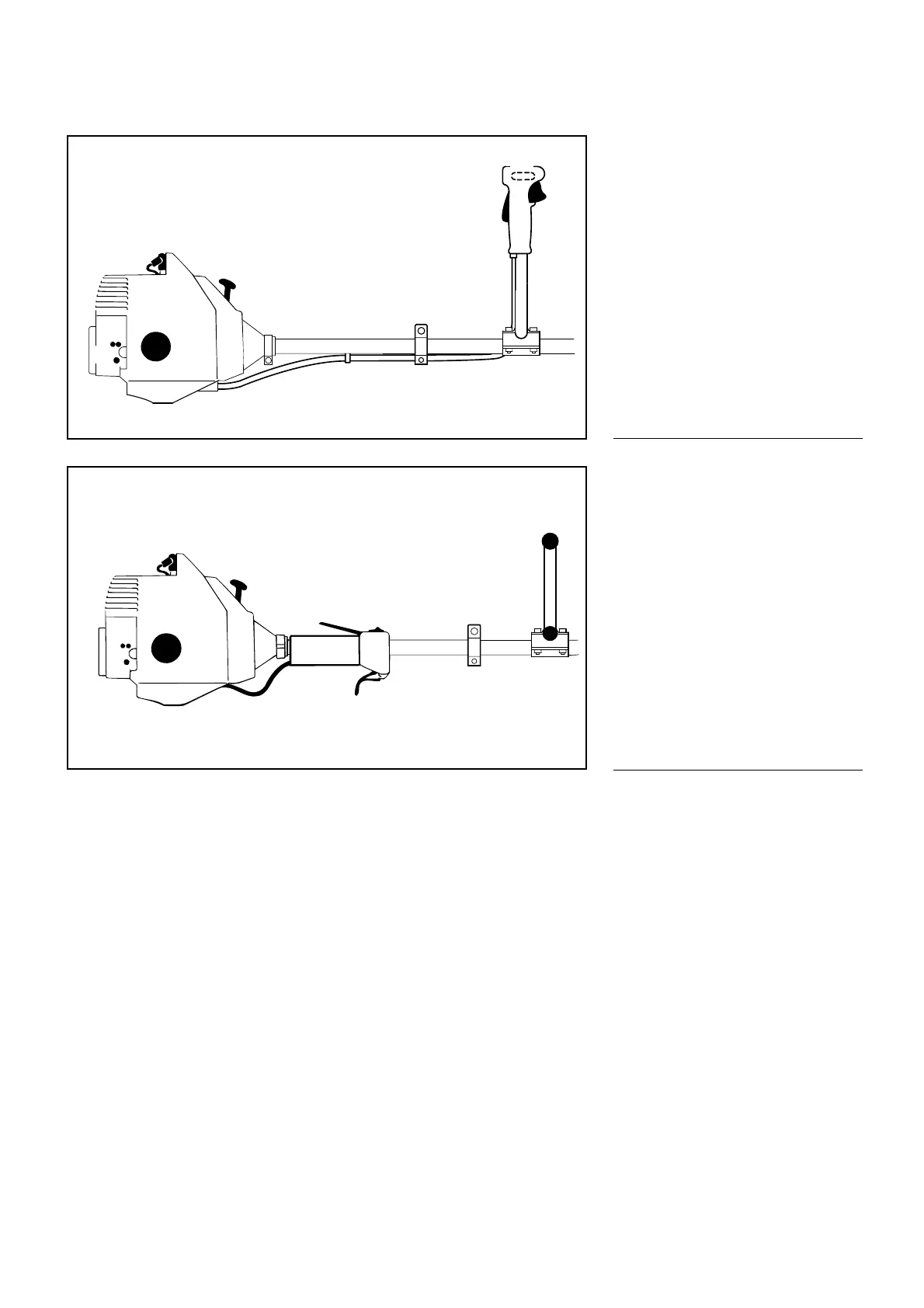

%LNH+DQGOH9HUVLRQ
1 = Bike handle
2 = Throttle trigger
3 = Throttle trigger interlock
4 = Handle support
5 = Clamp (Harness)
6 = Starter grip
7 = Spark plug boot
8 = Carburetor adjusting screws
9 = Fuel filler cap
10 = Machine support
11 = Throttle cable / stop switch wire
12 = Throttle cable retainer
13 = Slide control
-+DQGOH9HUVLRQ
1 = "J"-handle
2 = Throttle trigger
3 = Throttle trigger interlock
4 = Handle support
5 = Clamp (Harness)
6 = Starter grip
7 = Spark plug boot
8 = Carburetor adjusting screws
9 = Fuel filler cap
10 = Machine support
11 = Throttle cable/stop switch wire
14 = Stop switch
15 = Handle hose
9
1
2
3
4
5
6
7
10
11
14
8
343BA061 KN
15

