14
English / USA
FCS-KM

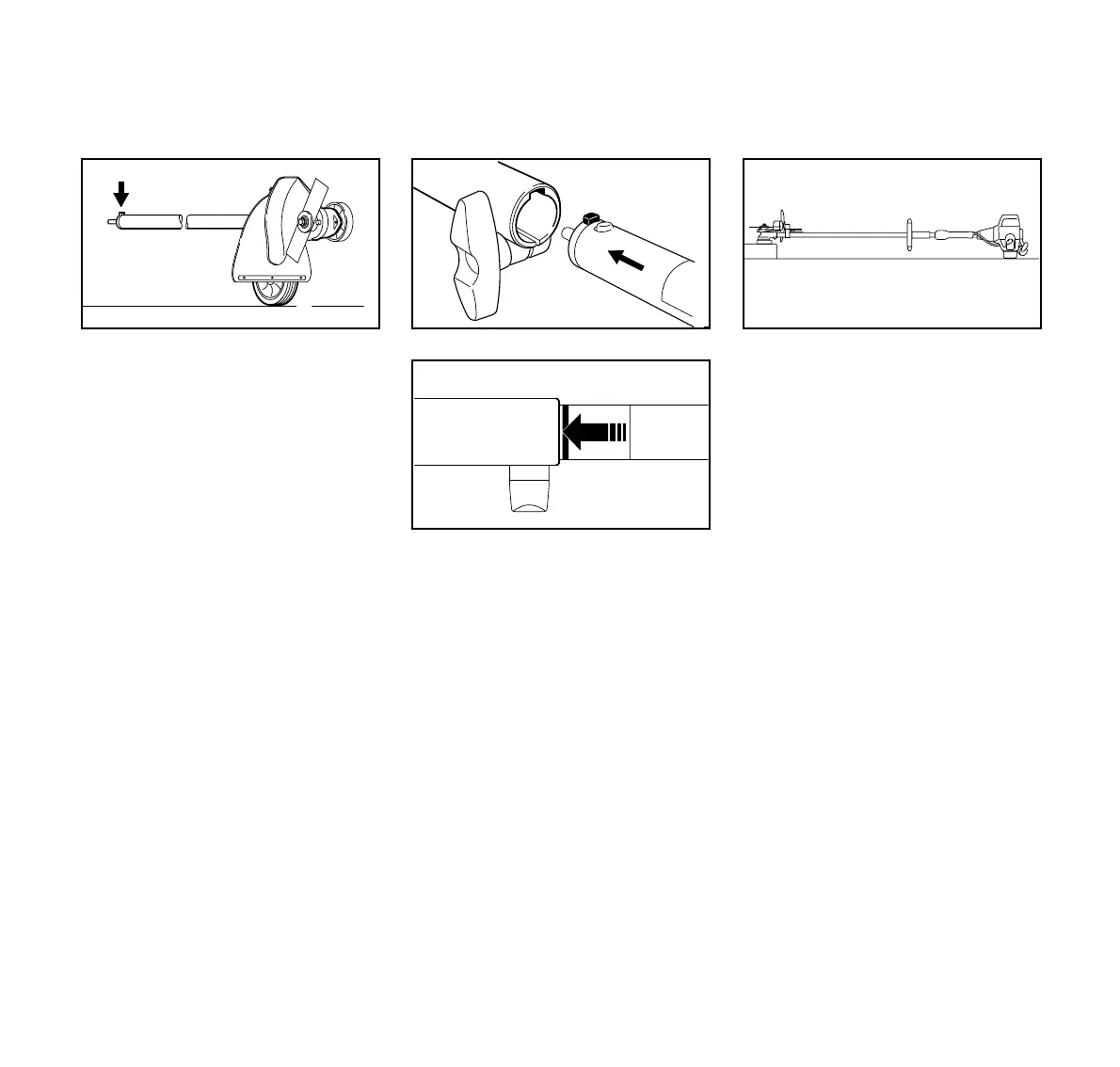

: Line up the gearbox (2) on the drive
tube (8) so that the lug (see arrow)
points vertically upwards when the
depth wheel (7) is vertical.
: Tighten down the clamp screws
firmly.
: Engage lug (1) on drive tube in
slot (2) in the coupling sleeve and
push home the drive tube as far as
stop.
: When correctly installed, the red
line (3) (arrow point) must be flush
with the end of the coupling sleeve.
: Tighten the wing screw (4) firmly.
: Reverse the above sequence to
remove the drive tube.
: Place the power edger on a
suitable support so that the blade
mounting (1) faces upwards.
406BA004 KN
7
8
2
Mounting the KombiTool
002BA132 KN
1
2
4
3
002BA133 KN
Fitting the Cutting Blade
1
245BA010 KN
