17FCS-KM
English / USA

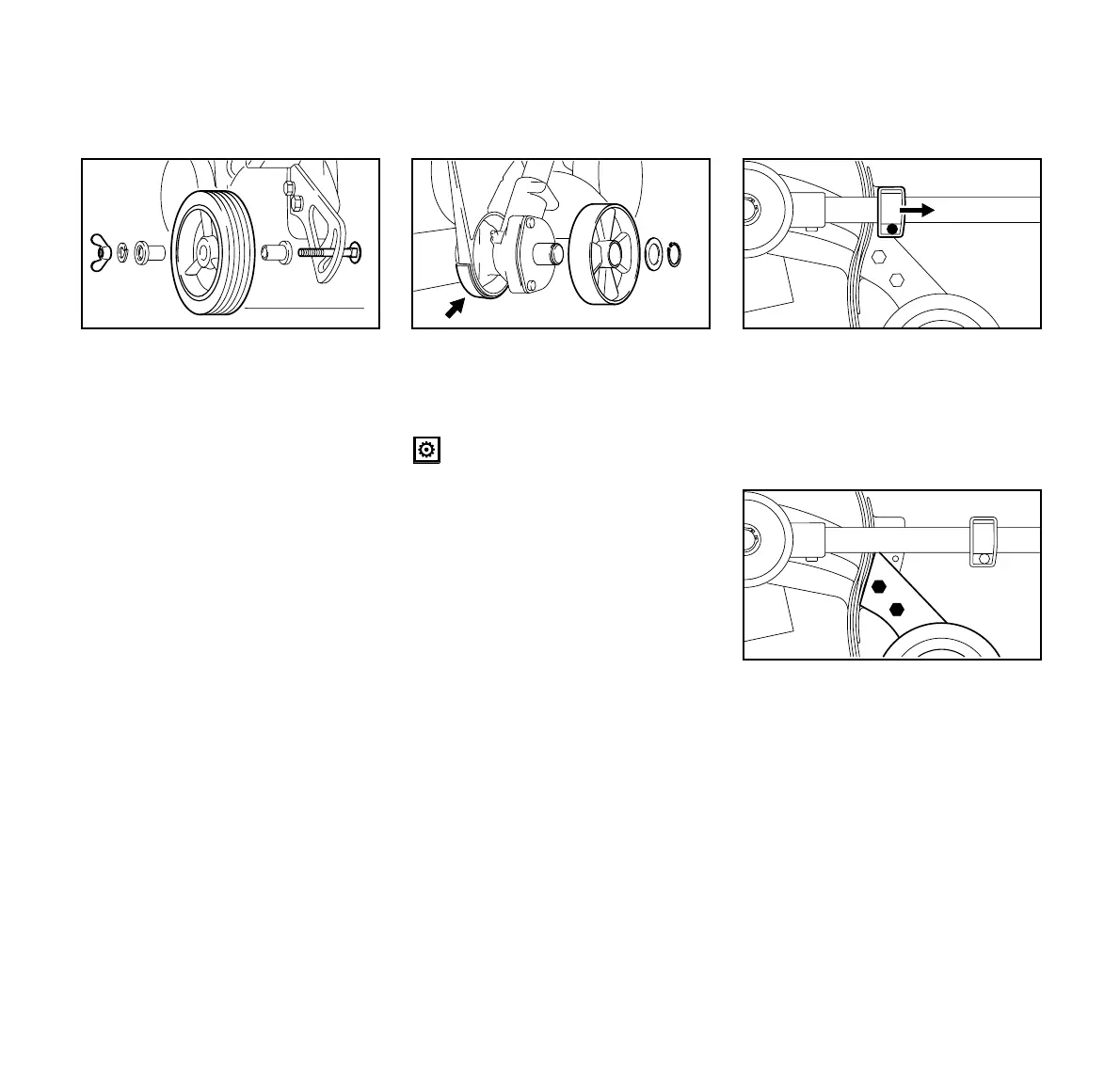

Depth wheel
Have a worn wheel replaced by your
dealer*.
: The end of the thread on screw (1)
is caulked to ensure that the
wingnut (2) does not work loose and
be lost.
A very high torque has to be applied
to remove the wingnut from the screw.
If the parts are then reassembled, the
captive function is no longer
guaranteed. In such a case have the
screw and wingnut replaced by your
dealer
* STIHL recommends a STIHL
servicing dealer
Gearbox wheel
Have a worn wheel replaced by your
dealer*.
The wheel helps protect the
gearbox from wear. If the gearbox
wheel is worn, also check the wear
guard (arrow) and the gearbox for
signs of damage – see “Checking
and Replacing the Wear Guard”.
* STIHL recommends a STIHL
servicing dealer
Removing the skirt
: Loosen the screw (1) on the
clamp (2) and slide the clamp back
along the drive tube in the direction
of the engine.
: Release screws (3) on arm (4) and
remove together with arm.
Replacing Wheels
1
245BA017 KN
2
245BA018 KN
Replacing the Skirt
1
2
245BA019 KN
3
4
245BA020 KN
3
