Stihl FR 350 User Manual

14
English
FR 350, FR 450, FR 480

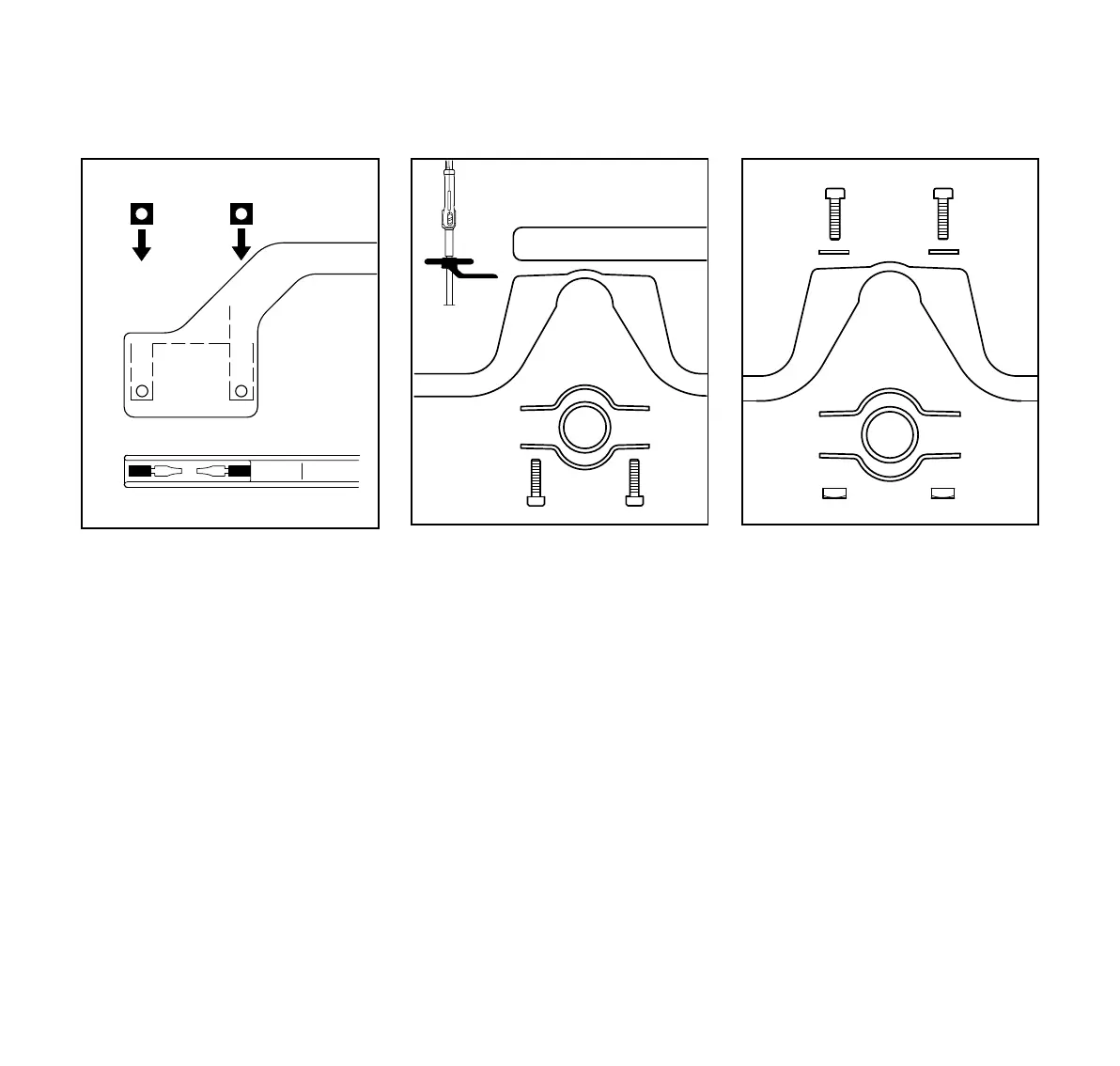

Mounting the Loop Handle with
Barrier Bar
: Insert the square nuts (1) in the
barrier bar (2) – line up the holes.
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place barrier
bar (2) in position as shown – line up
the holes.
: Insert the screws (7) in the holes
and screw them into the barrier bar
as far as stop.
: Go to "Securing the Loop Handle".
Mounting the Loop Handle
without Barrier Bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit the washers (7) on the screws
(8), Insert the screws in the holes
and screw on the square nuts (1) as
far as stop.
: Go to "Securing the Loop Handle".
1
1
2
2
11
389BA001 KN
77
6
3
4
2
5
265BA025 KN
8
8
1
4
5
7
1
7
6
3
265BA026 KN
