23FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R

English / USA

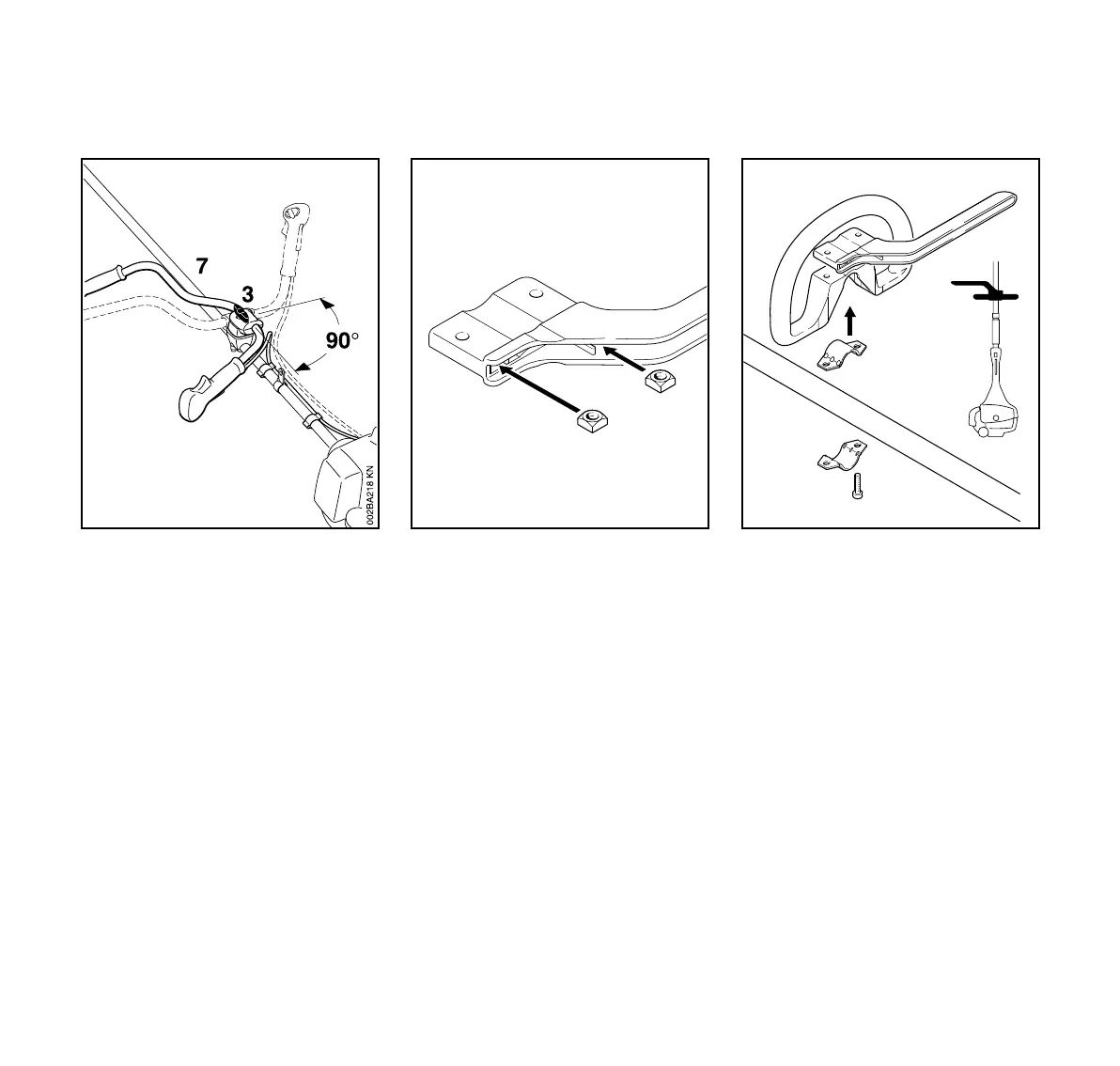

Swiveling the Handlebar

Transport position:

: Release the wing screw (3) and

unscrew it until the handlebar (7)

can be turned clockwise.

: Turn the handlebar 90° and then

swing the handles down.

: Tighten down the wing screw firmly.

Working position:

: Reverse the sequence described

above to swing the handles up

and turn the handlebar counter-

clockwise.

Loop Handle with Barrier Bar

: Insert square nuts (1) in the barrier

bar (2).

: Line up the holes.

: Place the clamp (3) in the loop

handle (4) and position them both

against the drive tube (5).

: Fit the clamp (6) and place the

barrier bar (2) in position.

: Note correct position!

: Line up the holes.

: Insert screws (7) in holes and screw

them into the barrier bar as far as

stop.

: Go to “Securing the loop handle”.

Mounting the Loop Handle

002BA098 KN

002BA099 KN
