Stihl FS 120 User Manual

34
English / USA
FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R

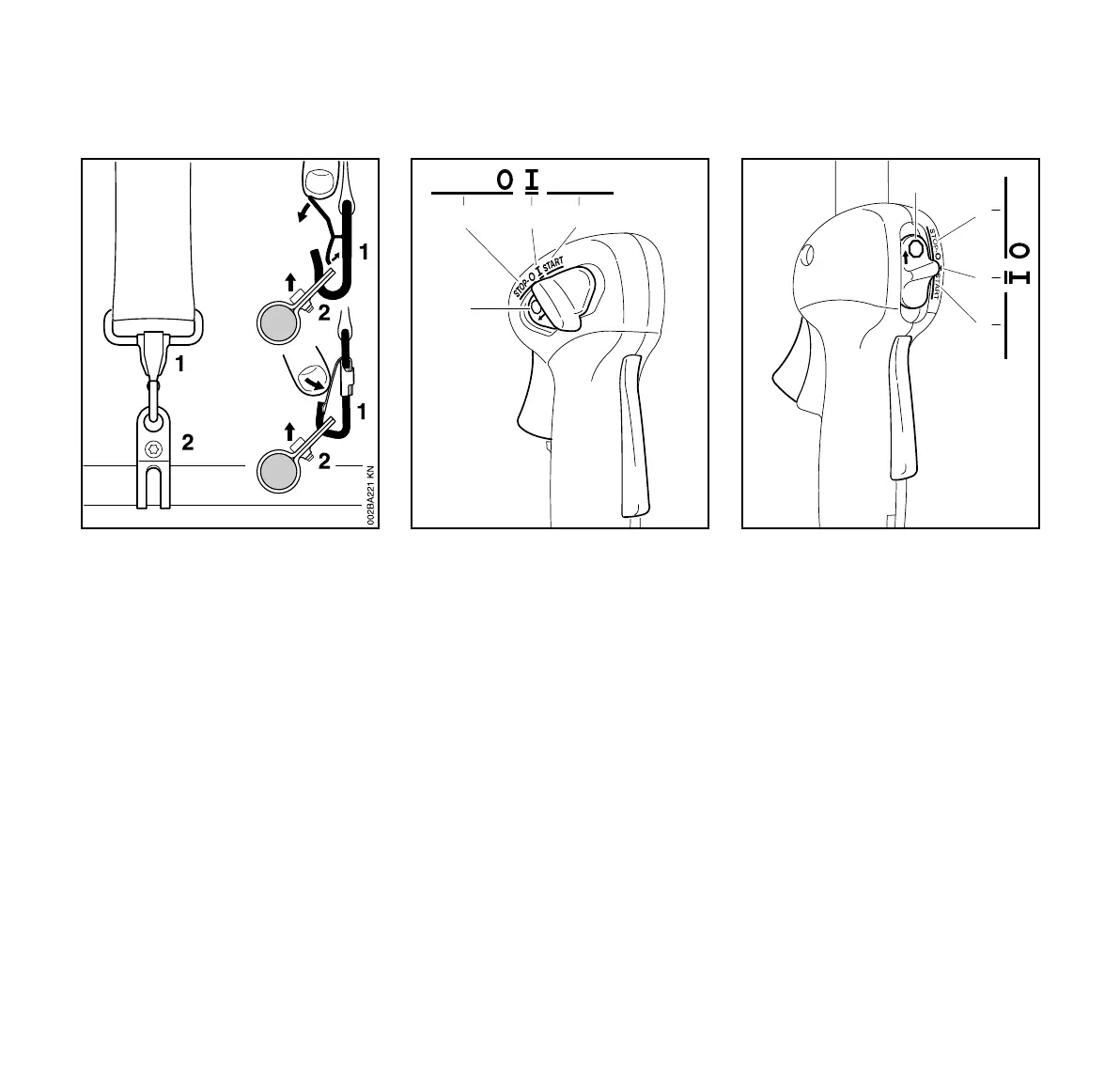

Detaching the Unit from the
Shoulder Strap
: Press the bar on the spring hook (1)
and pull the carrying ring (2) out of
the hook.
Controls
Control handle on bike handle
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Control handle on drive tube
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Positions of slide control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) - the ignition is switched on,
the engine can start
Starting / Stopping the
Engine
3
STOP
56
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
