Stihl FS 120 User Manual

47FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R
English / USA

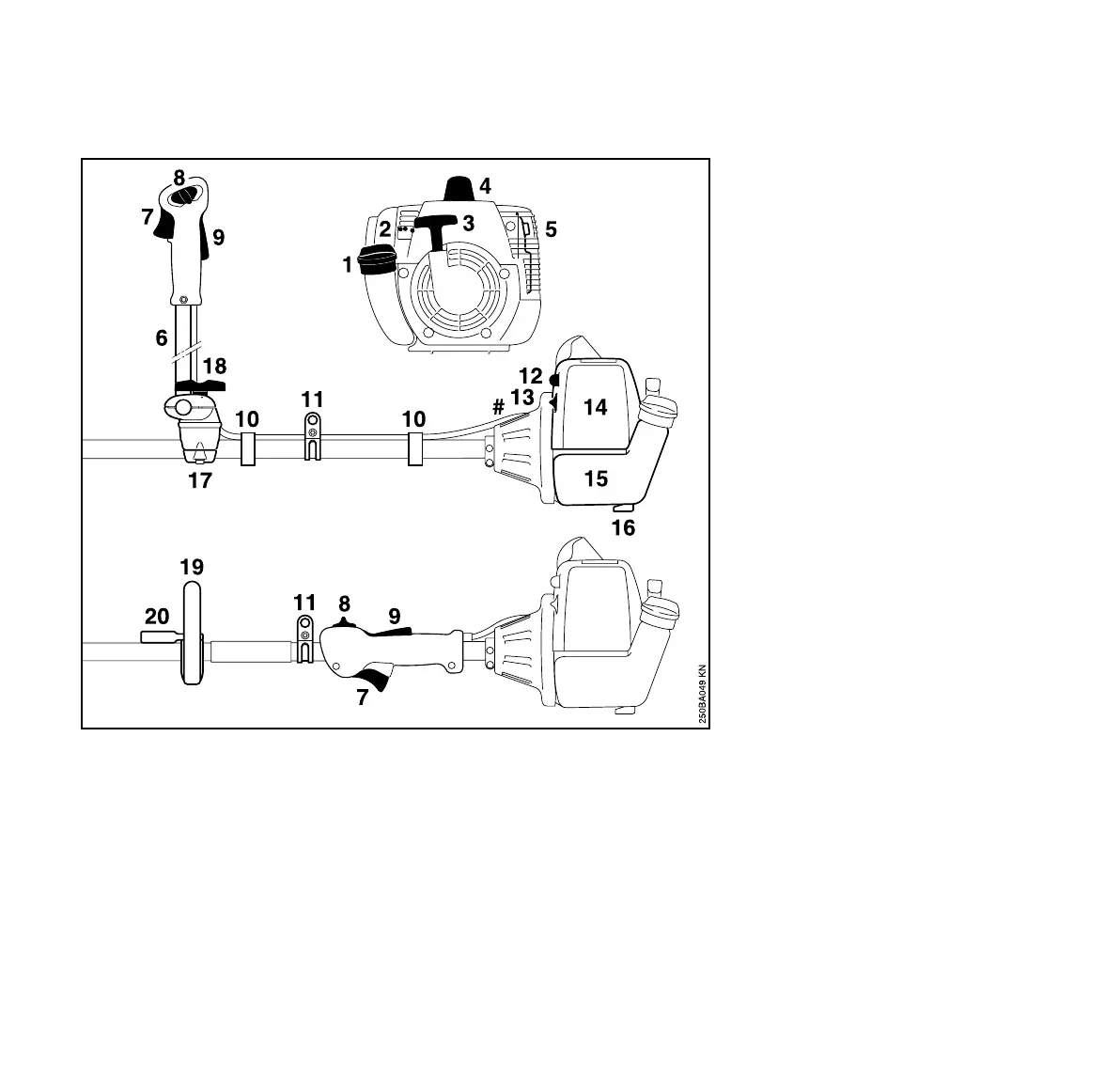

1= Fuel Filler Cap
2= Carburetor adjusting screws
3= Starter Grip
4= Spark Plug Boot
5= Muffler
(with spark arresting screen*)
6= Bike Handle
7= Throttle Trigger
8= Slide Control
9= Throttle Trigger Interlock
10= Throttle Cable Retainer
11= Carrying Ring
12= Fuel Pump
13= Rotary Choke Knob
14= Air Filter Cover
15= Fuel Tank
16= Machine Support
17= Handle Support
18= Wing Screw
19= Loop Handle
20= Barrier Bar
# Serial number
* see "Guide to Using this Manual"
Parts and Controls

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
