Stihl FS 260 C User Manual

FS 260 C, FS 360 C
English
21

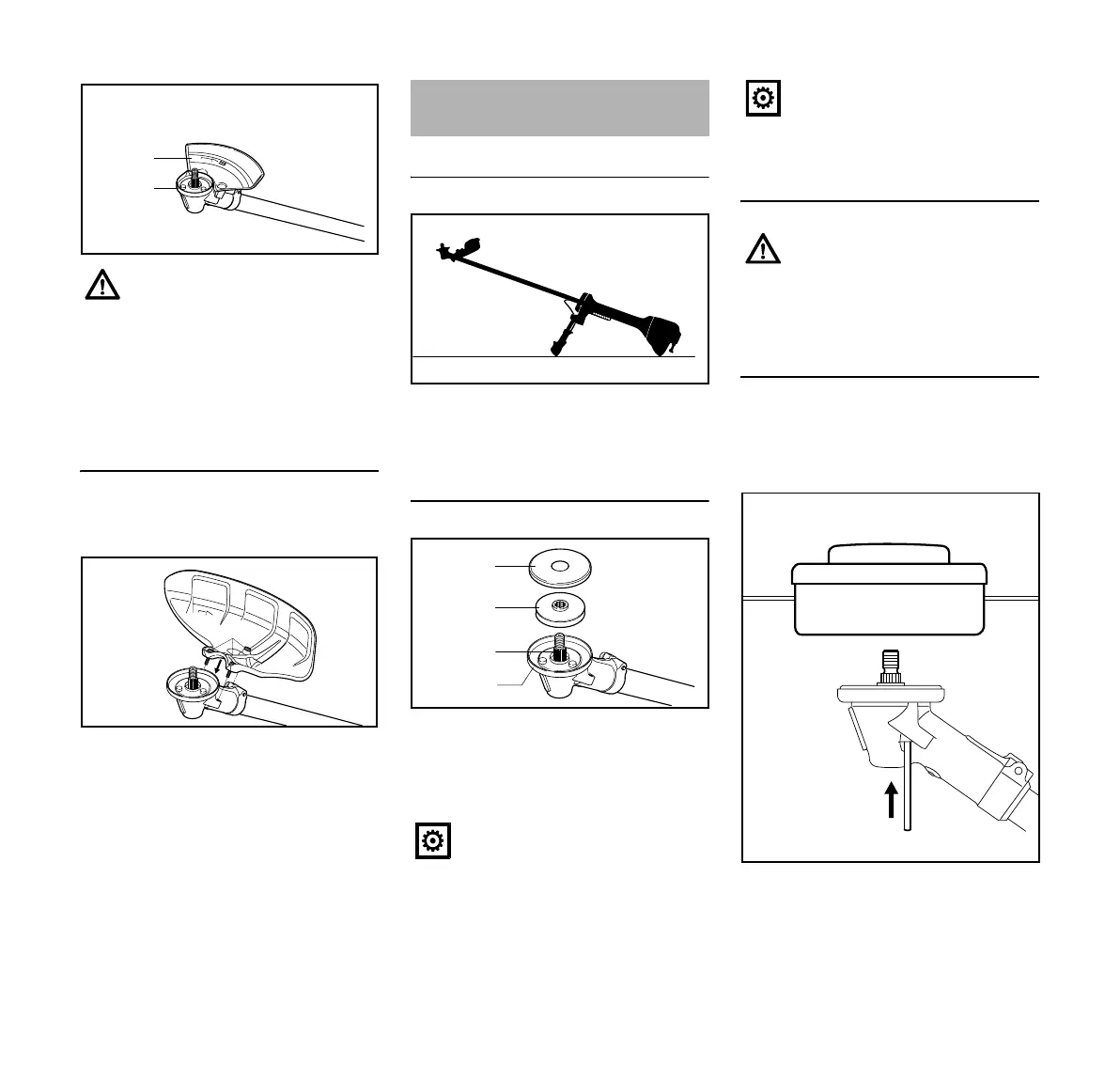

Mounting the deflector
Deflectors (1-3) are attached to the
gearbox in the same manner.
N Set the deflector on the gearbox (5),
N screw in and tighten the screws (6)
Preparing the machine
N Lay down the machine so that the
mount for the cutting attachment
faces upward
Attaching the thrust plate
N Push the thrust plate (1) and guard
washer (2) onto the shaft (3)
The machine is equipped at the factory
with a guard ring (4) for mowing tools.
Mounting the cutting attachment
Mounting the mowing heads
STIHL SuperCut, STIHL AutoCut,
STIHL TrimCut, STIHL PolyCut
N Use the guard ring for mowing tools
N Attach the deflector for mowing
heads
N Block the shaft
N Turn the mowing head
counterclockwise onto the shaft (1)
and tighten
Limit stop (3) is approved only for
circular saw blades, thus limit
stop (3) must be attached and
guard ring (4) replaced before
attaching a circular saw blade,
see "Mounting the cutting
attachment" / "Mounting circular
saw blades".
3
002BA433 KN
4
6
5
002BA434 KN
Mounting the Cutting
Attachment
The thrust plate (1) on the
gearbox is required for securing
all cutting attachments.
002BA406 KN
002BA407 KN
1
2
3
4
The guard washer (2) on the
gearbox is required for securing
all cutting attachments with the
exception of circular saw blades.
Use the appropriate deflector for
the cutting attachment – see
"Mounting the deflector".
1
002BA408 KN
